XLite® T2 Interlocking Screws
Intended Use:Secure locking of intramedullary nails in facture fixation.
Profile: Core Dia 4mm for 5mm screw, 5.5mm for 6.5 mm screw.
Screw Diameter: 6.5mm for top most 3 proximal holes.
Size: 5mm x 28mm To 60mm – 2mm diff. (8mm Head) Total length
5mm x 65mm To 80mm – 5mm diff. (8mm Head) Total length
6.5mm x 25mm To 100mm – 5mm diff. (8mm Head) Total length

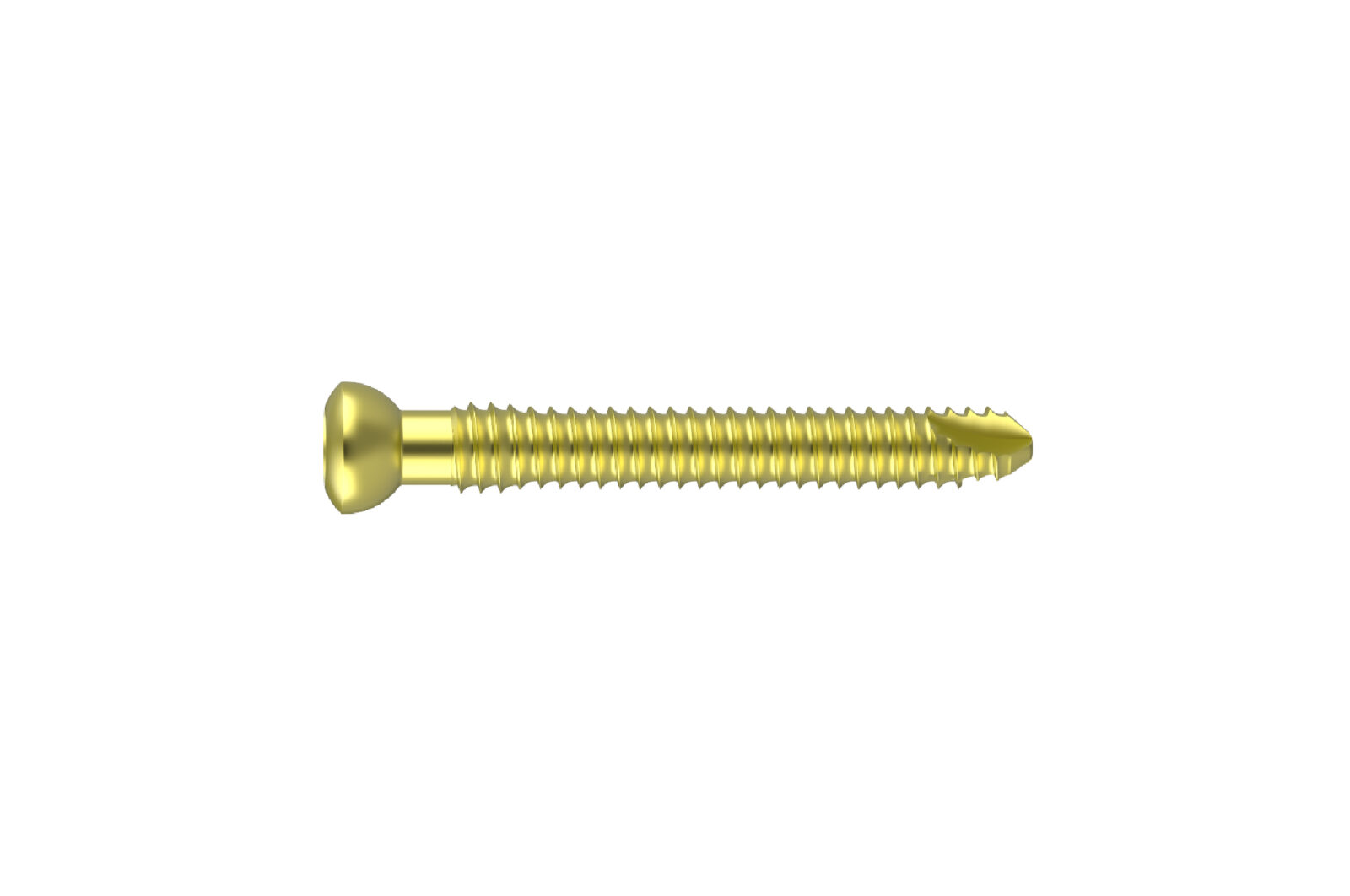

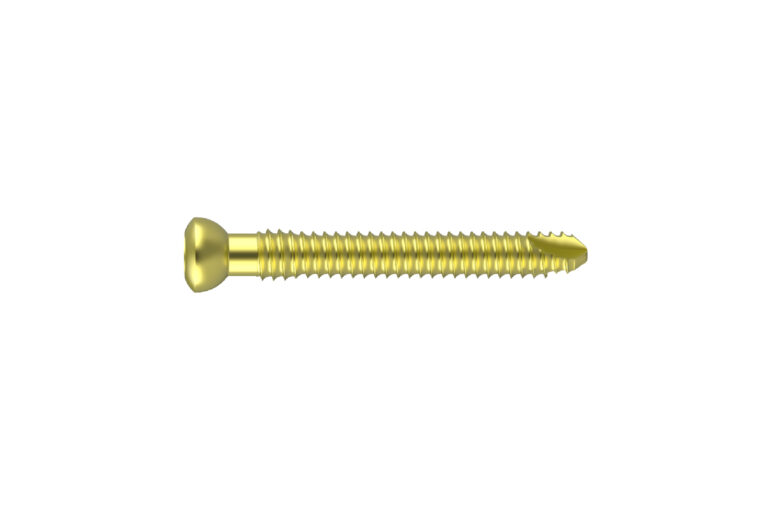

5mm T2 Interlocking Screw
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
1822.528 To 1822.580
|
|
Titanium
|
1822.T528 To 1822.T580
|

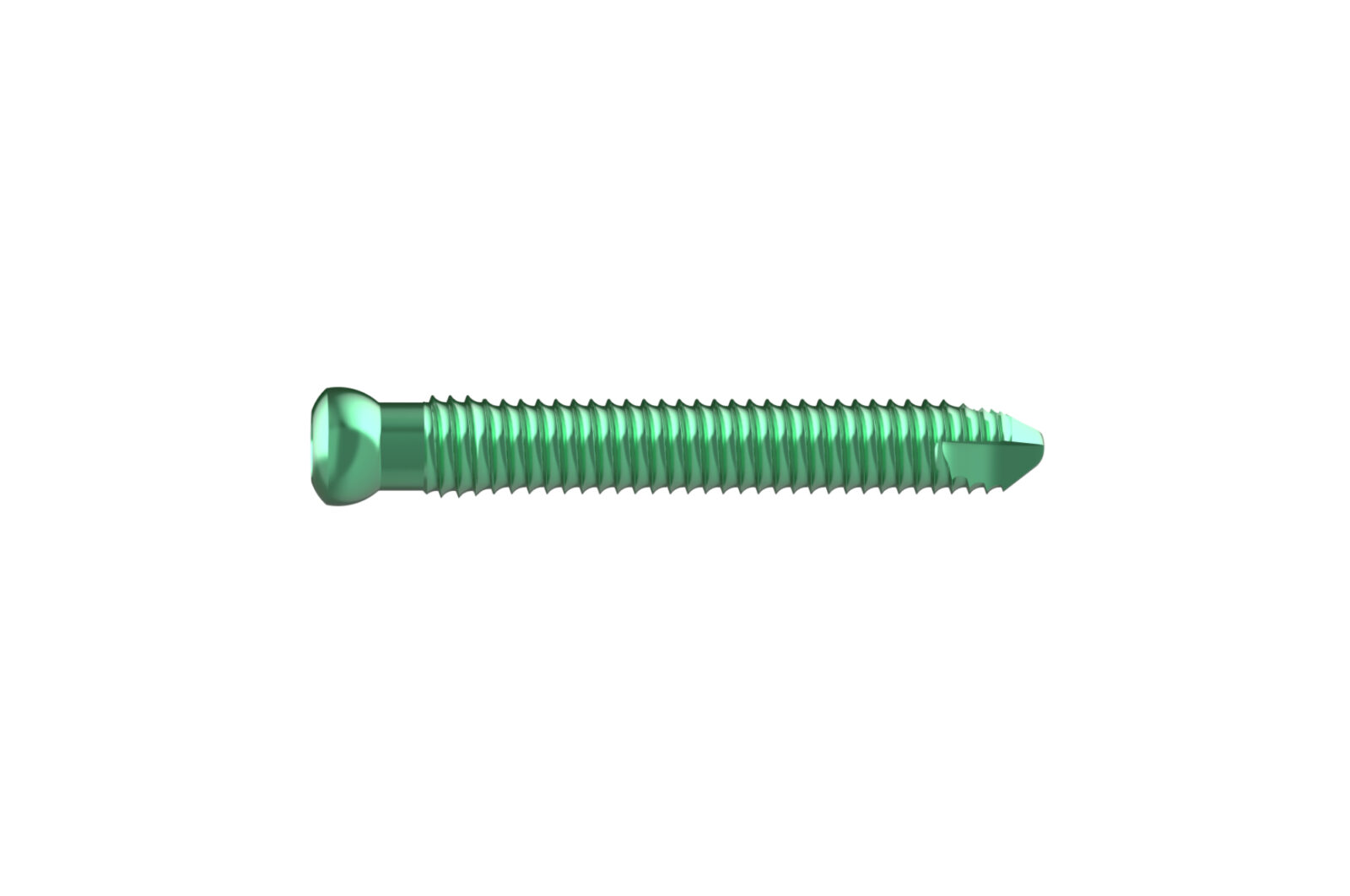

6.5mm T2 Interlocking Screw
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
1823.025 To 1823.080
|
|
Titanium
|
1823.T025 To 1823.T080
|
INTERLOCKING SCREWS
- Twin thread technology enhance cortical purchase near the screw head.
- Reduce loosening under functional load
