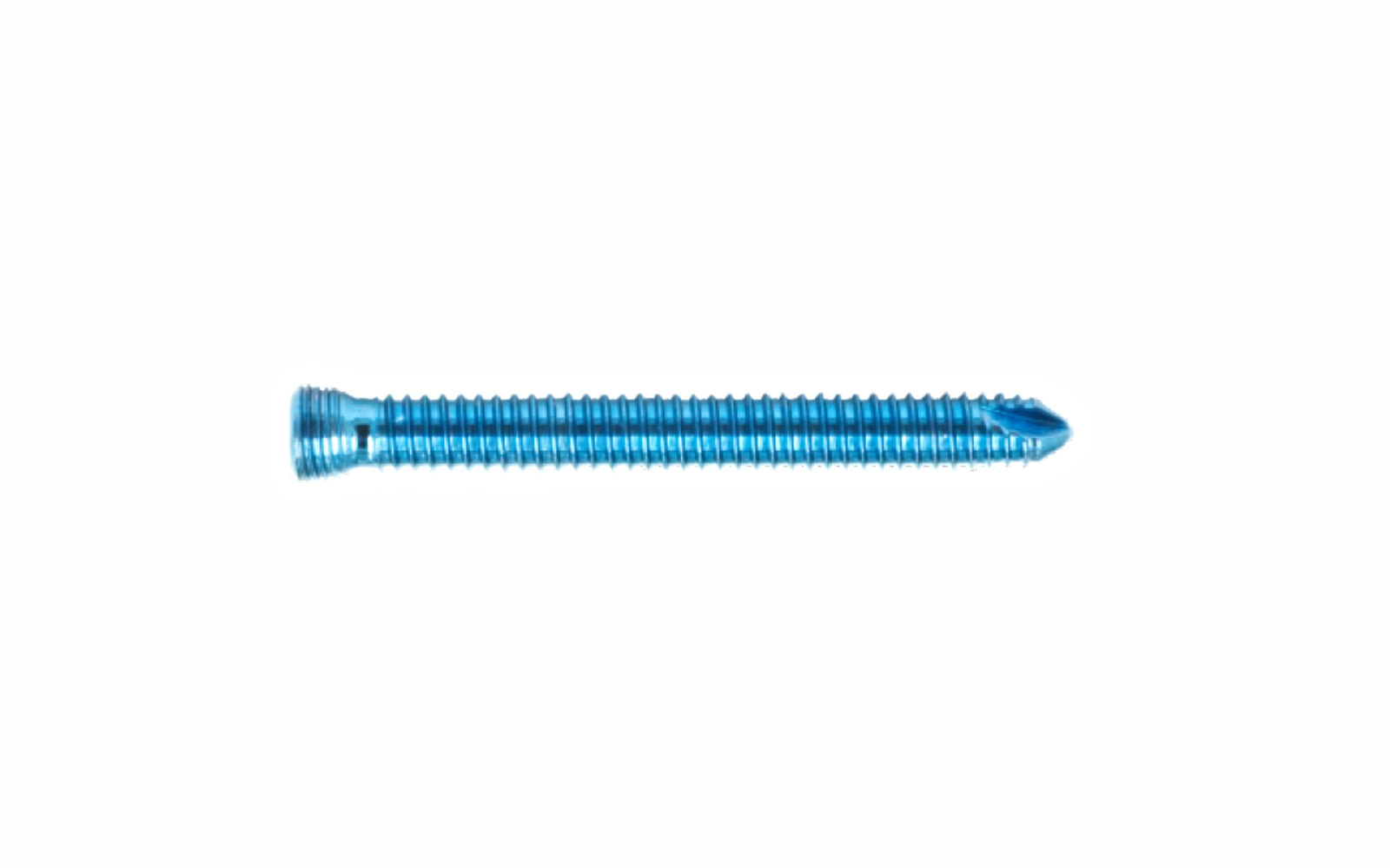

Cortical Locking screws ( Multi Angle ) 2.7mm

Intended Use: For Internal Fixation with Locking Plates
Profile: Core dia 2.2mm, 36 TPI, 2mm Hex., Self Tapping, 0.3 Thread Pitch
Material: SS 316L & Titanium

Size	S.S. Ref.	Tita. Ref.
10mm	1818.S10	1818.T10
12mm	1818.S12	1818.T12
14mm	1818.S14	1818.T14
16mm	1818.S16	1818.T16
18mm	1818.S18	1818.T18
20mm	1818.S20	1818.T20
22mm	1818.S22	1818.T22
24mm	1818.S24	1818.T24
26mm	1818.S26	1818.T26
28mm	1818.S28	1818.T28
30mm	1818.S30	1818.T30
