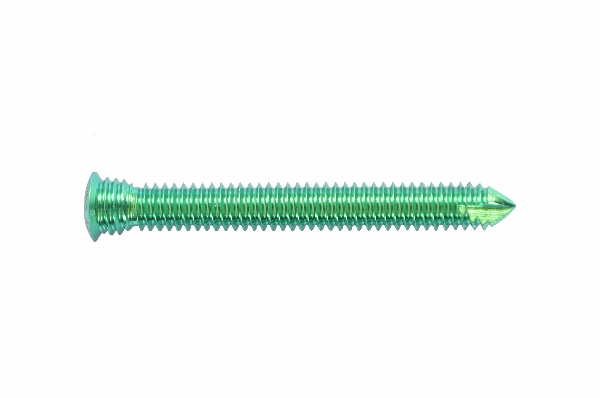

Cortical Locking Screw - 5mm

Intended Use: For Internal Condyler Fixation with Locking Plates
Profile: Core Dia. 4mm, 24 TPI,
3.5mm Hex., 1mm Thread Pitch
Material: SS 316L & Titanium

Size	S.S. Ref.	Tita. Ref.
18mm	196.518	196.T518
20mm	196.520	196.T520
22mm	196.522	196.T522
24mm	196.524	196.T524
26mm	196.526	196.T526
28mm	196.528	196.T528
30mm	196.530	196.T530
32mm	196.532	196.T532
34mm	196.534	196.T534
36mm	196.536	196.T536
38mm	196.538	196.T538
40mm	196.540	196.T540
42mm	196.542	196.T542
44mm	196.544	196.T544
46mm	196.546	196.T546
48mm	196.548	196.T548
50mm	196.550	196.T550
55mm	196.555	196.T555
60mm	196.560	196.T560
70mm	196.570	196.T570
75mm	196.575	196.T575
80mm	196.580	196.T580
85mm	196.585	196.T585
90mm	196.590	196.T590
