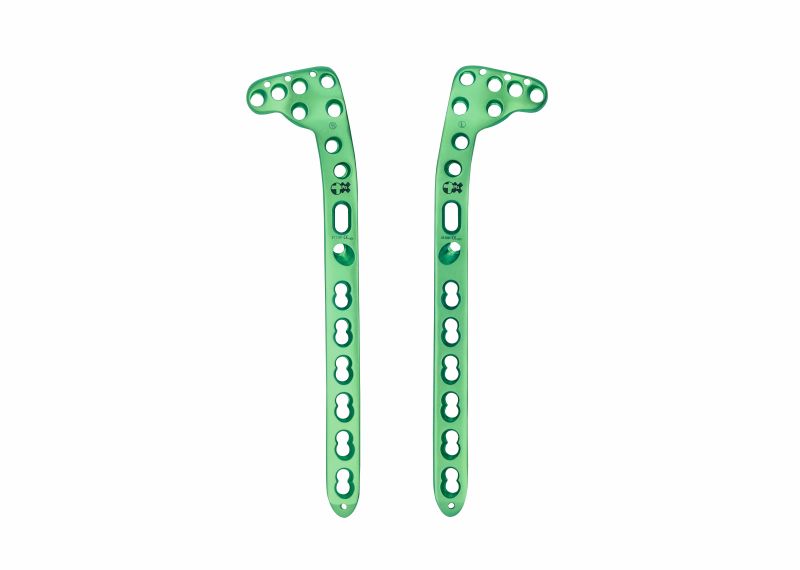

Peri - Articular Proximal Tibia Locking Plates

Intended Use: For Internal Fixation of Proximal Lateral Tibial Condyle
Profile:13mm x 4mm, 3.5/4mm Screw Compatible, 0.8mm thread pitch
Material: SS 316L & Titanium

Size	Length	S.S. Ref.	Tita. Ref.
2 Holes	105mm	2048.02(L/R)	2048.T02(L/R)
3 Holes	118mm	2048.03(L/R)	2048.T03(L/R)
4 Holes	131mm	2048.04(L/R)	2048.T04(L/R)
5 Holes	144mm	2048.05(L/R)	2048.T05(L/R)
6 Holes	157mm	2048.06(L/R)	2048.T06(L/R)
7 Holes	170mm	2048.07(L/R)	2048.T07(L/R)
8 Holes	183mm	2048.08(L/R)	2048.T08(L/R)
9 Holes	196mm	2048.09(L/R)	2048.T09(L/R)
10 Holes	209mm	2048.10(L/R)	2048.T10(L/R)
12 Holes	235mm	2048.12(L/R)	2048.T12(L/R)
