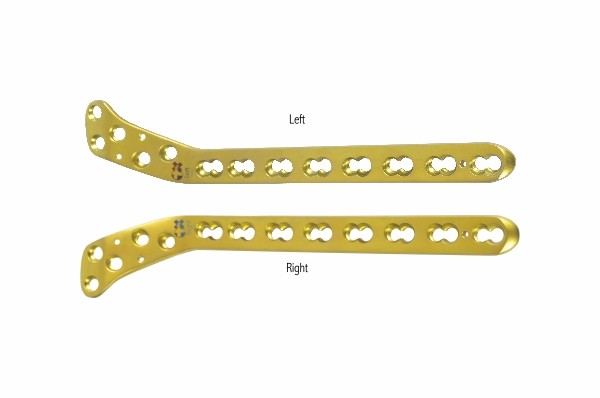

Lateral Tibial Head Locking Plates - 5mm
Intended Use: For Internal Fixation of Proximal Lateral Tibial Condyle
Profile:16mm x 4.5mm, 4.5/5mm Screw compatible,
1mm thread pitch Compatible, 1mm Thread Pitch
Material: SS 316L & Titanium
|
Size
|
Length
|
S.S. Ref.
|
Tita. Ref.
|
|---|---|---|---|
|
4 Holes
|
118mm
|
194.104(L/R)
|
194.T104(L/R)
|
|
5 Holes
|
136mm
|
194.105(L/R)
|
194.T105(L/R)
|
|
6 Holes
|
154mm
|
194.106(L/R)
|
194.T106(L/R)
|
|
7 Holes
|
172mm
|
194.107(L/R)
|
194.T107(L/R)
|
|
8 Holes
|
190mm
|
194.108(L/R)
|
194.T108(L/R)
|
|
9 Holes
|
208mm
|
194.109(L/R)
|
194.T109(L/R)
|
|
10 Holes
|
226mm
|
194.110(L/R)
|
194.T110(L/R)
|
|
11 Holes
|
244mm
|
194.111(L/R)
|
194.T111(L/R)
|
|
12 Holes
|
262mm
|
194.112(L/R)
|
194.T112(L/R)
|
|
14 Holes
|
300mm
|
194.114(L/R)
|
194.T114(L/R)
|
|
16 Holes
|
336mm
|
194.116(L/R)
|
194.T116(L/R)
|
