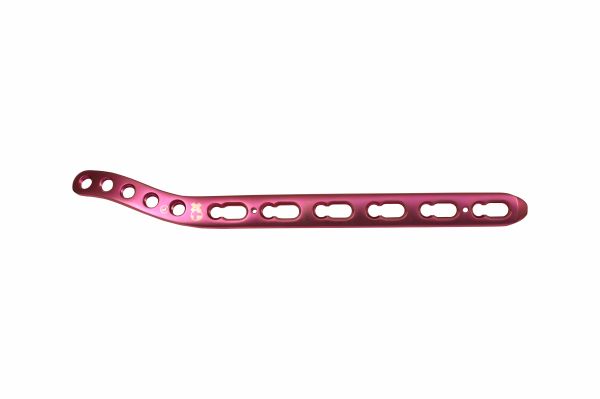

Extra - Articular Distal Humerus Locking Plates
Intended Use: For Internal Fixation of Distal Humerus Condyle
Profile: 12mm x 3.5mm, 5 Distal Holes – 3mm Screw Compatible, Shaft Holes 3.5/4mm Screw Compatible, 0.8mm thread pitch
Material: SS 316L & Titanium
|
Size
|
Length
|
S.S. Ref.
|
Tita. Ref.
|
|---|---|---|---|
|
4 Holes
|
123mm
|
2053.04(L/R)
|
2053.T04(L/R)
|
|
5 Holes
|
142mm
|
2053.05(L/R)
|
2053.T05(L/R)
|
|
6 Holes
|
157mm
|
2053.06(L/R)
|
2053.T06(L/R)
|
|
7 Holes
|
177mm
|
2053.07(L/R)
|
2053.T07(L/R)
|
|
8 Holes
|
195mm
|
2053.08(L/R)
|
2053.T08(L/R)
|
|
9 Holes
|
213mm
|
2053.09(L/R)
|
2053.T09(L/R)
|
|
10 Holes
|
230mm
|
2053.10(L/R)
|
2053.T10(L/R)
|
|
12 Holes
|
267mm
|
2053.12(L/R)
|
2053.T12(L/R)
|
