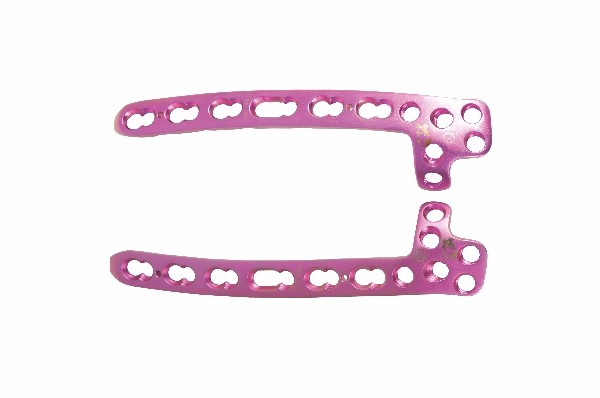

Distal Humerus Locking Plates Dorsolateral With Support

Intended Use: For Internal Fixation of Distal Humerus Condyle
Profile: 10mm x 3mm, 6 Distal Holes – 3mm Screw compatible,
Shaft Holes 3.5/4mm Screw Compatible, 0.8mm thread pitch
Material: SS 316L & Titanium

Size	Length	S.S. Ref.	Tita. Ref.
4 Holes	83mm	2018.140(L/R)	2018.T140(L/R)
5 Holes	96mm	2018.150(L/R)	2018.T150(L/R)
6 Holes	108mm	2018.160(L/R)	2018.T160(L/R)
7 Holes	123mm	2018.170(L/R)	2018.T170(L/R)
8 Holes	134mm	2018.180(L/R)	2018.T180(L/R)
9 Holes	146mm	2018.190(L/R)	2018.T190(L/R)
10 Holes	159mm	2018.110(L/R)	2018.T110(L/R)
12 Holes	185mm	2018.112(L/R)	2018.T112(L/R)
