Mini Plating System - 2mm
Titanium Plates - without Bar
Material: Titanium Grade II & S.S. 316 L
|
Reference
|
Size
|
|---|---|
|
051.202
|
2 Holes
|
|
051.203
|
3 Holes
|
|
051.204
|
4 Holes
|
|
051.205
|
5 Holes
|
|
051.206
|
6 Holes
|
|
051.207
|
7 Holes
|
|
051.208
|
8 Holes
|
|
051.2010
|
10 Holes
|
|
051.2012
|
12 Holes
|
|
051.2016
|
16 Holes
|
|
051.2020
|
20 Holes
|
|
051.2030
|
30 Holes
|
|
051.2050
|
50 Holes
|
Titanium Plates - with Bar
Material: Titanium Grade II & S.S. 316 L
|
Reference
|
Size
|
|---|---|
|
052.202
|
2 Holes
|
|
052.203
|
3 Holes
|
|
052.204
|
4 Holes
|
|
052.205
|
5 Holes
|
|
052.206
|
6 Holes
|
|
052.207
|
7 Holes
|
|
052.208
|
8 Holes
|

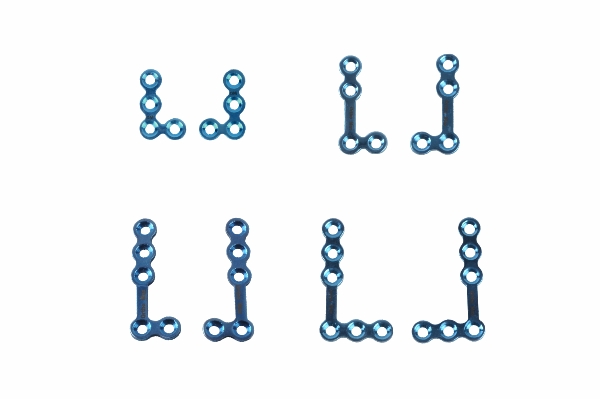

Titanium "L" Shape plate 90ᵒ
Profile Thickness: 1 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
053.20SR
|
Small Right
|
|
053.20SL
|
Small Left
|
Profile Thickness: 1 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
053.20BR
|
Big Right
|
|
053.20BL
|
Big Left
|
Profile Thickness: 1 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
053.20ER
|
XB 3+2H Right
|
|
053.20EL
|
XB 3+2H Left
|
Profile Thickness: 1 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
053.20XR
|
XB 3+3H Right
|
|
053.20XL
|
XB 3+3H Left
|

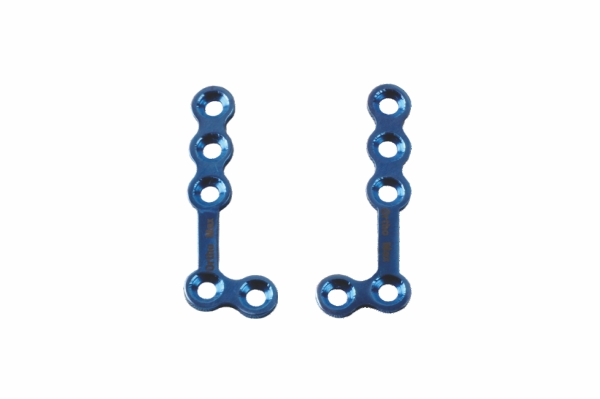

Titanium L Shape plate 100ᵒ
Profile Thickness: 0.8 mm
Material: Titanium Grade II
|
Reference
|
Size
|
|---|---|
|
047.20ER
|
XB 3+2H - Right
|
|
047.20EL
|
XB 3+2H - Left
|

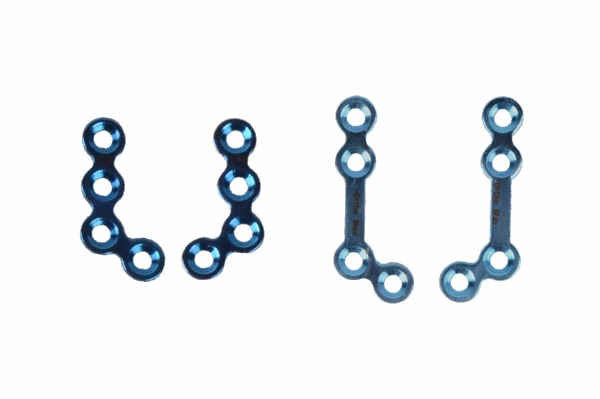

Titanium L Shape plate 120ᵒ
Profile Thickness: 1 mm
Material: Titanium Grade II & S.S. 316L
Small
|
Reference
|
Size
|
|---|---|
|
054.20SR
|
Small - Right
|
|
054.20SL
|
Small - Left
|
Big
|
Reference
|
Size
|
|---|---|
|
054.20BR
|
Big - Right
|
|
054.20BL
|
Big - Left
|

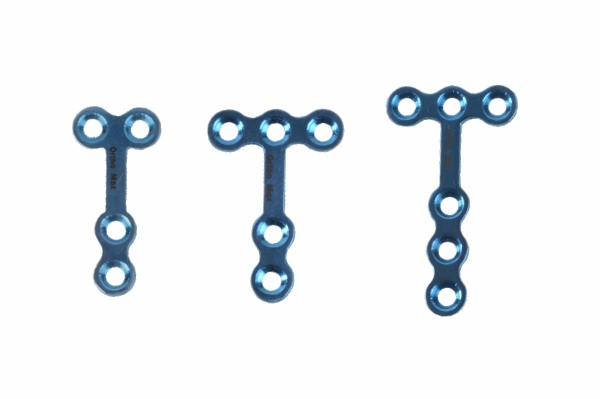

Titanium T shape Plates
Profile Thickness: 1 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
055.20S
|
Small
|
|
054.20B
|
Big
|
|
054.20X
|
Extra Big
|

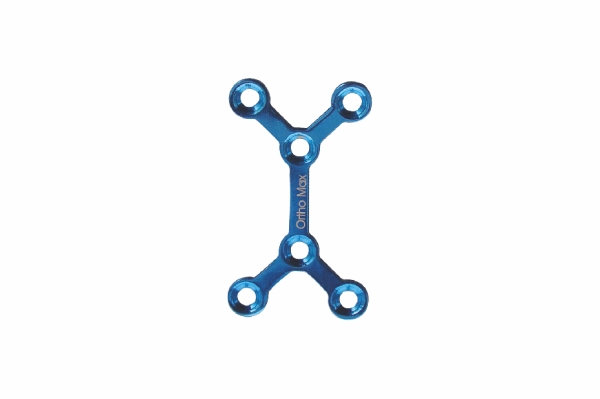

Titanium Double Y shape Plates
Profile Thickness: 1 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
058.200
|
6 Holes
|

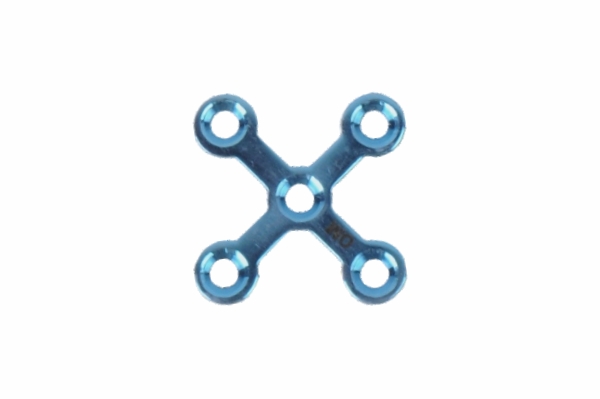

Titanium X shape Plates
Profile Thickness: 0.8 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
|---|
|
062.200
|

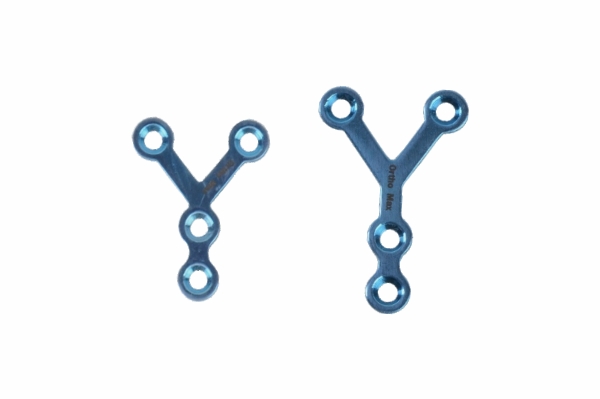

Titanium Y shape Plates
Profile Thickness: 1 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
057.20S
|
Small
|
|
057.20B
|
Big
|

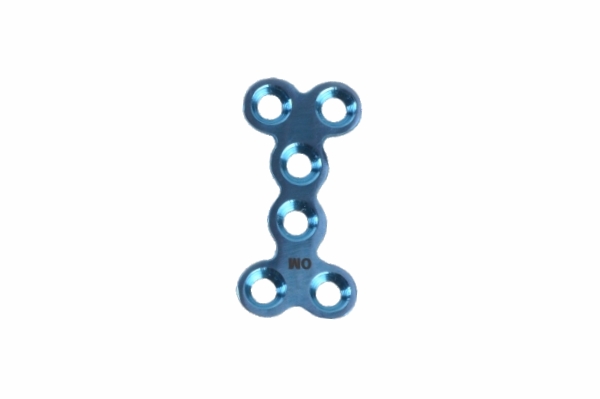

Titanium I shape Plates
Profile Thickness: 1 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
|---|
|
056.200
|

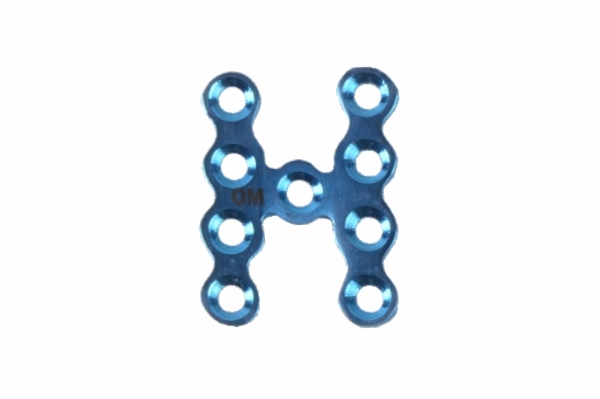

Titanium H shape Plates
Profile Thickness: 1 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
|---|
|
059.200
|

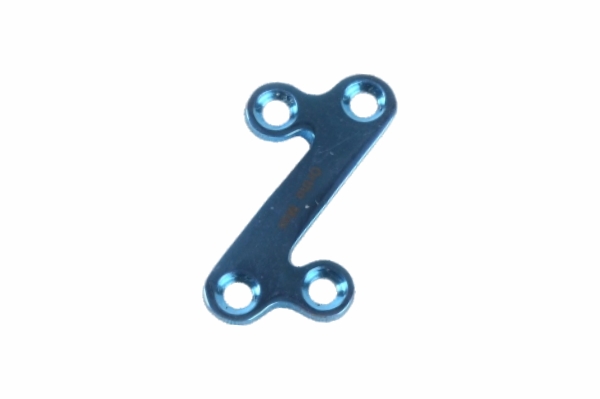

Titanium Z shape Plates
Profile Thickness: 1 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
|---|
|
063.200
|

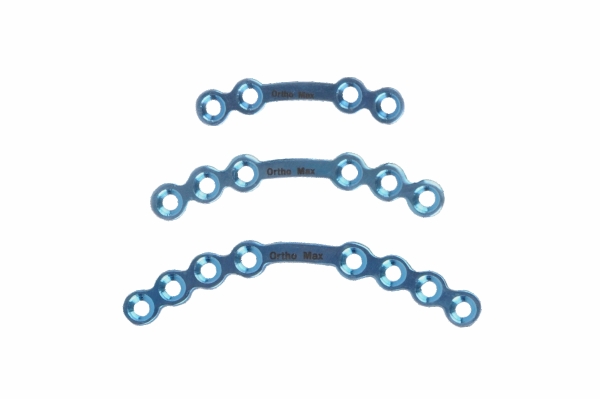

Titanium Orbita Plates with bar
Profile Thickness: 1 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
064.204
|
4 Holes
|
|
064.206
|
6 Holes
|
|
064.208
|
8 Holes
|

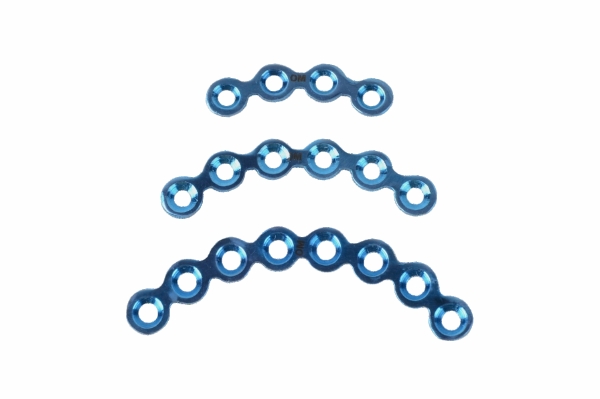

Titanium Orbita Plates without bar
Profile Thickness: 1 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
065.204
|
4 Holes
|
|
065.206
|
6 Holes
|
|
065.208
|
8 Holes
|

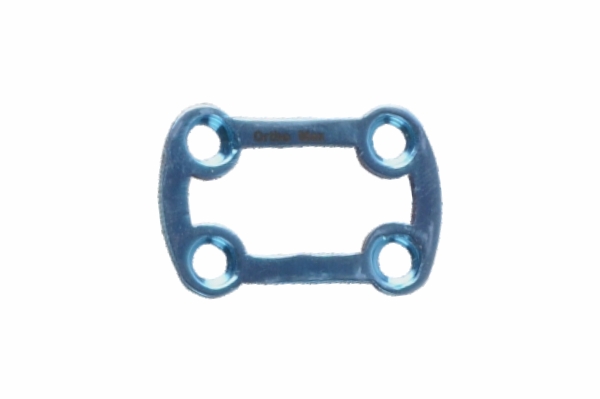

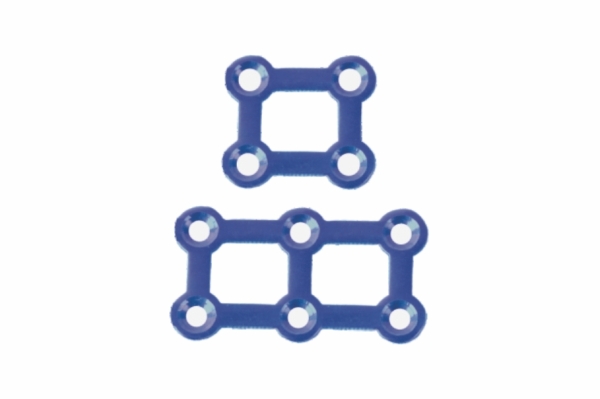

Titanium Square Shape Plates
Profile Thickness: 1 mm
Material: Titanium Grade II
|
Reference
|
Size
|
|---|---|
|
046.2022
|
2 X 2 Holes
|
|
046.2023
|
2 X 3 Holes
|

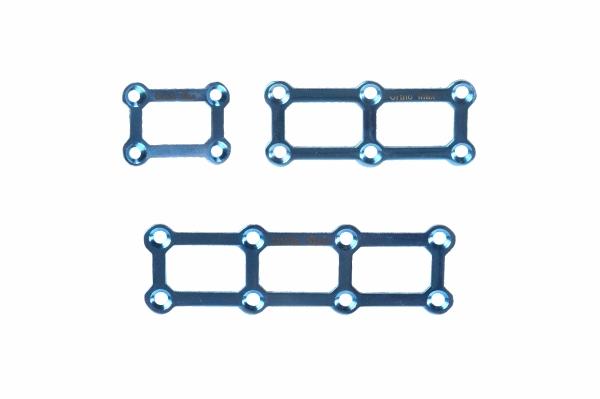

Titanium 3D Plates
Profile Thickness: 1 mm
Material: Titanium Grade II
|
Reference
|
Size
|
|---|---|
|
066.2022
|
2 X 2 Holes
|
|
066.2023
|
2 X 3 Holes
|
|
066.2024
|
2 X 4 Holes
|

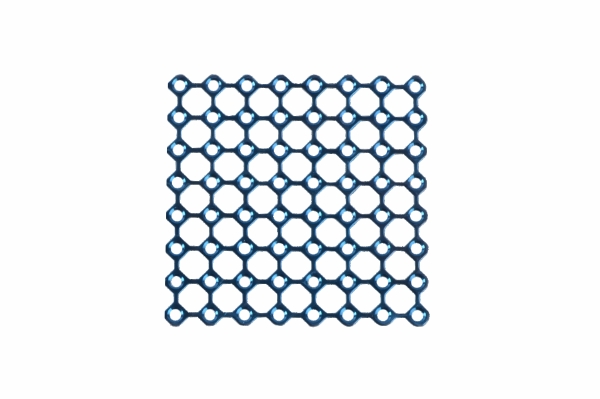

Titanium Grid Plates
Profile Thickness: 1 mm
Material: Titanium Grade II
|
Reference
|
|---|
|
036.200
|

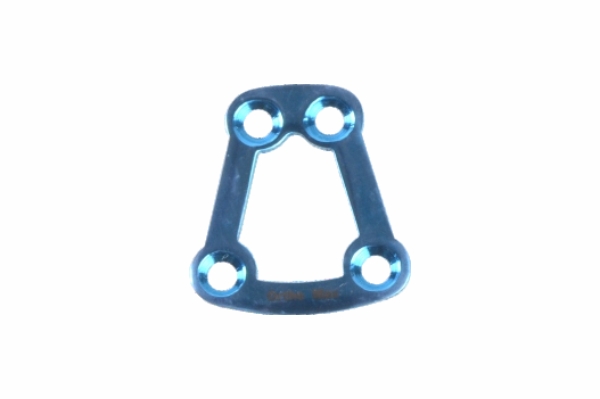

Titanium Trapezoid Condyle Plates
Profile Thickness: 1 mm
Material: Titanium Grade II
|
Reference
|
|---|
|
037.200
|

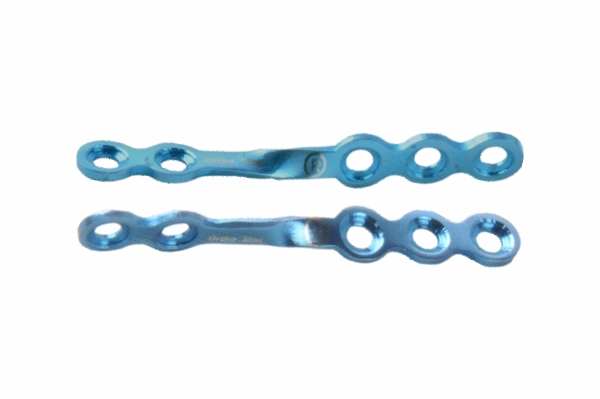

Titanium Twisted Plates
Profile Thickness: 1 mm
Material: Titanium Grade II
|
Reference
|
Size
|
|---|---|
|
038.20L
|
5H Left
|
|
038.20R
|
5H right
|

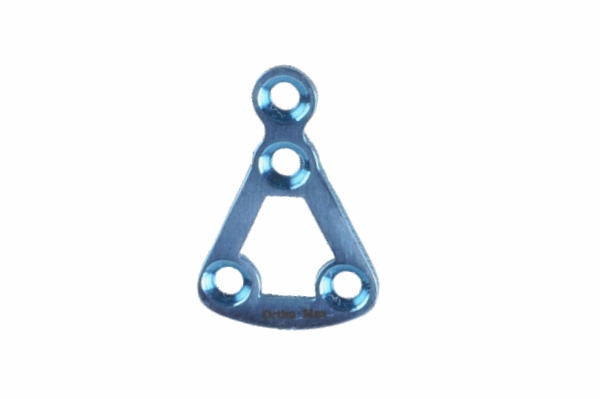

Titanium Delta Plates
Profile Thickness: 1 mm
Material: Titanium Grade II
|
Reference
|
|---|
|
039.200
|
Titanium Sub Y Plates
Profile Thickness: 1 mm
Material: Titanium Grade II
|
Reference
|
Size
|
|---|---|
|
1535.02R
|
Right
|
|
1535.02L
|
Left
|

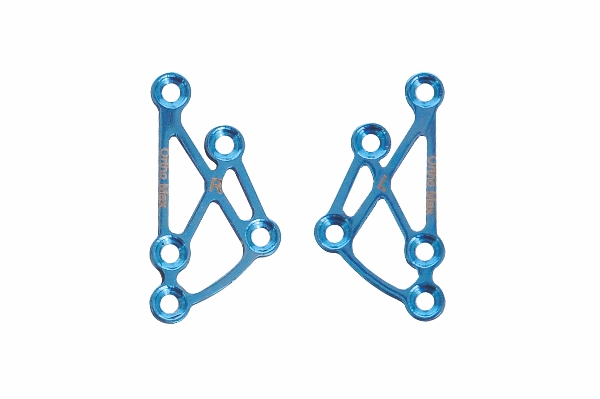

Titanium Trifix Plates
Profile Thickness: 1 mm
Material: Titanium Grade II
|
Reference
|
Size
|
|---|---|
|
1536.02R
|
Right
|
|
1536.02L
|
Left
|

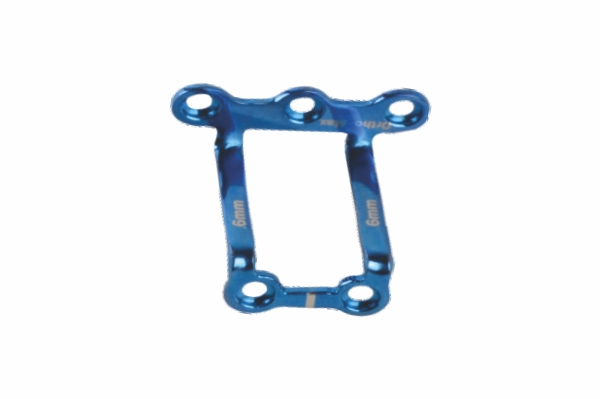

Titanium Chin Plates
Profile Thickness: 1 mm
Material: Titanium Grade II
|
Reference
|
Size
|
|---|---|
|
068.206
|
6 mm Bar
|
|
068.208
|
8 mm Bar
|
|
068.2010
|
10 mm Bar
|
|
068.2012
|
12 mm Bar
|

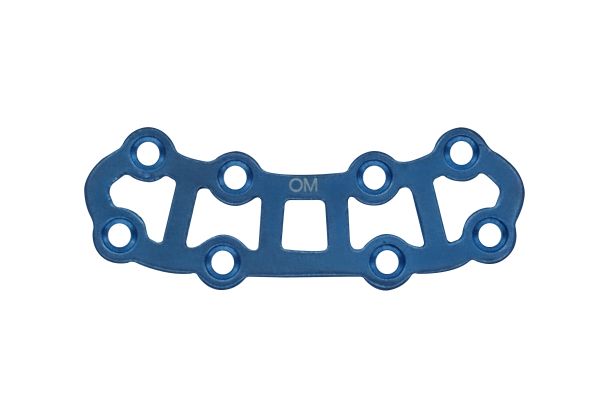

Titanium Strut Plates
Profile Thickness: 1 mm
Material: Titanium Grade II
|
Reference
|
Size
|
|---|---|
|
1545.200
|
-
|
Titanium mesh Plates
Profile Thickness: 0.6 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
078.2011
|
25 X 25 mm
|
|
078.2022
|
50 X 50 mm
|
|
078.2024
|
50 X 100 mm
|
|
078.2026
|
50 X 150 mm
|
|
078.2028
|
50 X 200 mm
|
|
078.2044
|
100 X 100 mm
|
|
078.2046
|
100 X 150 mm
|

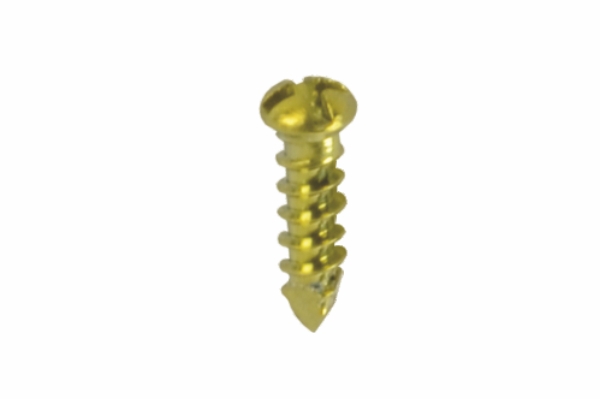

Titanium Screws Cross Drive
Thd Dia.: 2 mm
Drill Size : 1.5 mm
Material: Titanium Grade V
|
Reference
|
Size
|
|---|---|
|
088.205
|
5 mm
|
|
088.206
|
6 mm
|
|
088.207
|
7 mm
|
|
088.208
|
8 mm
|
|
088.209
|
9 mm
|
|
088.2010
|
10 mm
|
|
088.2011
|
11 mm
|
|
088.2012
|
12 mm
|
|
088.2014
|
14 mm
|

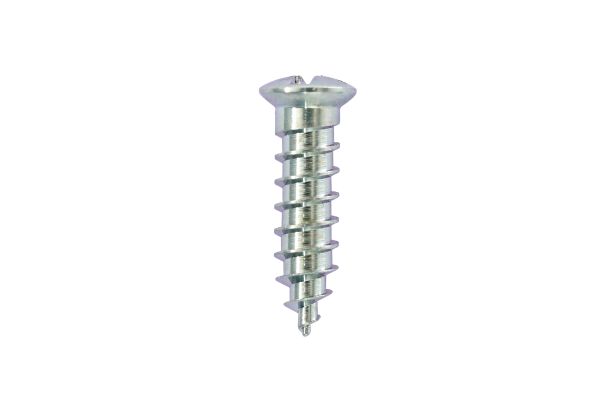

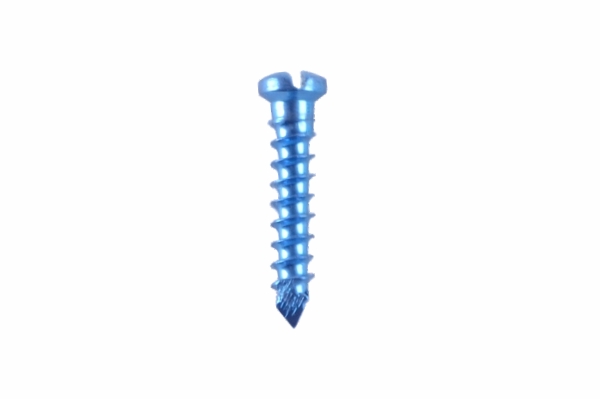

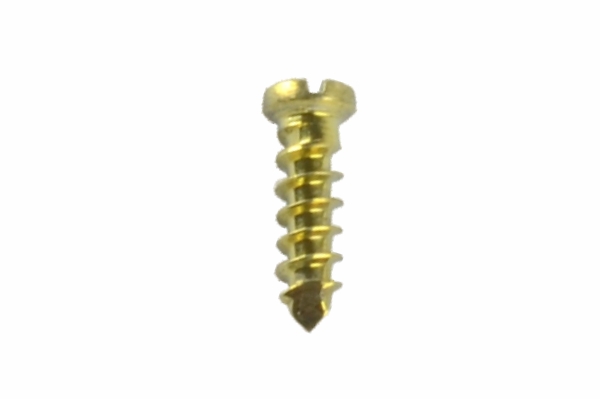

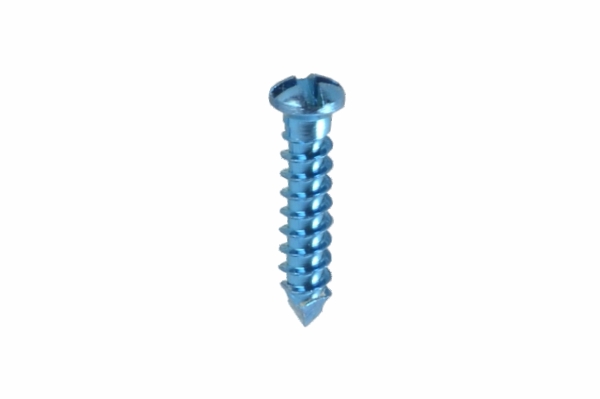

Titanium Screws Slotted
Thd Dia.: 2 mm
Drill Size : 1.5 mm
Material: Titanium Grade V & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
079.205
|
5 mm
|
|
079.206
|
6 mm
|
|
079.207
|
7 mm
|
|
079.208
|
8 mm
|
|
079.209
|
9 mm
|
|
079.2010
|
10 mm
|
|
079.2011
|
11 mm
|
|
079.2012
|
12 mm
|
|
079.2014
|
14 mm
|
Titanium Screws Emergency Cross Drive
Thd Dia.: 2.3 mm
Drill Size : 1.8 mm
Material: Titanium Grade V
|
Reference
|
Size
|
|---|---|
|
089.236
|
6 mm
|
|
089.237
|
7 mm
|
|
089.238
|
8 mm
|
|
089.239
|
9 mm
|
|
089.2310
|
10 mm
|
|
089.2312
|
12 mm
|
Titanium Screws Emergency Slotted
Thd Dia.: 2.3 mm
Drill Size : 1.8 mm
Material: Titanium Grade V & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
082.236
|
6 mm
|
|
082.237
|
7 mm
|
|
082.238
|
8 mm
|
|
082.239
|
9 mm
|
|
082.2310
|
10 mm
|
|
082.2312
|
12 mm
|

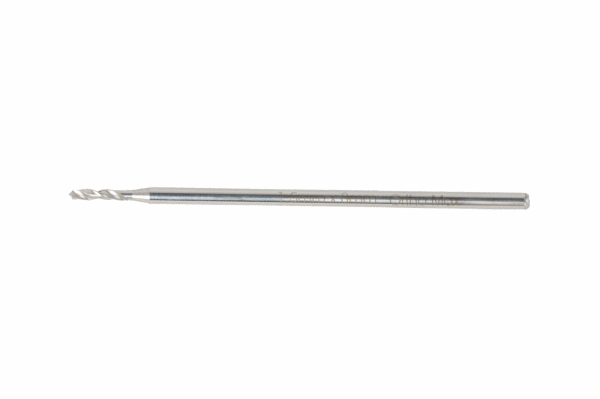

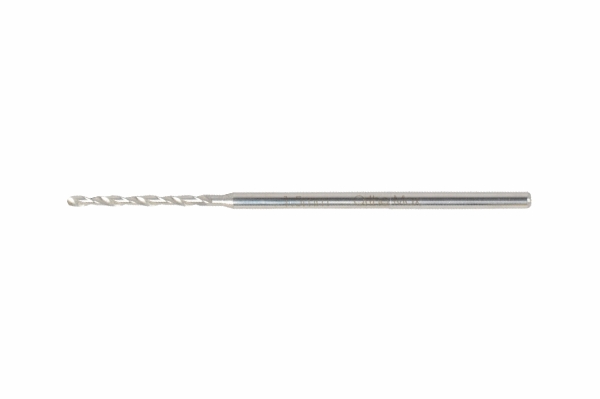

S.S. Drill bits for Micromotors
Material: S.S. 316L
|
Reference
|
Dia x Flute x Length
|
|---|---|
|
411.150
|
1.5mm x 20mm x 65mm
|
|
411.154L
|
1.5mm x 20mm x 100mm
|
S.S. Drill bits for Micromotors - Short Flute
Material: S.S. 316L
|
Reference
|
Dia x Flute x Length
|
|---|---|
|
411.154
|
1.5 mm x 4 mm x 65 mm
|
|
411.156
|
1.5 mm x 6 mm x 65 mm
|
|
411.158
|
1.5 mm x 8 mm x 65 mm
|
|
411.1510
|
1.5 mm x 10 mm x 65 mm
|
|
411.1512
|
1.5 mm x 12 mm x 65 mm
|
