The Ultimate Guide to the Ultra Lock Ezyshape Mandibular Reconstruction System
Mandibular defects resulting from tumor resections, severe trauma, osteoradionecrosis, or ballistic injuries present massive reconstructive challenges for craniomaxillofacial (CMF) surgeons. Restoring the complex, three-dimensional geometry of the jaw while preserving mechanical functions like mastication, deglutition, and speech requires flawless execution and high-performance hardware.
For decades, surgeons had to rely on flat reconstruction plates that demanded exhaustive, manual intraoperative bending. This outdated approach not only prolonged surgical time under anesthesia but also risked hardware fatigue and structural weak points.

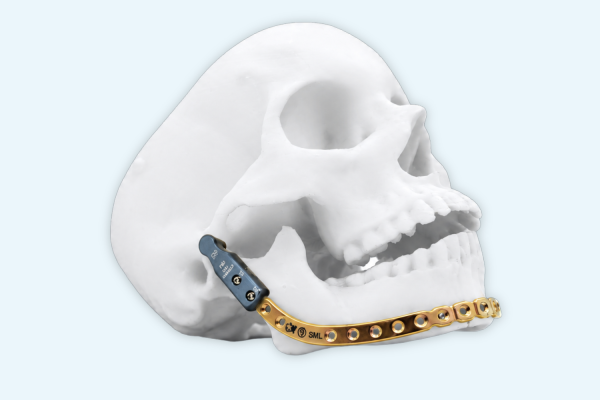

The Ultra Lock Ezyshape Mandibular Reconstruction Plating System by Ortho Max represents a paradigm shift in CMF surgery. This ultimate guide provides a comprehensive clinical and technical breakdown of the system, illustrating how its pre-contoured design, proprietary locking mechanism, and modular component architecture are defining the new standard of care for jaw reconstruction.
Technical Specifications Matrix
To understand the load-bearing capabilities and structural precision of this system, we must first examine the core engineering metrics defined by Ortho Max:
|
Parameter
|
Technical Specification
|
Clinical Relevance
|
|---|---|---|
|
Material Composition
|
Pure Medical Grade Titanium (ISO 5832-1)
|
Exceptional biocompatibility, high strength-to-weight ratio, and MRI compliance.
|
|
Plate Dimensions
|
2.5mm thickness × 8.0mm width profile
|
Provides optimized rigidity to bridge large segmental defects without causing soft-tissue profile bulging.
|
|
Anatomical Sizing
|
Extra Small (XS), Small (S), Medium (M), Large (L)
|
Accommodates distinct structural variations across patient demographics without forcing a one-size-fits-all approach
|
|
Hole Configurations
|
12+4, 14+4, 16+4, and 18+4 Holes (Left & Right variations)
|
Offers extensive fixation points across the mandibular body, angle, and ramus.
|
|
Fixation Hardware
|
2.5mm Ultra Lock Screws, 2.5mm Standard Screws, 2.7mm Emergency Screws
|
Gives surgeons intraoperative choices to manage unique bone density challenges.
|
|
Regulatory Clearances
|
Ensures global compliance with rigid quality control and medical manufacturing standards.
|
|
Core Engineering Innovations & Clinical Benefits
1. Preformed “Ezyshape” Geometry Tailored for Asian Patient Anatomy
One of the most notable design features of this system is its anatomical pre-contouring. Rather than being manufactured as a straight bar, the plate is pre-bent during production to match the natural, average curvature of the jawline in Asian patients.
- Drastic Reduction in Operating Room (OR) Time: By eliminating the tedious process of repeatedly bending, checking, and re-bending a plate against the patient’s bone, surgeons can save significant time off the procedure. This minimizes the patient’s overall time under general anesthesia, lowering risks of infection and systemic complications.
- Enhanced Fatigue Life: When a straight plate is manually bent using forceps or tools in an OR, micro-stresses develop within the metal, particularly around the screw holes. Extensive bending limits hole deformation and creates structural vulnerabilities. The factory-engineered Ezyshape curvature distributes mechanical stress evenly across the plate, vastly increasing its fatigue life and resistance to long-term masticatory loads.
2. Ultra Lock Technology
Hardware failure in mandible plating is rarely caused by the plate snapping initially; instead, it is typically caused by micro-motions that lead to screw back-out and subsequent construct instability.
Ortho Max addresses this through integrated Ultra Lock Technology. The system features a unique locking mechanism where the screw threads lock securely into the plate hole itself.
- The Internal External Fixator Concept: By locking the screw firmly to the plate, the construct functions seamlessly as an internal external fixator. This mechanical configuration means the plate does not need to be crushed tightly against the underlying bone to achieve stability.
- Preserving the Periosteum: Traditional non-locking plates rely on friction against the bone, which compresses and cuts off the blood supply (periosteum). The Ultra Lock system preserves the periosteum and local vascularity, which are vital for bone healing and graft survival.
3. Modular Architecture: The Ezyshape TMJ Condyle Integration

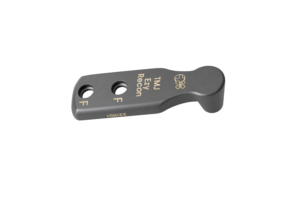

In oncological resections where a malignant tumor involves the condylar process, a hemimandibulectomy or condylectomy must be performed. The Ultra Lock Ezyshape system manages this seamlessly through a modular Ezyshape TMJ Condyle attachment.
- Manufactured from Medical Grade Titanium matching ISO 5832-3 standards, this modular component mounts directly onto the standard mandibular reconstruction plate.
- It utilizes a specialized, heavy-duty fastening screw and cap to achieve completely rigid fixation.
- Inventory Streamlining: Because the condyle head is engineered with a universal design, a single size fits both Left and Right configurations. This significantly lowers a hospital’s inventory overhead while providing crucial intraoperative flexibility.
Critical Clinical Guidance and Warnings
While titanium hardware provides excellent primary mechanical bridging, it is not a permanent substitute for vital biological tissue.
Mandatory Clinical Warning: As explicitly stated in the engineering catalog, internal fixation plates are prone to eventual structural fracture if subjected to high, unassisted functional load-bearing over an extended timeframe. For temporary bridging or delayed secondary reconstruction, it is crucial that a vascularized or non-vascularized bone graft be placed within a reasonable clinical window. The biological graft eventually consolidates and absorbs the chewing forces, relieving stress on the plate and preventing long-term hardware failure.
Inside the “All-in-One” Premium Set Configuration
To optimize workflow in fast-paced surgical environments, Ortho Max distributes this system in a comprehensive “All-in-One” Premium Mandibular Reconstruction Set. This self-contained unit includes all required implants, sizing accessories, and specialized surgical instruments in a structured sterilization container.
Included Implants Profile:

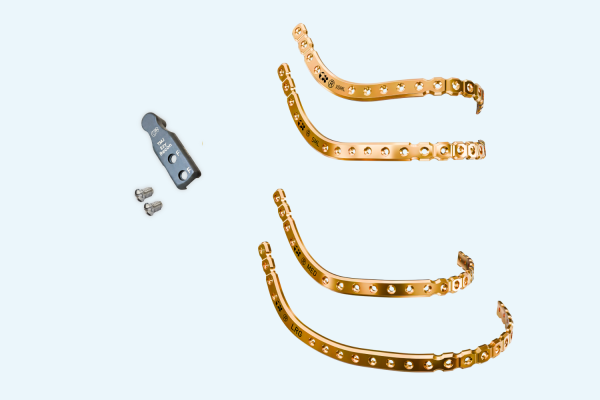

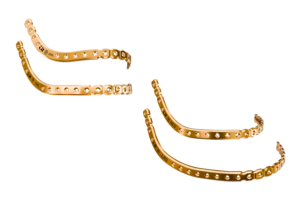

- 8 Anatomical Plates: Full coverage across the 4 primary sizes (XS, S, M, L) in dedicated Left and Right layouts.
- Ultra Lock & Titanium Screws: A robust array of cross-drive screws in 2.5mm diameters, with lengths spanning from 6mm to 12mm.
- Emergency Screw: 2.7mm Emergency Screws designed to achieve stable purchase if a primary hole becomes stripped or compromised.
- TMJ Condylar Additions: 2 universal Ezyshape TMJ Condyles with corresponding fastening caps and screws.
Included Instrumentation Suite:
- Sizers & Templates: 8 rigid, non-deformable sizers to assess correct plate lengths along with 4 malleable, low-profile bending templates featuring explicit hole markings for surgical mapping.
- Manipulation Instruments: 1 pair of standard Plate Benders, a Recon Multi-Angle Plate Bender, and a specialized Circular Multi-Plate Cutter.
- Drilling Components: Quick-coupling Cross Drive screwdriver handles and shafts, a 2.5mm depth gauge, 2mm drill sleeves, and high-strength SS drill bits (including 65mm regular and 100mm extended profiles).
Frequently Asked Questions (FAQs)
What material is utilized in the fabrication of the Ultra Lock Ezyshape system?
The plates, screws, and modular condyle components are manufactured from premium Medical Grade Titanium complying strictly with ISO 5832-1 and ISO 5832-3 regulations. This ensures maximum biocompatibility, avoids corrosion, and prevents adverse tissue reactions.
Can surgeons mix locking and non-locking screws within the same plate?
Yes. The engineered geometry of the plate holes accommodates both 2.5mm Ultra Lock locking screws and 2.5mm standard non-locking bone screws. This dual-compatibility allows surgeons to tailor their fixation strategy to the specific bone quality found at different areas of the jaw.
How does the pre-contoured Asian patient anatomy profile improve surgical outcomes?
Because the plates are factory-shaped to mirror the natural anatomy of Asian patients, intraoperative plate manipulation is greatly minimized. This limits structural hole deformation caused by excessive manual bending, preserves the fatigue life of the titanium, and shortens overall surgical time.
Is the modular Ezyshape TMJ Condyle designed for permanent joint arthroplasty?
No. The Ezyshape TMJ Condyle is explicitly indicated for temporary reconstruction following a condylectomy or tumor ablation. It serves to bridge the structural gap and maintain correct maxillomandibular alignment before final, permanent reconstruction is executed.
What role do the sizers and templates play during the procedure?
The rigid sizers allow the surgical team to quickly determine the required plate length without risking accidental deformation. Once the size is locked in, the malleable, low-profile templates are used to accurately mark out precise screw hole locations and minor final contours before adapting the actual titanium plate.
How does the system protect against stripped screw holes in osteopenic bone?
The “All-in-One” kit includes a dedicated allocation of 2.7mm Emergency Screws. If a standard 2.5mm screw hole strips due to thin cortex or poor bone density, the surgeon can upsize to the 2.7mm emergency screw to achieve rigid, high-torque fixation without swapping out the entire plate.
What regulatory validation supports the Ortho Max mandibular plating line?
The system is fully cleared under US FDA approval and is manufactured within a production facility certified to ISO 13485:2016 standards. This ensures full tracking, material purity, and rigorous quality assurance for clinical usage.
