Interlocking Nail

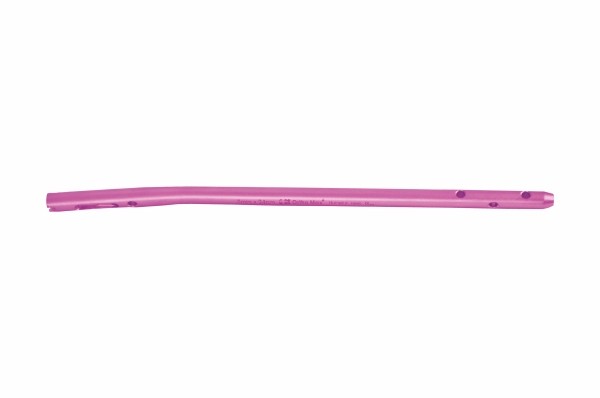

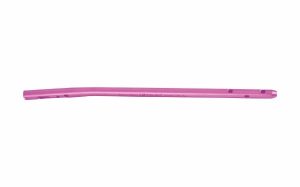

Interlocking Nail For Humerus - Cannulated
Intended Use: For Intramedullary Fixation & Locking of Humerus Fracture
Profile: For 6mm & 7mm Proximal Hole Dia. 3.5mm -Distal Hole Dia. 2.7mm For 8mm Proximal & Distal Hole Dia. 3.5mm
Nail Diameter: 6mm, 7mm & 8mm Cannulated Dia.
Size: 20cm To 30 cm – 1 cm diff
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
170.1620 To 170.1830
|
|
* Titanium
|
170.T1620 To 170.T1830
|

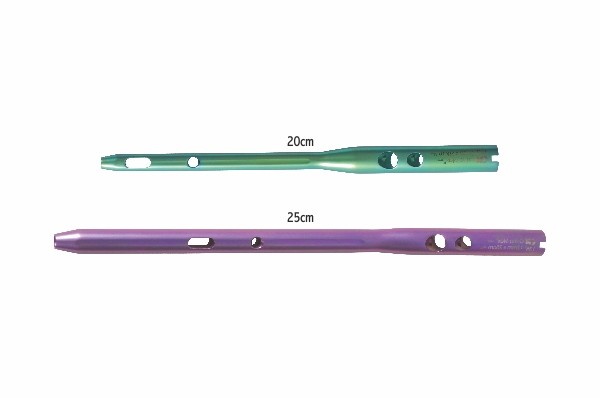

Proximal Femoral Nail (PFN) - Short
Intended Use: For Intramedullary Fixation & Locking of Proximal Femur Fracture
Profile: 3mm Gun drill hole Cannulation, Hip Screws 6.4mm & 8mm Dia. Distal Screws 4.9mm Dia.
Nail Diameter: 9mm, 10mm, 11mm & 12mm
Size: 130° , 135° x 20cm & 25cm
20cm
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
171.1309 To 171.13512
|
|
* Titanium
|
2042.1309 To 2042.13512
|
25cm
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
177.1309 To 177.13512
|
|
* Titanium
|
2043.1309 To 2043.13512
|

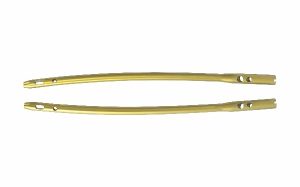

Proximal Femoral Nail (PFN)- Long
Intended Use: For Intramedullary Fixation & Locking of Proximal & Shaft Femur Fracture
Profile: 3mm Gun drill hole Cannulation, Hip Screws Dia. 6.4mm & 8mm Distal Screws Dia.4.9mm
Nail Diameter: 9mm, 10mm, 11mm & 12mm
Size: Left & Right – 135° x 32cm To 44cm – 2cm diff.
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
178.932R To 178.1244L
|
|
* Titanium
|
2044.932R To 2044.1244L
|

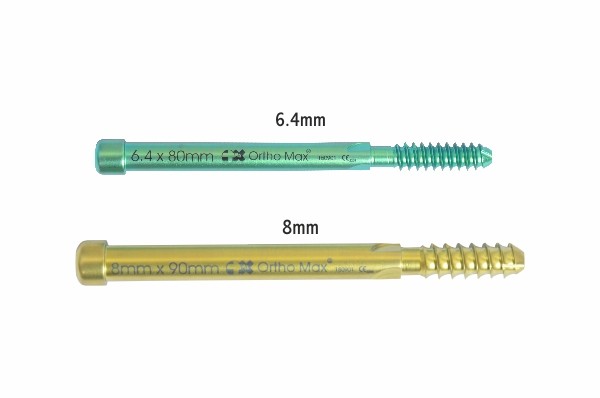

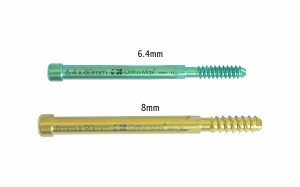

Lag Screw for PFN
Intended Use: To be used with PFN in Hip
Profile: 2mm hole cannulation in 6.4mm 2.5mm hole cannulation in 8mm
Size: 60mm To 120mm – 5mm diff
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
179.6460 To 179.8120
|
|
* Titanium
|
2045.6460 To 2045.8120
|

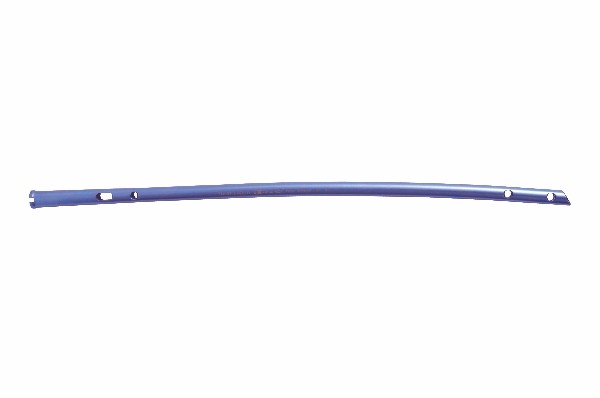

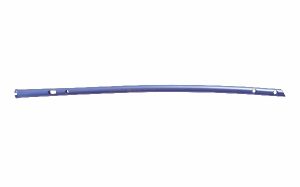

Interlocking Nail For Femur -"Universal" Cannulated
Intended Use: For Intramedullary Fixation & Locking of Femur Shaft Fracture
Profile: 3mm Gun Drill Hole Cannulation, 4.9 mm Hole Dia.
Nail Diameter: 9mm, 10mm, 11mm & 12mm
Size: 32cm To 46cm – 2 cm diff..
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
176.932 To 176.1246
|
|
* Titanium
|
237.932 To 237.1246
|
* Also Available in Solid Nail
Interlocking Nails For Femur – “Universal – Solid
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
2032.934 To 2032.1244
|
|
* Titanium
|
2031.934 To 2031.1244
|

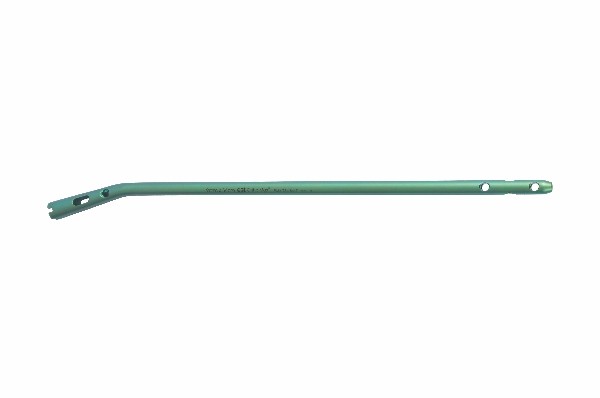

Interlocking Nail For Tibia -"Modified" Cannulated
Intended Use: For intramedullary Fixation & Locking of Tibial Shaft Fracture
Profile: 2.5mm Gun Drill hole cannulation, 3.5mm hole dia. for 8mm,4.9mm Hole dia. For 9,10mm
Nail Diameter: 8mm, 9mm & 10mm
Size: 28 cm to 40 cm – 2cm diff.
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
174.828 To 174.1040
|
|
* Titanium
|
236.828 To 236.1040
|
* Also Available in Solid Nail
Interlocking Nails For Tibia – “Modified” – Solid
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
175.828 To 175.1040
|
|
* Titanium
|
235.828 To 235.1040
|

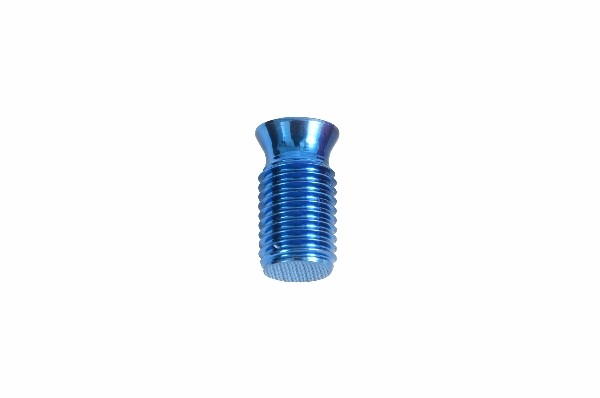

Interlocking Nail Cap
Intended Use: To be used with interlocking nails to plug threaded hole
Profile:Head dia. 9mm, Length 15mm
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
185.001
|
|
* Titanium
|
239.001
|

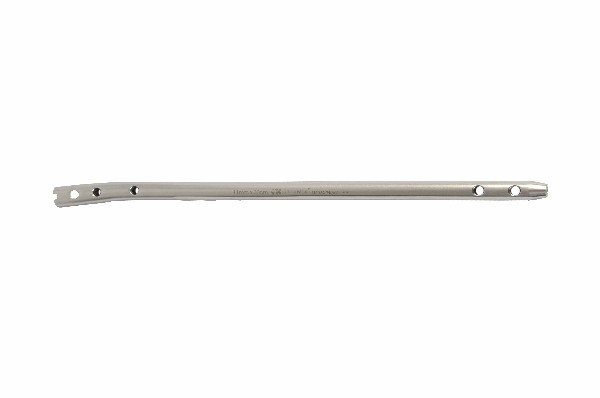

Intramedullary Supracondylar Nails - Cannulated
Intended Use: For Intramedullary Fixation of Supracondylar Femur Fracture
Profile:Proximal & Distal Hole Dia. 4.9 mm
Nail Diameter: 9mm, 10mm, 11mm & 12mm
Size:15cm, 20cm, 25cm, 30cm, 40cm
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
183.915 To 183.1240
|

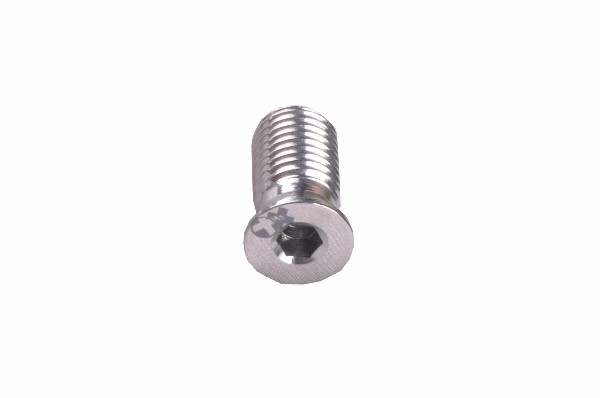

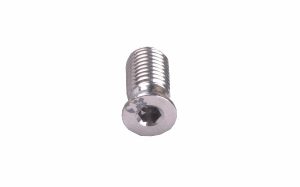

IMSC Nail’s Cap
Intended Use: To be used with IMSC nails to plug threaded hole
Profile: Head dia. 9mm, Length 15mm
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
185.004
|
Ultra Lock® Interlocking Nails For Tibia Cannulated
Intended Use: For Intramedullary Fixation & Locking of Proximal Tibial Fracture
Profile: 2.5mm Gun Drill hole cannulation Proximal dia. 11mm 4.9mm Hole dia. For 8, 9,10, 11mm (3.5mm Distal hole dia. for 8mm)
Nail Diameter: 8mm, 9mm,10mm & 11mm
Size: 28cm To 40cm – 2cm diff
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
2034.828 To 2034.1140
|
|
Titanium
|
2034.T828 To 2034.T1140
|

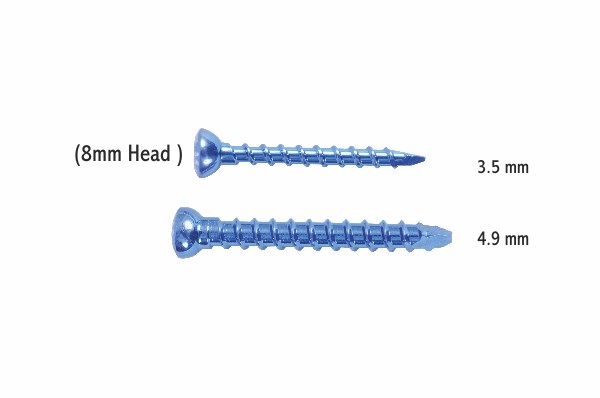

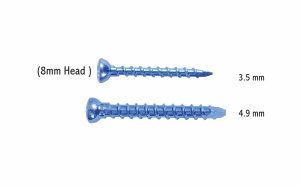

Interlocking Screw
Intended Use: For Locking Nails in Bi-Cortical Fixation
Profile: Core Dia 2.7mm for 3.5mm, 4.0 for 4.9 mm
Nail Diameter: 3.5mm ( For 8mm Distal Hole only) & 4.9 mm ( For 8, 9,10, 11mm Nails )
Size: 3.5mm x 24mm To 50mm, (8mm Head)
4.9mm x 24mm To 50mm – 2mm diff. 55mm To 80mm – 5mm diff
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
184.3524 To 184.4980
|
|
Titanium
|
238.3524 To 238.4980
|

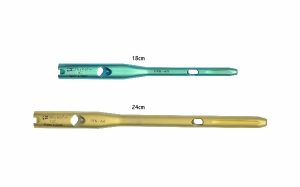

PFN AR Short Nails
Intended Use: For intramedullary Fixation & Locking of Proximal Femur Fracture
Profile: Proximal 16mm Dia., Hip Blade 10.5mm Dia., Distal Screw 4.9mm Dia.
Nail Diameter: 9mm, 10mm, 11mm & 12mm
Size: 130° x 18cm & 24cm Long
18cm
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
2066.0918 To 2066.1218
|
|
Titanium
|
2062.0918 To 2062.1218
|
24cm
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
2066.0924 To 2066.1224
|
|
Titanium
|
2062.0924 To 2062.1224
|

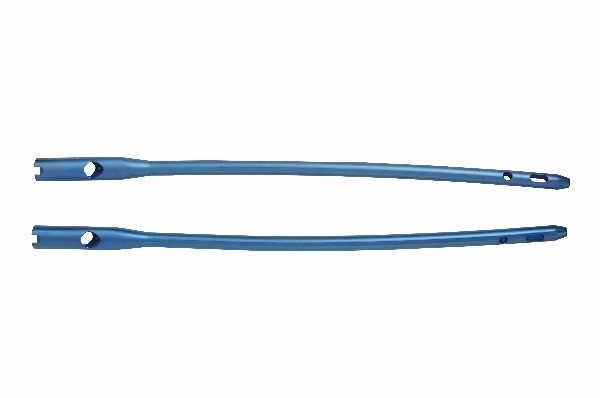

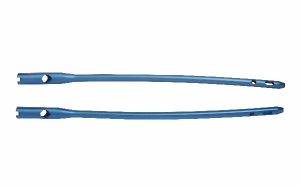

PFN AR Long Nails
Intended Use: For intramedullary Fixation & Locking of Proximal Femur Fracture
Profile: Proximal 16mm Dia., Hip Blade 10.5mm Dia., Distal Screw 4.9mm Dia
Nail Diameter: 9mm, 10mm, 11mm & 12mm
Size: Left & Right 130° x 32cm To 44cm Long – 2cm diff.
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
2068.0932R To 2068.1244L
|
|
Titanium
|
2070.0932R To 2070.1244L
|
PFN AR Blades
Intended Use: To be used with PFN-AR Nail in Hip
Profile: 10.5mm dia with 3.2mm hole cannulation
Size: 70mm to 120mm – 5mm diff.
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
2067.070 To 2067.120
|
|
Titanium
|
2063.070 To 2063.120
|

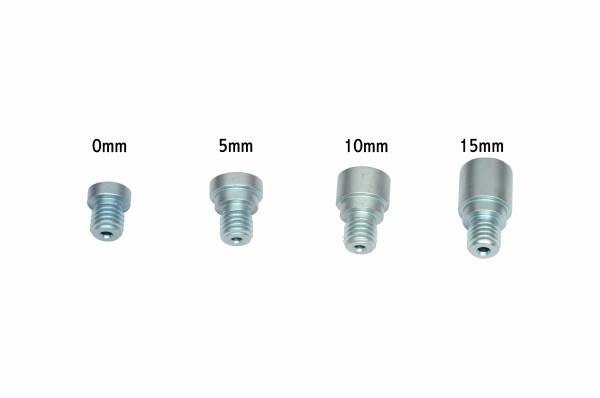

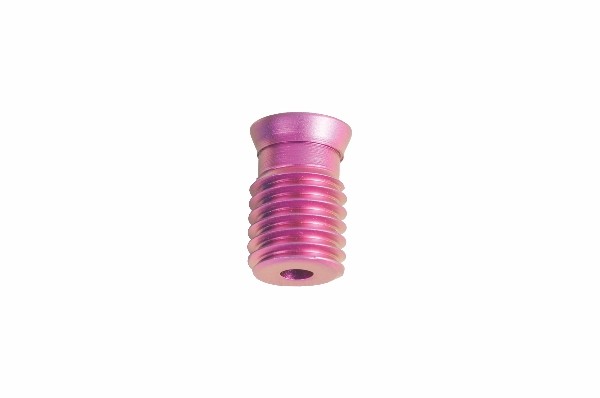

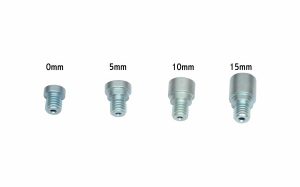

PFN AR End Cap
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
2069.000 To 2069.015
|
|
Titanium
|
2064.000 To 2064.015
|

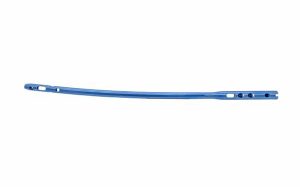

Ultralock® femur Nail
Intended Use: For Intramedullary Fixation & Locking of Neck
& Shaft Femur Fracture
Profile: 2.5mm Gun Drill hole cannulation, Proximal dia. 13mm, 6.4mm & 4.9mm Solid Screws Hole
Nail Diameter: 9mm,10mm, 11mm & 12mm
Size: Left & Right – 32cm To 44cm – 2cm diff.
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
1811.0932(L/R) To 1811.1244(L/R)
|
|
Titanium
|
1811.T0932(L/R) To 1811.T1244(L/R)
|

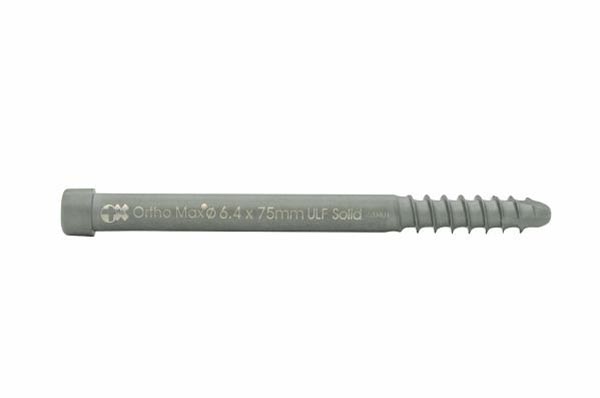

Hip Screw Soild
Intended Use: For Hip Fixation in Recon. Femur Nailing
Profile: Solid 6.4mm Dia. x 30mm Threads x 9 TPI
Size:60mm To 110mm (5mm diff.).
|
Material
|
Reference
|
|---|---|
|
SS 316L
|
1812.6460 To 1812.64110
|
|
Titanium
|
1812.T6460 To T1812.64110
|

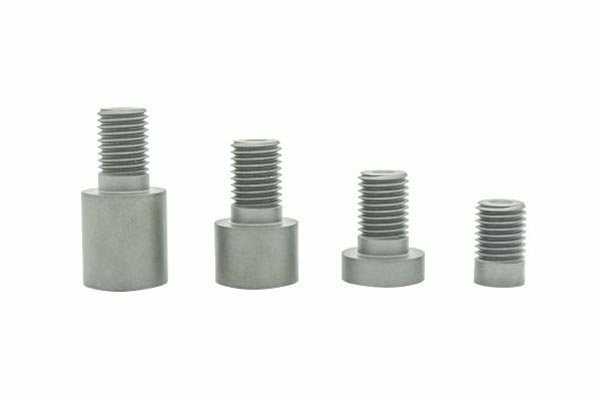

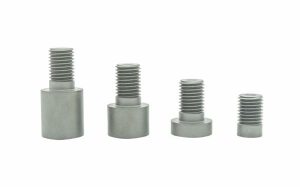

Ultralock® femur Nail End cap
|
Size
|
S.S. Ref.
|
Tita. Ref.
|
|---|---|---|
|
0mm
|
1813.000
|
1813.T000
|
|
5mm
|
1813.005
|
1813.T005
|
|
10mm
|
1813.010
|
1813.T010
|
|
15mm
|
1813.015
|
1813.T015
|
