Orthopaedic Kits / Sets

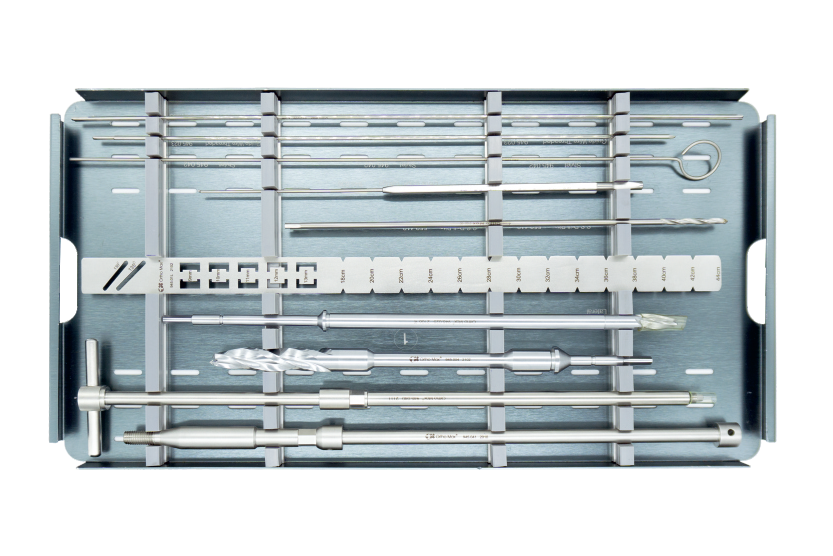

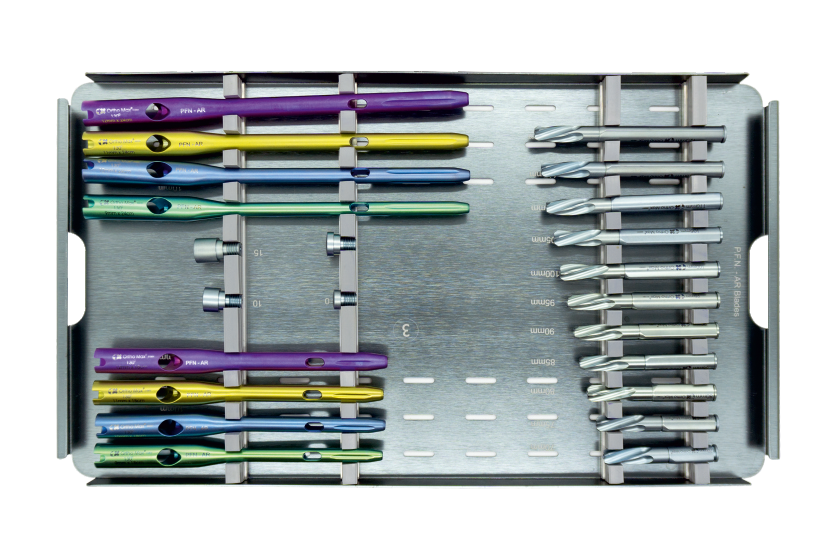

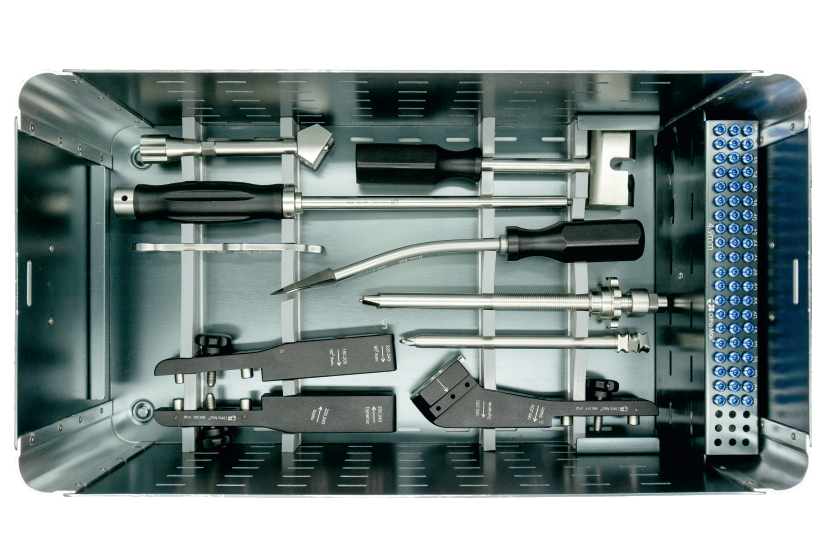

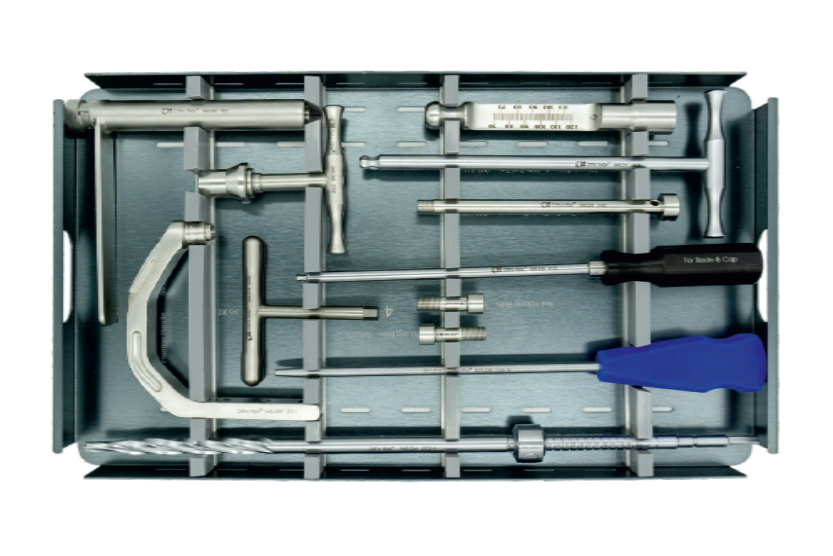

PFN-AR - Short & Long - S.S. & Titanium

x

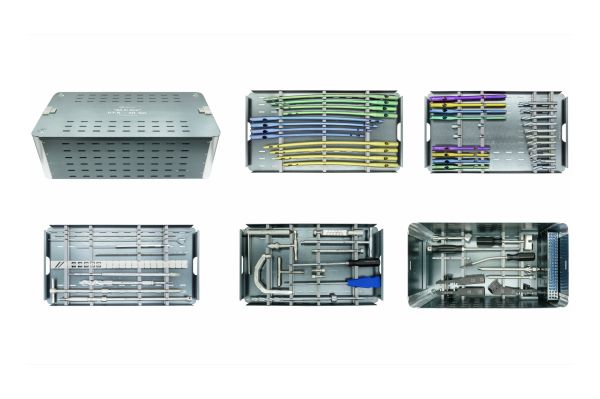

PFN-AR - Short & Long - S.S. & Titanium

Reference: 945.043

Implants Contents	Quantity

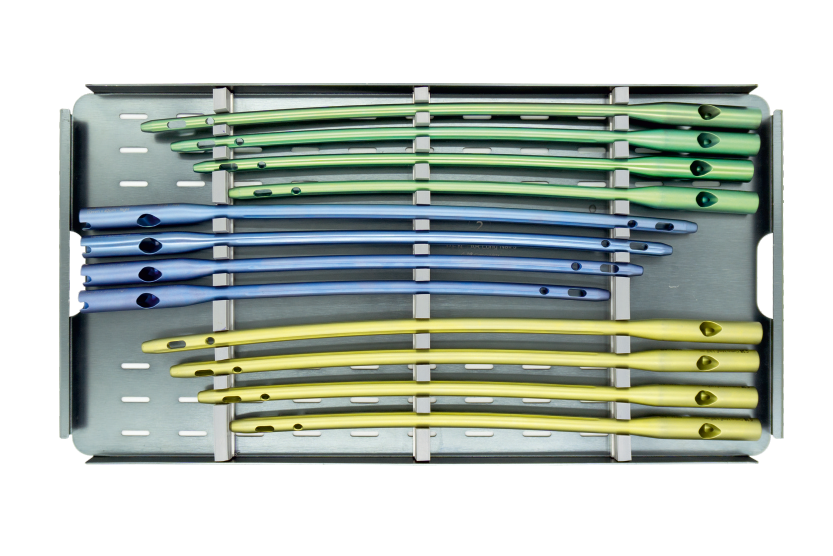

PFN-AR Nails - Short
- 130° x 9, 10, 11, 12mm X 18cm - 1 each	04 Nos
- 130° x 9, 10, 11, 12mm X 24cm - 1 each	04 Nos
PFN-AR Blades
- 70mm to 120mm - 2 each	22 Nos
PFN-AR End Cap
-0mm, 5mm, 10mm, 15mm - 1 each	04 Nos
PFN-AR End Cap
- 4.9mm x 26mm to 60mm - 2 each	30 Nos

Instruments Contents	Quantity
Radiographic Ruler - Short	01 No
Radiographic Ruler - Long	01 No
Cannulated Bone Awl For PFN-AR	01 No
Guide Wire For Nail Plain 2.5mm x 36" ( For Long Nail )	02 Nos
Guide Wire For Nail Plain 2.5mm x 24" ( For Short Nail )	02 Nos
Initial Protection Sleeve - 17mm	01 No
Honeycomb Guide Sleeve - 2.5mm	01 No
Quick Coupling T Handle for PFN-AR	01 No
Proximal Reamer Quick Coupling	01 No
Nail Holding Bolts	02 Nos
Short Wrench T Handle	01 No
Long Wrench T Handle With Ball Tip	01 No
Nail Insertion Handle	01 No
PFN-AR Jig 130° X 18cm	01 No
Threaded Protection Sleeve	01 No

Instruments Contents	Quantity
Guide Sleeve 3.2mm	01 No
Trocar Pin 3.2mm	01 No
Insertion Connector	01 No
Insertion Connecting Rod	01 No
Combination Wrench	01 No
Combined Hammer	01 No
Guide Wire Threaded 3.2mm X 400mm	03 Nos
Direct Measuring Device 3.2mm	01 No
Lateral Cortex Reamer 11mm	01 No
Cannulated Reamer For Blade/Screw 11mm	01 No
Stopper for Reamer	01 No
Blade Holder/Impactor	01 No
Distal Jig for 24cm	01 No
Distal Jig for 90° Static	01 No
Distal Protection Sleeve	01 No
Distal Drill Sleeve 4mm	01 No
Distal Trocar Pin 4mm	01 No
S.S. Drill Bits - 4mm X 300mm	02 Nos
Distal Depth Gauge	01 No
Hexagonal Screw Driver with Silicon Handle 4.9mm (Long)	01 No
Screw Driver With Ball Tip for Blade/Cap	01 No
Blade Removal Device	01 No
Connectiong Rod For Blade Removal	01 No
Nail Extraction Rod-PFN-AR	01 No
Stylet	01 No
Container For PFN-AR Set - Premium	01 No

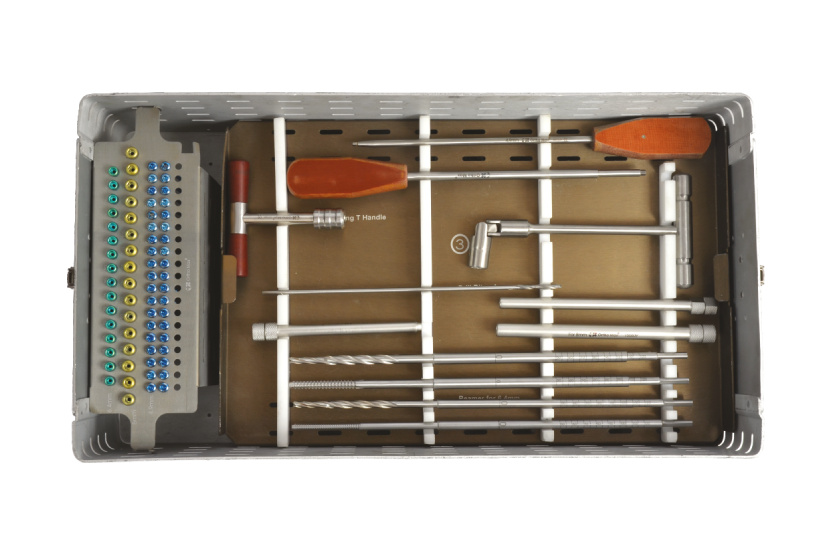

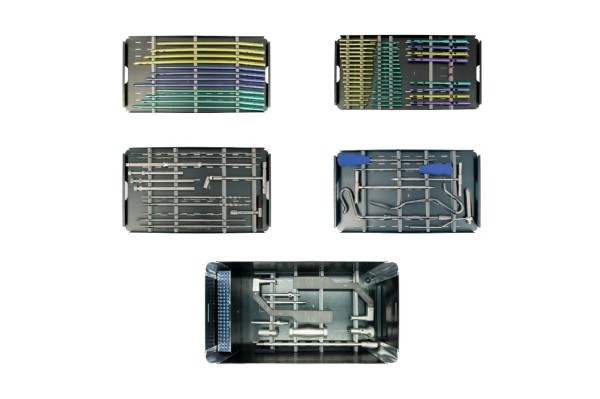

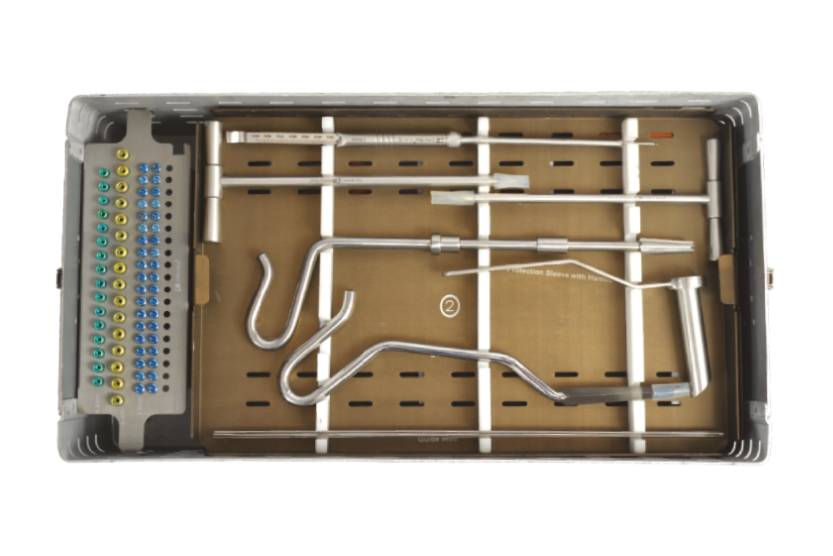

PFN - Short & Long - S.S. & Titanium

x

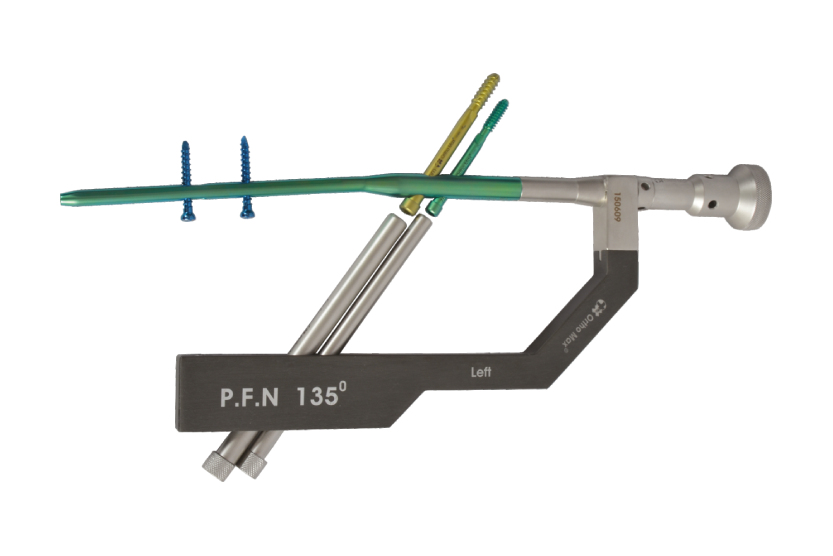

PFN - Short & Long - S.S. & Titanium

Reference: 800.005

PFN SET SHORT SERIES CONTENTS :

Implants Contents	Quantity
Proximal Femoral Nail (PFN) - Short
- 130 135 x 9, 10, 11, 12mm x 20 cm or 25cm - 2 each	16 Nos
Lag Screws for PFN
- 6.4mm x 60mm, 100mm -1 each	02 Nos
- 6.4mm x 65mm To 95mm - 2 each	14 Nos
- 8mm x 70, 75, 80mm - 1 each	03 Nos
- 8mm x 85mm To 105mm - 2 each	10 Nos
- 8mm x 110, 115, 120mm - 1 each	03 Nos
Interlocking Screws
- 4.9mm x 28mm To 50mm - 3 each	36 Nos

PFN SET SHORT & LONG SERIES CONTENTS :

Implants	Quantity
Proximal Femoral Nail (PFN) - Short
- 130 135 x 9, 10, 11, 12mm x 20 cm or 25cm - 1 each	08 Nos
Proximal Femoral Nail (PFN) - Long (Left & Right)
- 135 x 9, 10, 11mm x 36, 38, 40, 42cm - 1 each	24 Nos
Lag Screws for PFN
- 6.4mm x 60mm, 100mm -1 each	02 Nos
- 6.4mm x 65mm To 95mm - 2 each	14 Nos
- 8mm x 70, 75, 80mm - 1 each	03 Nos
- 8mm x 85mm To 105mm - 2 each	10 Nos
- 8mm x 110, 115, 120mm - 1 each	03 Nos
Interlocking Screws
- 4.9mm x 28mm To 85mm - 3 each	57 Nos

Instruments Contents	Quantity
- Bone Awl - Cannulated	01 No
- Guide Wire - 2.5mm x 24"	02 Nos
- Guide Wire - 2.5mm x 36"	02 Nos
- Protection Sleeve with Handle	01 No
- Cannulated Initial Step Reamer	01 No
- Nail Holding Bolt	01 No
- Socket Wrench ‘T’ Handle	01 No
- Targeting Device/Nail Holder 130° ,135°	02 Nos
- Protection Sleeve for 6.4mm	01 No
- Protection Sleeve for 8mm	01 No
- Protection Sleeve for 4.9mm	01 No
- Guide Sleeve for 6.4mm	01 No
- Guide Sleeve for 8mm	01 No
- Drill Sleeve for 4mm	01 No
- Tommy Bar	01 No
- Impactor Head	01 No
- Quick Coupling ‘T’ Handle	01 No
- Lag Screw Awl for 6.4mm	01 No
- Lag Screw Awl for 8mm	01 No
- Trocar Awl with T Handle	01 No
- Cannulated Reamer for 6.4mm, 8mm	02 Nos
- Cannulated Tap for 6.4mm, 8mm	02 Nos
- Drill Bits 4mm x 10"	02 Nos
- Threaded Guide Wire for 6.4mm	02 Nos
- Threaded Guide Wire for 8mm	02 Nos
- Depth Gauge - Long 4.9mm	01 No
- Cannulated Screw Driver for Lag Screws	01 No
- Hexagonal Long Screw Driver 4.9mm	01 No
- Extractor Set with Bolt	01 Set

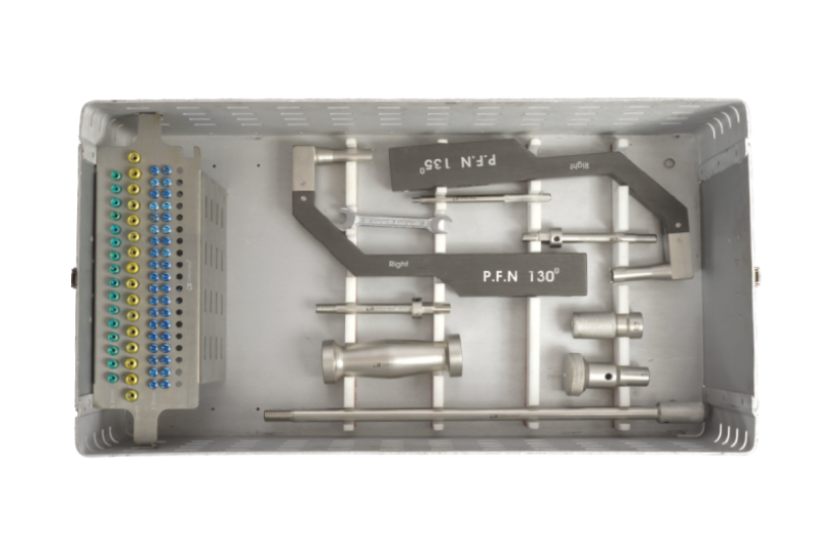

- All in One PFN - Implants & Instruments Set Container	01 No

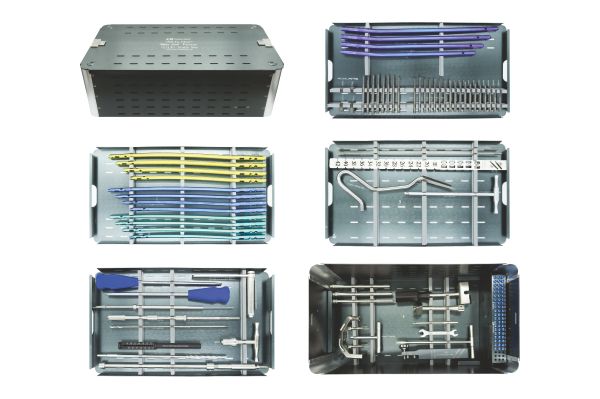

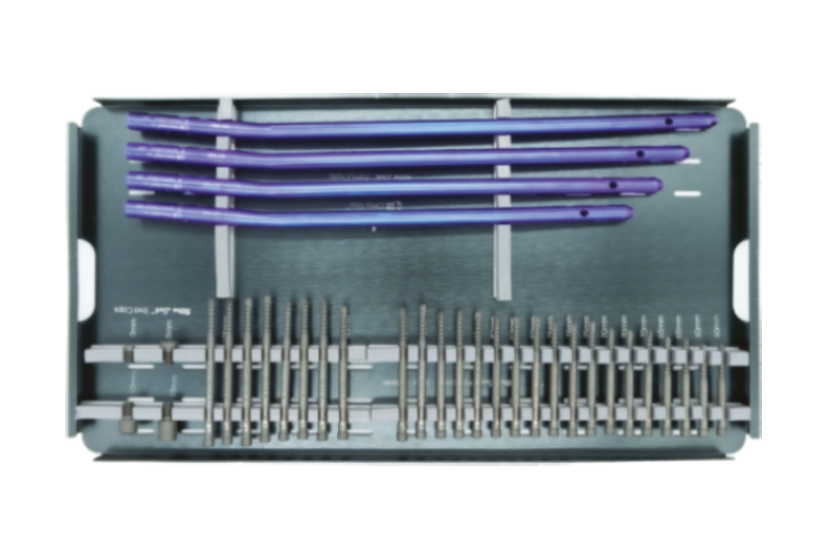

Ultralock^® Femur - S.S. & Titanium

x

Ultralock^® Femur - S.S. & Titanium

Reference: 800.005 Note: Contents shown are for illustration only

Implants Contents	Quantity

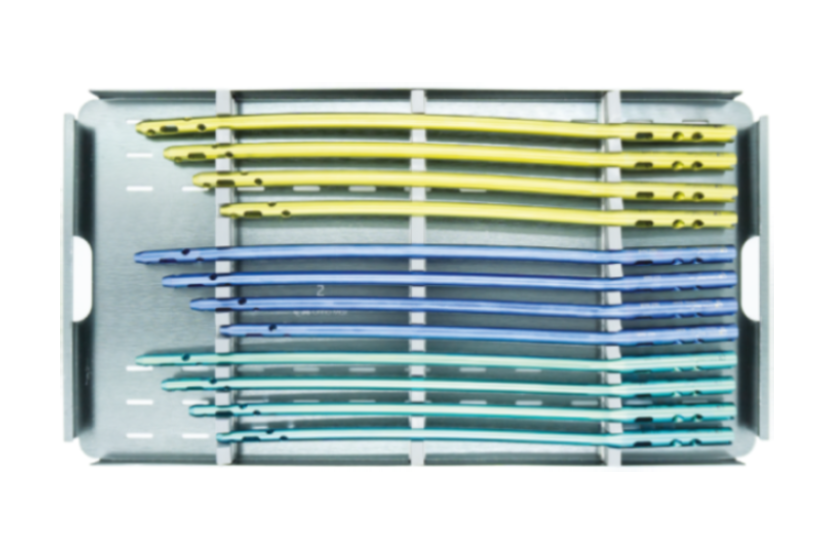

UltraLock Femur Interlocking Nails (Cannulated)
- 9, 10, 11, 12mm x 36, 38, 40, 42cm (L/R) - 1 each	32 Nos
UltraLock Hip Screws Solid
- 6.4mm x 70, 75, 80, 85, 90, 95mm - 3 each	18 Nos
- 6.4mm x 60, 65, 100, 105mm - 2 each	08 Nos
Interlocking Screws
- 4.9mm x 28mm To 50mm - 3 each (2mm diff)	36 Nos
- 4.9mm x 55mm To 90mm - 3 each (5mm diff)	24 Nos
UltraLock Femur Nail Cap
- 0, 5, 10, 15mm - 1 each	04 Nos

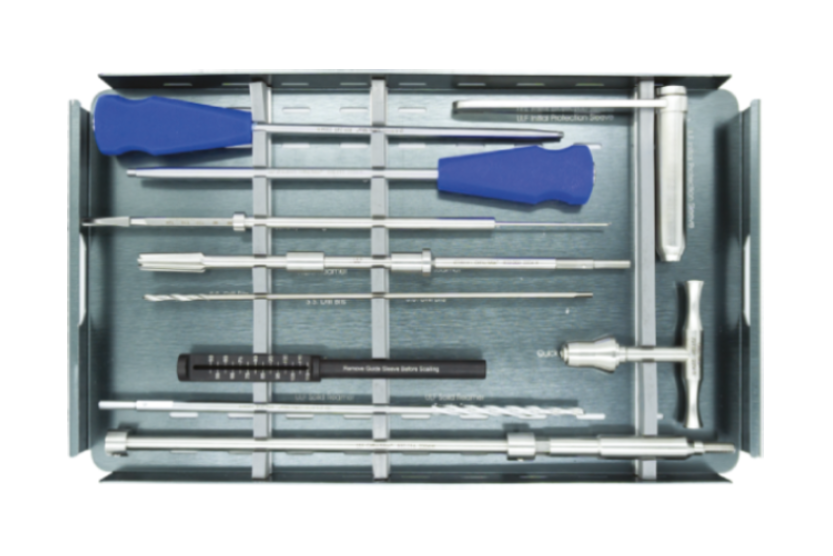

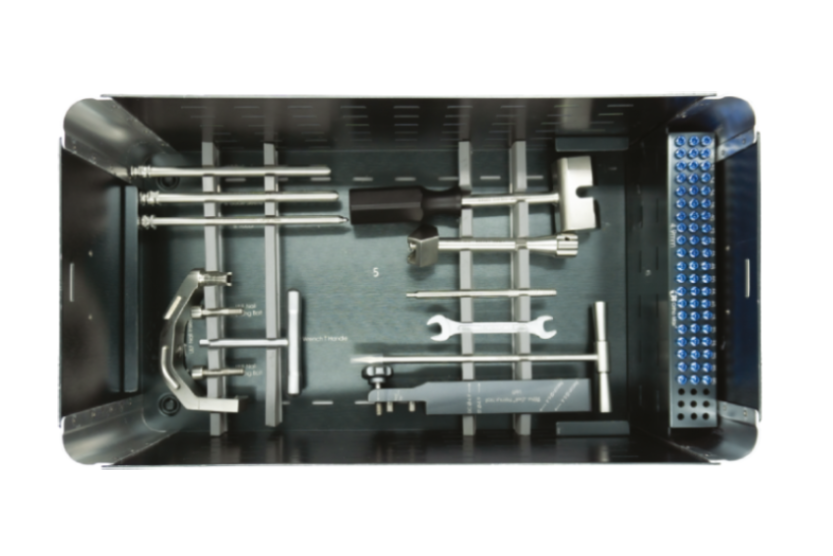

Instruments Contents	Quantity
Bone Awl - Cannulated	01 Nos
Radiographic Ruler - Long	01 Nos
ULF Initial Protection Sleeve - 14mm	01 Nos
ULF Honeycomb Guide Sleeve - 14mm	01 Nos
ULF Quick Coupling Proximal Reamer - 14mm	01 Nos
Quick Coupling T Handle	01 Nos
ULF Nail Insertion Handle	01 Nos
ULF Targetting Device	01 Nos
ULF Nail Holding Bolts	02 Nos
ULF Protection Sleeve	02 Nos
ULF Drill Sleeve 4mm	01 Nos
ULF Guide Sleeve 3.2mm	02 Nos
ULF Trocar Pin 4mm	01 Nos
S. S. Drill Bits 4mm x 12"	02 Nos
Short Wrench T Handle	01 Nos
Long Wrench T Handle with Ball Tip	01 Nos
Insertion Connector	01 Nos
ULF Insertion Connecting Rod	01 Nos
Combined Hammer	01 Nos
Trocar Awl with T Handle	01 Nos
Guide Wire Threaded 3.2mm x 400mm	04 Nos
ULF Hip Screw Measuring Device	01 Nos
Depth Gauge with Sleeve - 4.9mm	01 Nos
ULF Solid Reamer for Hip Screws - 6.4mm	01 Nos
ULF Solid Hip Screw Driver - 6.4mm	01 Nos
Hexagonal Screw Driver with Silicon Handle - Long 4.9mm	01 Nos
Guide Wire for Nail - Plain 2.5mm - Long	02 Nos
ULF Nail Extractor Rod	01 Nos
Tommy Bar for Interlocking	01 Nos
Spanner Simple	01 Nos

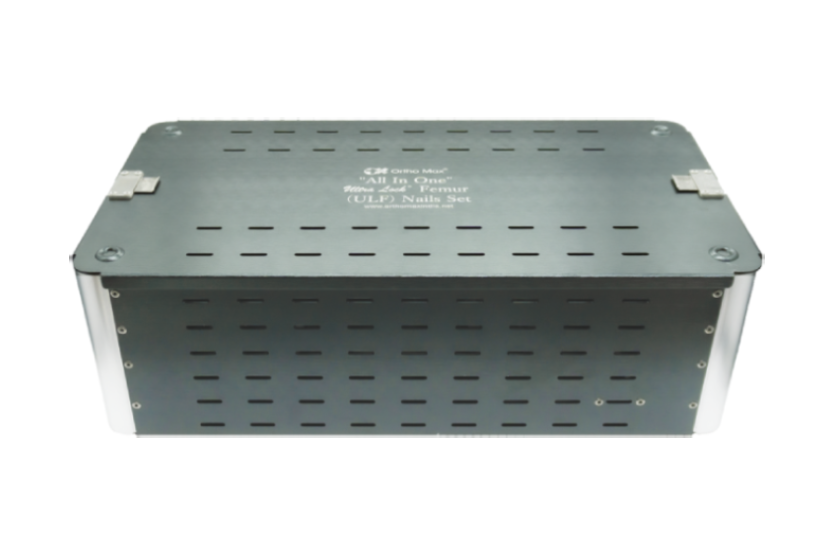

Container for Ultralock Femur Nail System	01 Nos

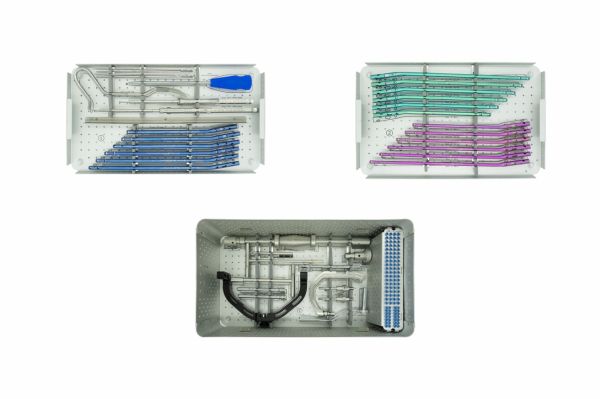

Ultralock^® Tibia Set - S.S. & Titanium

x

Ultralock^® Tibia Set - S.S. & Titanium

Reference: 800.007

Implants Contents	Quantity
UltraLock® Tibia Interlocking Nails (Cannulated)
- 8, 9, 10mm x 28, 30, 32, 34, 36, 38cm - 2 each	36 Nos
Interlocking Screws
- 3.5mm (8mm Head) x 24mm To 30mm - 2 each	8 Nos
- 3.5mm (8mm Head) x 32mm To 44mm - 4 each	28 Nos
- 3.5mm (8mm Head) x 46mm,48mm,50mm - 2 each	6 Nos
- 4.9mm x 26mm & 80mm - 3 each	6 Nos
4.9mm x 28mm To 50mm - 6 each (2mm diff)	72 Nos
4.9mm x 55mm To 75mm - 6 each (5mm diff)	30 Nos

Instruments Contents	Quantity
Bone Awl - Curved	1 No
Guide Wire Long - 2.5 mm x 30"	2 Nos
UltraLock® Tibia Proximal Reamer Sleeve-11mm	1 No
UltraLock® Tibia Proximal Reamer Sleeve-11mm	1 No
UltraLock® Tibia Nail & Jig Holder	1 No
UltraLock® Tibia Proximal Jig Assembly	1 No
UltraLock® Tibia Nail Holding Bolt	2 Nos
UltraLock® Tibia Protection Sleeve	2 Nos
UltraLock® Tibia Drill Sleeve - 4mm	2 Nos
UltraLock® Tibia Drill Sleeve - 2.7mm	2 Nos
Hexagonal Spanner with 'T' Handle	1 No
Trocar Awl with T Handle	1 No
Drill Bit - S.S. 2.7 mm x 10”	2 Nos
Drill Bit - S.S. 4 mm x 10”	2 Nos
Tommy Bar	1 No
Depth Gauge - Long - 3.5mm	1 No
Depth Gauge - Long - 4.9mm	1 No
Hexagonal Long Screw Driver - 4.9 mm	1 No
Impactor Head	1 No
Extractor Set ( Interlocking ) - Head	1 No
Extractor Set ( Interlocking ) - Ram	1 No
Extractor Set ( Interlocking ) - Rod	1 No

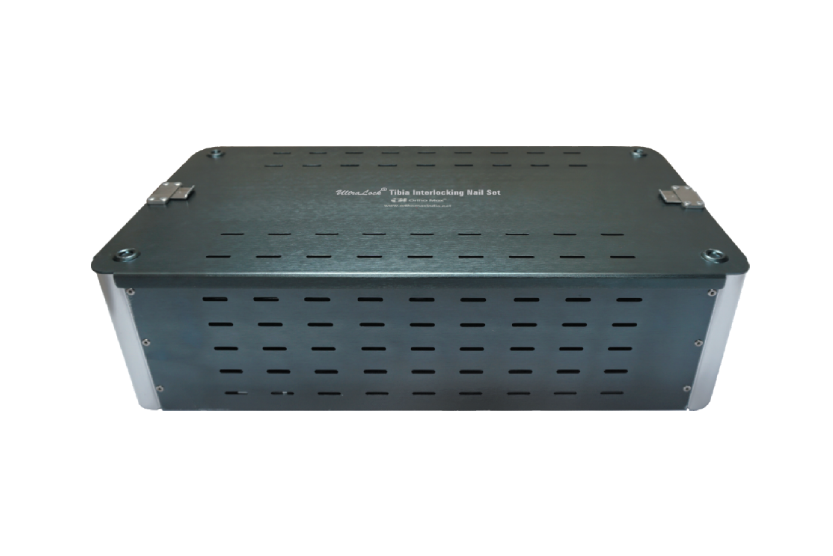

Container for Ultralock Tibia Implants & Instruments Set - Premium	1 No

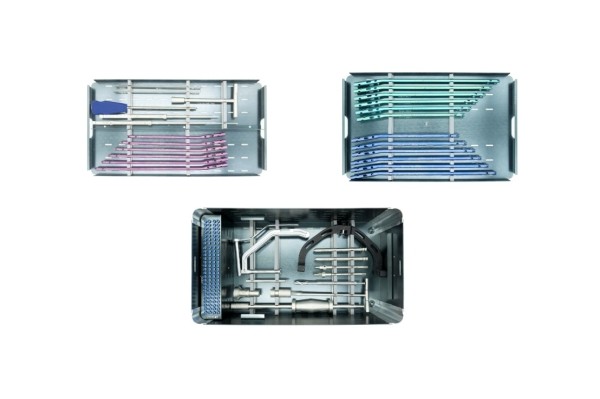

Ultralock^® Tibia Set (with suprapatellar jig) S.S. & Titanium

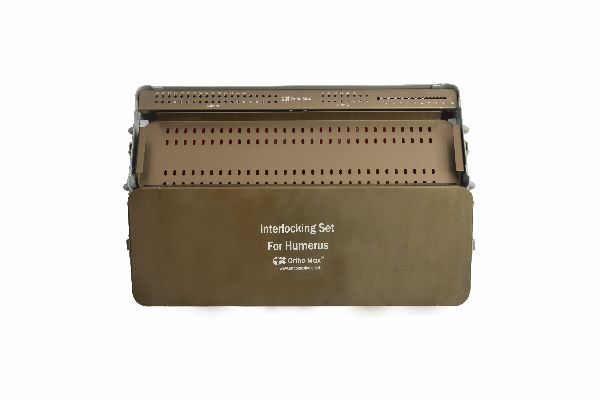

Humerus Set - S.S. & Titanium

x

Humerus Set - S.S. & Titanium

Reference: 800.002

Implants Contents	Quantity

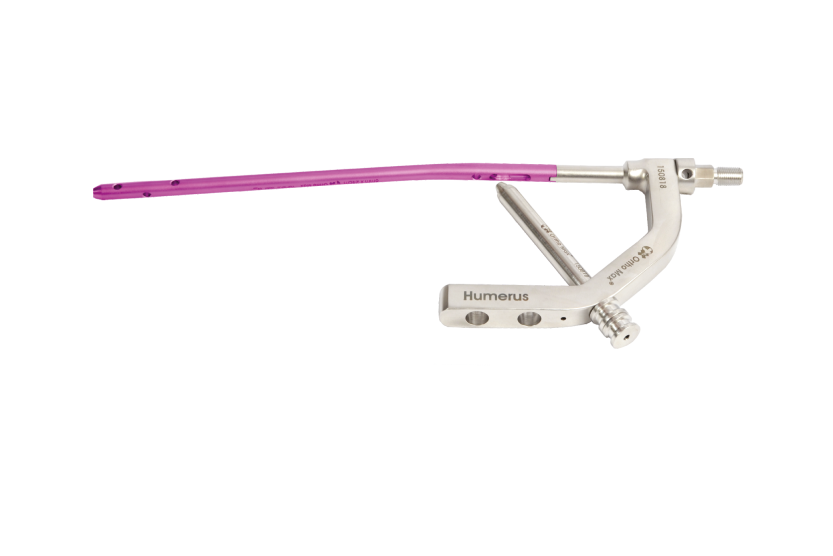

Interlocking Nail for Humerus - Cannulated
- 6, 7, 8mm x 20 cm To 30cm - 1 each ( 2cm diff )	18 Nos
Interlocking Screws
- 2.7mm x 18mm To 30mm - 2 each ( 2mm diff )	14 Nos
- 3.5mm ( 6mm Head ) x 18mm To 46mm - 2 each ( 2mm diff )	30 Nos

Instruments Contents	Quantity
- Bone Awl - Small	01 No
- Guide Wire 1.8mm x 20"	02 Nos
- Nail Holder / Proximal Jig	01 No
- Nail Holding Bolt	01 No
- Hexagonal Spanner with T Handle	01 No
- Protection Sleeve	01 No
- Drill Sleeve 2.7mm	01 No
- Trocar	01 No
- Tommy Bar	01 No
- Depth Gauge - Long - 3.5mm	01 No
- Hexagonal Long Screw Driver - 3.5mm	01 No
- Drill Bits 2.2mm x 6" ( For Interlocking 2.7mm )	02 Nos
- Drill Bits 2.7mm x 10" ( For Interlocking 3.5mm )	02 Nos
- Impactor Head	01 No
- Extractor Set with Bolt	01 No

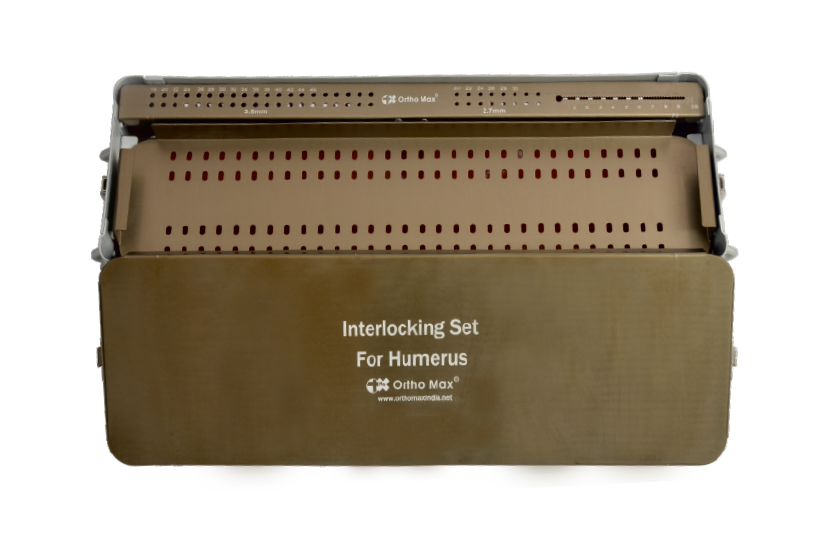

- Humerus Nail Set Container with 2 Tray	01 No

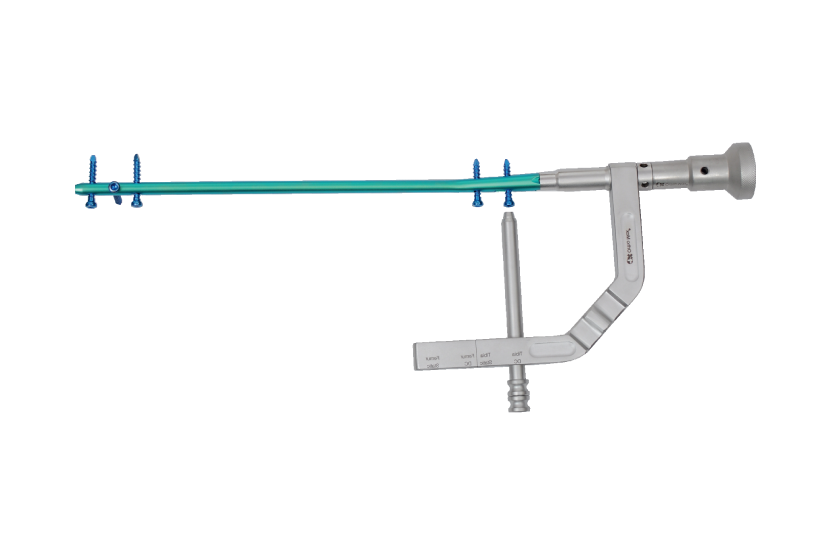

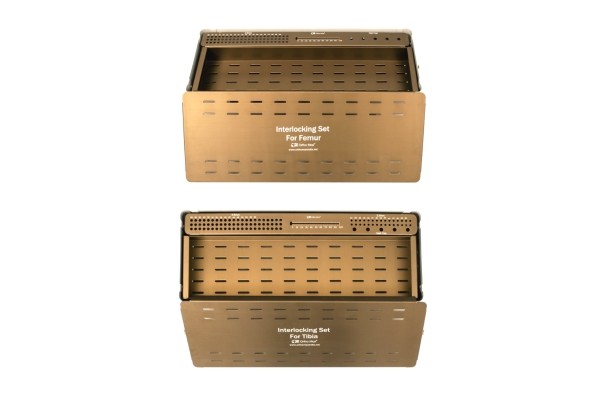

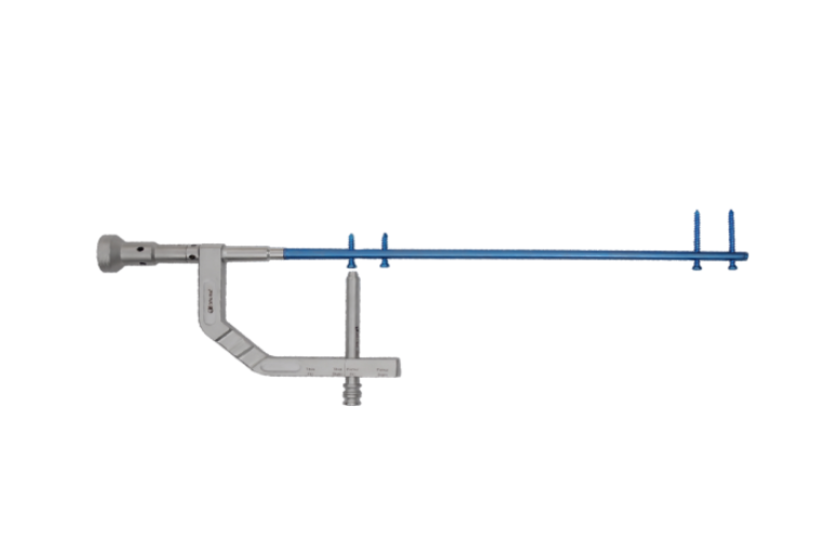

Interlocking set for Tibia Modified and Universal femur

x

Interlocking set for Tibia Modified and Universal femur

Reference: 800.002

Tibia Modified Interlocking Nails Set

Implants Contents	Quantity
Interlocking Nail for Tibia - "Modified" (Cannulated)
- 8, 9, 10mm x 28, 30, 32, 34, 36, 38cm - 1 each	18 Nos
Interlocking Screws
- 3.5mm (8mm Head) x 24mm To 50mm - 2 each	28 Nos
- 4.9mm x 24mm To 50mm - 3 each	42 Nos
- 4.9mm x 55, 60mm - 3 each	06 Nos

Instruments Contents	Quantity
- Bone Awl - Curved	01 No
- Guide Wire - 2.5mm x 30"	02 Nos
- Tissue Protector	01 No
- Proximal Jig for Tibia Modified	01 No
- Nail Holding Bolt	01 No
- Protection Sleeve	01 No
- Drill Sleeve - 2.7mm	01 No
- Drill Sleeve - 4mm	01 No
- Hexagonal Spanner with 'T' Handle	01 No
- Trocar Awl with T Handle	01 No
- Drill Bits 2.7mm x 10"	02 Nos
- Drill Bits 4mm x 1O"	02 Nos
- Tommy Bar	01 No
- Depth Gauge - Long 3.5mm, 4.9mm -1each	02 Nos
- Hexagonal Long Screw Driver - 4.9mm	01 No
- Impactor Head	01 No
- Extractor Set with Bolt	01 Set

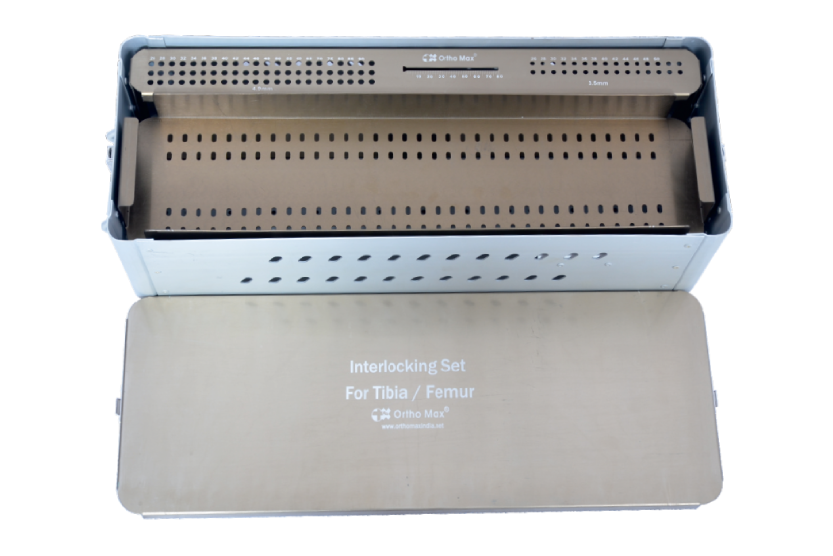

- Interlocking Set Container for Tibia Modified Nails	01 No

Femur Universal Interlocking Nails Set

Implants Contents	Quantity
Interlocking Nail for Femur - "Universal" (Cannulated)
- 9, 10, 11, 12mm x 34, 36, 38, 40, 42, 44cm - 1 each	24 Nos
Interlocking Screws
- 4.9mm x 28mm To 90mm - 3 each	60 Nos

Instruments Contents	Quantity
- Bone Awl - Straight	01 No
- Guide Wire - 2.5mm x 36"	02 Nos
- Tissue Protector	01 No
- Proximal Jig for Universal Femur Nail	01 No
- Nail Holding Bolt	01 No
- Protection Sleeve	01 No
- Drill Sleeve - 4mm	01 No
- Socket Wrench 'T' Handle	01 No
- Trocar Awl with T Handle	01 No
- Drill Bits 4mm x 10"	02 Nos
- Tommy Bar	01 No
- Depth Gauge - Long 4.9mm	01 No
- Hexagonal Long Screw Driver - 4.9mm	01 No
- Impactor Head	01 No
- Extractor Set with Bolt	01 Set
- Interlocking Set Container for Femur Universal	01 No

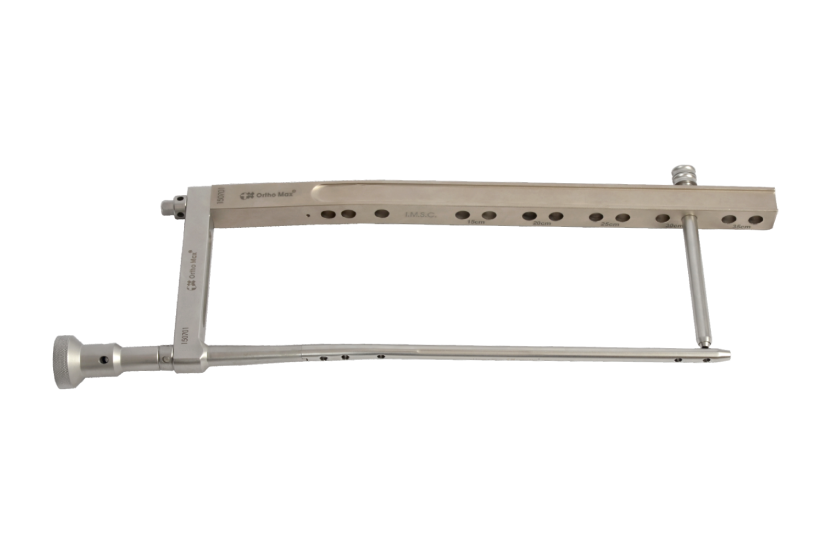

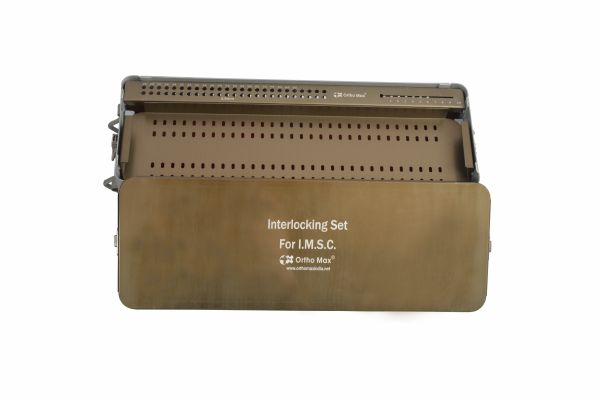

IMSC Set - S.S. (6.5mm dia hole) & Titanium

x

IMSC Set - S.S. (6.5mm dia hole) & Titanium

Reference: 800.002

Implants Contents	Quantity
Intramedullary Supracondylar Nails - Cannulated
- 9, 10, 11, 12mm x 15, 20, 25, 30, 35cm - 1 each	20 Nos
Interlocking Screws
- 4.9mm x 28mm To 90mm - 2 each	40 Nos

Instruments Contents	Quantity
- Bone Awl - Curved	01 No
- Guide Wire - 2.5mm x 24"	02 Nos
- Tissue Protector	01 No
- Nail Holding Bolt	01 No
- Jig Holding Bolt	01 No
- Nail & Jig Holder	01 No
- Proximal / Distal Jig	01 No
- Trocar Awl with T Handle	01 No
- Hexagonal Spanner with T Handle	01 No
- Protection Sleeve	01 No
- Drill Sleeve 4mm	01 No
- Tommy Bar	01 No
- Impactor Head	01 No
- Drill Bits 4mm x 10"	01 No
- Hexagonal Long Screw Driver 4.9mm	01 No
- Depth Gauge - Long 4.9mm	01 No
- Extractor Set with Bolt	01 Set
- IMSC Nail Set Container	01 No

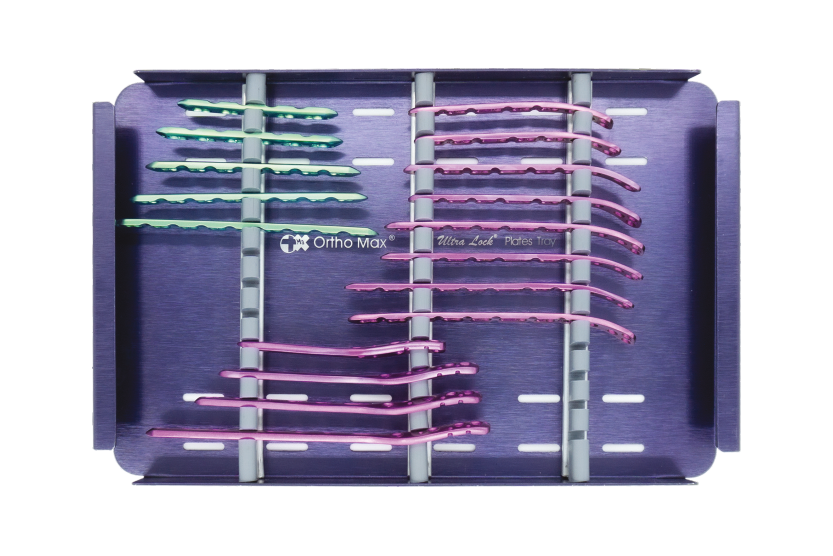

Small Fragment Set - S.S. & Titanium

x

Small Fragment Set - S.S. & Titanium

Implants Contents	Quantity
Dynamic Compression Locking Plates (DCLP)
Thin For Radius / Ulna - 10mm wide 5H, 6H, 7H, 8H, 9H, 10H - 1 each	6 Nos
Proximal Humerus Locking Plates "Multi Angle" 3H,4H,5H,6H -1 each
3H,4H,5H,6H -1 each	4 Nos
7H,8H,10H - 1 each	3 Nos
Distal Humerus Locking Plate - Dorsolateral Without Support - Left & Right
4H, 5H - 1 each	4 Nos
6H, 7H, 8H - 1 each	6 Nos
Distal Humerus Locking Plate - Dorsolateral With Support - Left & Right
4H, 5H - 1 each	4 Nos
6H, 7H, 8H - 1 each	6 Nos
Distal Humerus Locking Plate Medial OR Extra-Articular - Left & Right
4H, 5H - 1 each	4 Nos
6H, 7H, 8H - 1 each	6 Nos
Cortical Locking Screws
3mm x 14mm to 20mm - 3 each (2mm Diff.)	12 Nos
3mm x 22mm to 50mm - 3 each (2mm Diff.)	45 Nos
4mm x 10mm to 30mm - 8 each (2mm Diff.)	88 Nos
4mm x 32mm to 60mm - 8 each (32 to 40 - 2mm diff & 45 to 60-5mm Diff)	72 Nos
4mm x 65mm to 80mm - 8 each (5mm Diff.)	32 Nos
Cancellous Locking Screws-Full Threads
4mm x 24mm to 38mm-3 each (2mm Diff.)	24 Nos
4mm x 40mm to 60mm - 6 each (5mm Diff.)	30 Nos
4mm x 65mm & 70mm - 6 each (5mm Diff.)	12 Nos
4mm x 75mm & 80mm - 3 each	6 Nos
Cortical Screws (20 TPI Self Tapping)
3.5mm x 10mm	4 Nos
3.5mm x 12mm to 26mm - 8 each (2mm Diff.)	64 Nos
3.mm x 28mm to 40mm - 4 each (2mm Diff.)	28 Nos

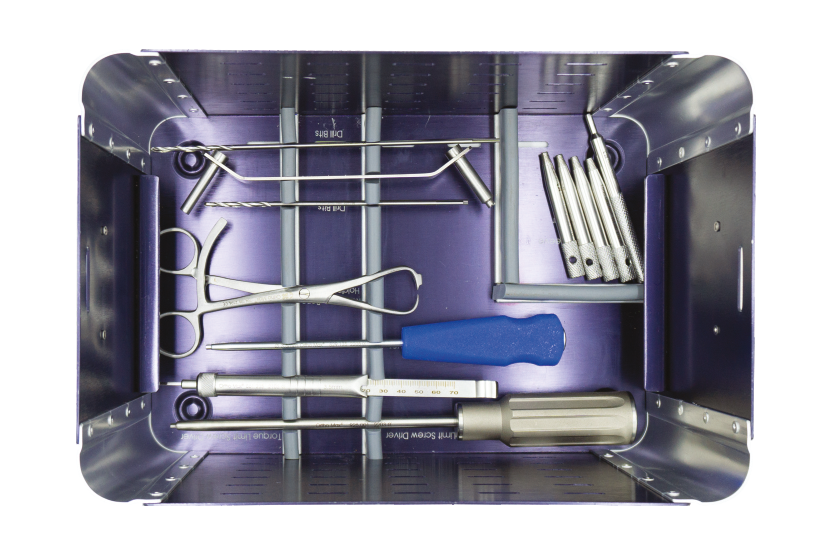

Instruments Contents	Quantity
S.S. Drill bits
2.2mm x 6"	2 Nos
3.2mm x 6"/1, 8"/1	2 Nos
2.5mm x 8"/1	1 No
2.7mm x 6"/2	2 Nos
Drill & Tap Sleeve 2.7mm x 3.5mm	1 No
Drill Sleeve For Locking Plate (DCLP) 2.2, 2.5, 3.2,mm - 2 each	6 Nos
Tommy Bar for Drill Sleeve	1 No
Depth Gauge 3.5mm	1 No
Hexagonal Screw Driver 3.5mm	1 No
Torque Limit Screw Driver 4mm	1 No
Reduction Forceps Pointed with K Wire Guide 6"	1 No
Container for UltraLock Small Fragment Set - Premium	1 No

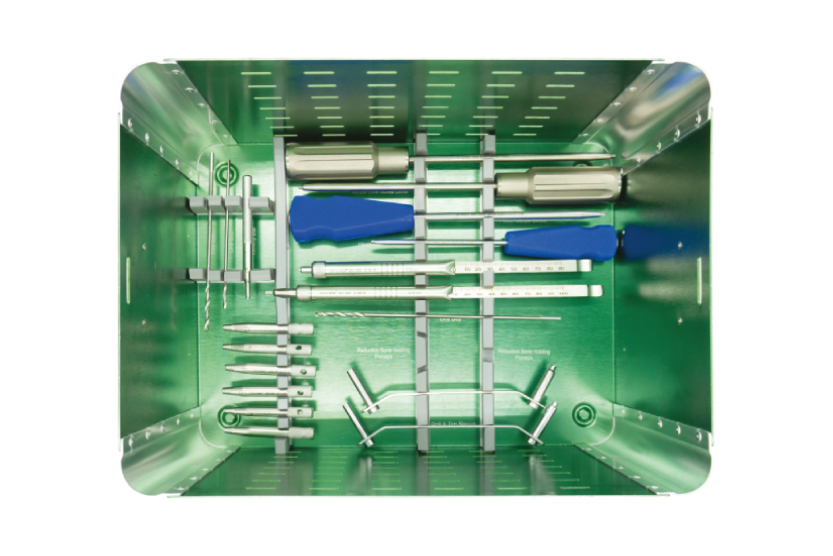

Large Fragment Set - S.S. & Titanium

x

Large Fragment Set - S.S. & Titanium

Reference: 800.002

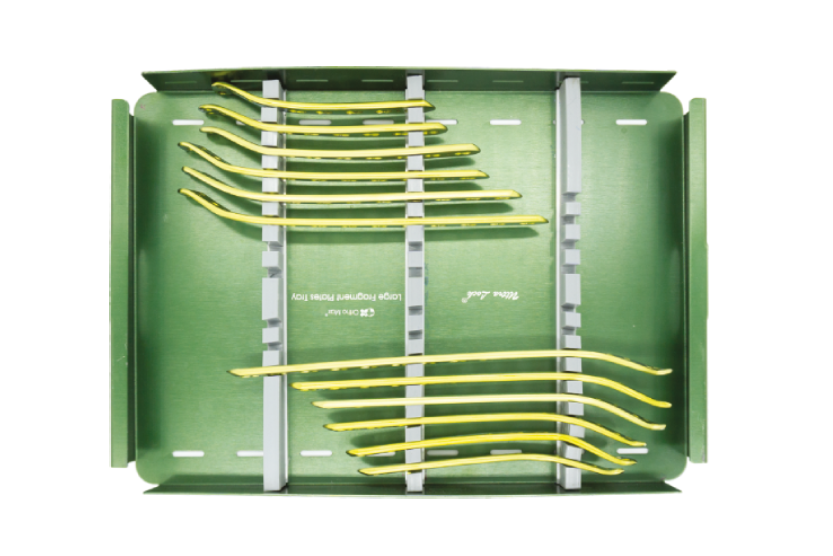

Implants Contents	Quantity
Lateral Tibial Head Locking Plates - Left & Right
5H, 6H, 7H, 8H - 1 each	8 Nos
9H, 10H, 12H - 1 each	6 Nos
Anterolateral Distal Tibia Locking Plates - Left & Right
6H, 8H - 1 each	4 Nos
10H, 12H - 1 each	4 Nos
Low Bend Distal Tibial Locking Plates - Left & Right
6H, 8H - 1 each	4 Nos
10H, 12H - 1 each	4 Nos
Prox. Medial Tibial Locking Plates - Left & Right
4H, 5H, 6H, 8H - 1 each	8 Nos
10H - 1 each	2 Nos
Distal Femur Locking Plates - Left & Right
6H, 7H, 8H - 1 each	6 Nos
9H, 10H, 12H, 14H - 1 each	8 Nos

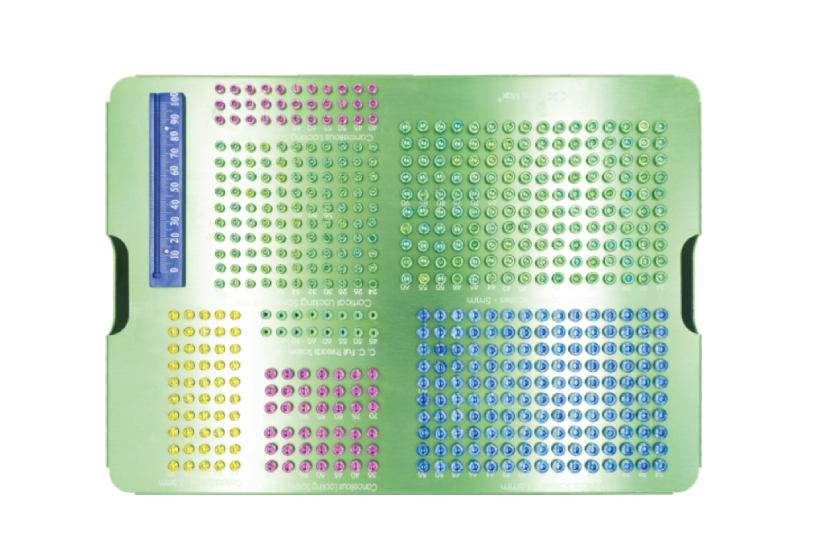

Cortical Locking Screws
4mm x 24mm to 28mm - 10 each (2mm Diff.)	30 Nos
4mm x 30mm to 40mm - 5 each (2mm Diff.)	30 Nos
4mm - 45mm to 80mm - 5 each (5mm Diff.)	40 Nos
5mm x 24mm to 42mm - 10 each (2mm Diff.)	100 Nos
5mm x 44mm to 50mm - 5 each (2mm Diff.)	20 Nos
5mm x 55mm to 90mm - 5 each (5mm Diff.)	40 Nos
Cancellous Locking Screws-Full Threads
4mm x 35mm to 85mm - 3 each (5mm Diff.)	33 Nos
5mm x 35mm to 100mm - 3 each (5mm Diff.)	42 Nos
Cortical Screws
3.5mm (20 TPI) X 22mm to 40mm - 5 each (2mm Diff.)	50 Nos
4.5mm x 24mm to 34mm - 10 each (2mm Diff.)	60 Nos
4.5mm x 36mm to 50mm - 10 each (2mm Diff.)	80 Nos
4.5mm x 55mm & 60mm - 5 each	10 Nos

Instruments Contents	Quantity
S.S. Drill bits
2.7mm x 5"	1 No
3.2mm x 6"/1, 8"/2	3 Nos
3.5mm X 8"/1, 4mm x 8"/2	3 Nos
Drill & Tap Sleeve
2.7mm x 3.5mm	1 No
3.2mm x 4.5mm	1 No
Drill Sleeve For Locking Plate (DCLP) 3.2, 3.5, 4mm - 2 each	6 Nos
Tommy Bar for Locking Sleeve	1 No
Depth Gauge 3.5mm & 4.5mm- 1 each	2 Nos
Hexagonal Screw Driver 3.5mm & 4.5mm - 1 each	2 Nos
Torque Limit Screw Driver 4mm & 5mm- 1 each	2 Nos
Reduction Forceps Pointed with K. Wire Guide 8"	1 No
Container for UltraLock Large Fragment Set - Premium	1 No

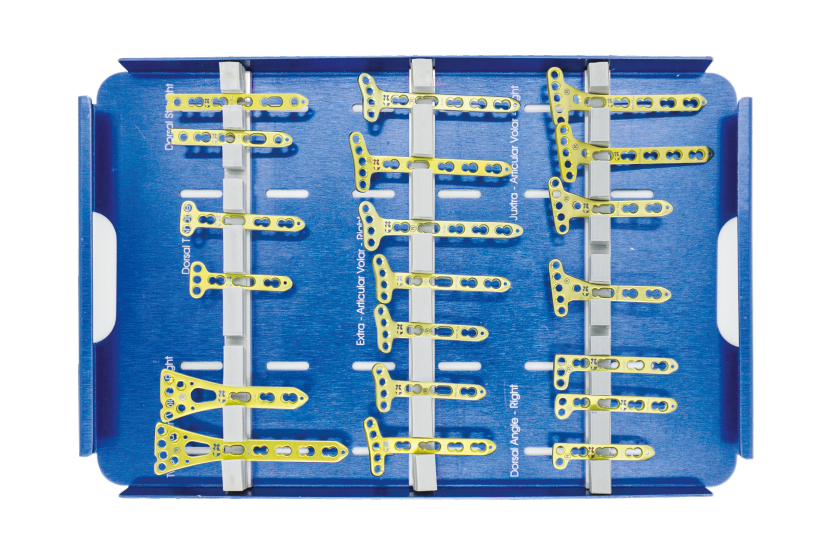

Distal Radius Locking Set - S.S. & Titanium

x

Distal Radius Locking Set - S.S. & Titanium

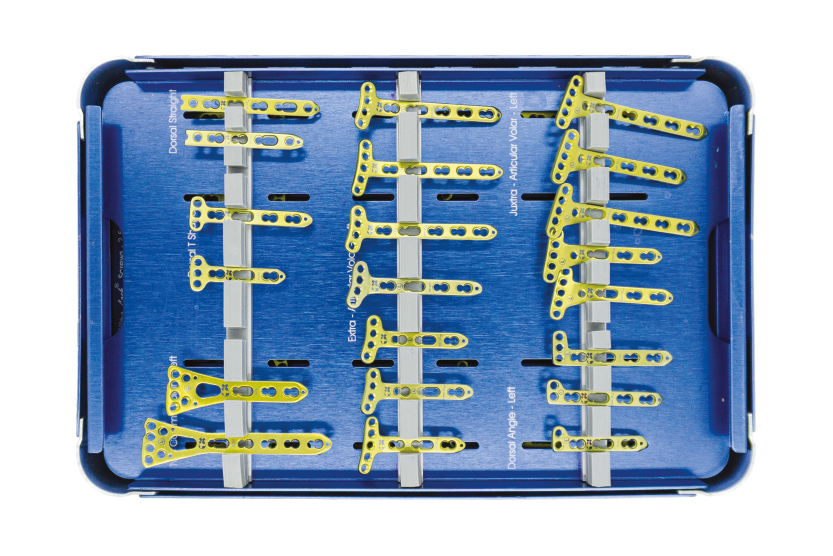

Implants Contents	Quantity
Dorsal Distal Radius Locking Plates - 2.5 / 2.7mm
- Straight 5 Holes & 6 Holes - 1 each	2 Nos
- L-90* Angled Left & Right 2 Head Hole x 3 Shaft Holes - 1 each	2 Nos
- L-90* Angled Left & Right 3 Head Hole x 4 Shaft Holes - 1 each	2 Nos
- L Oblique Angled Left & Right 3 Head Hole x 3 Shaft Holes - 1 each	2 Nos
- T Shape Angled Left & Right 3 Head Hole x 3 Shaft Holes	1 No
- T Shape Angled Left & Right 3 Head Hole x 4 Shaft Holes	1 No
Two Column Volar Distal Radius Locking Plates - Left & Right
6 Head Holes x 3 Shaft Holes - 1 each	2 Nos
6 Head Holes x 4 Shaft Holes - 1 each	2 Nos
6 Head Holes x 5 Shaft Holes - 1 each	2 Nos
Volar Distal Radius Locking Plates - 2.5 / 2.7mm
- Extra-Articular - Left & Right 4 Head Holes x 3 Shaft Holes- 1 each	2 Nos
- Extra-Articular - Left & Right 4 Head Holes x 4 Shaft Holes- 1 each	2 Nos
- Extra-Articular - Left & Right 4 Head Holes x 5 Shaft Holes- 1 each	2 Nos
- Extra-Articular - Left & Right 5 Head Holes x 3 Shaft Holes- 1 each	2 Nos
- Extra-Articular - Left & Right 5 Head Holes x 4 Shaft Holes- 1 each	2 Nos
- Extra-Articular - Left & Right 5 Head Holes x 5 Shaft Holes- 1 each	2 Nos
- Juxta-Articular - Left & Right 5 Head Holes x 3 Shaft Holes - 1 each	2 Nos
- Juxta-Articular - Left & Right 5 Head Holes x 3 Shaft Holes - 1 each	2 Nos
- Juxta-Articular - Left & Right 5 Head Holes x 4 Shaft Holes- 1 each	2 Nos
- Juxta-Articular - Left & Right 5 Head Holes x 5 Shaft Holes- 1 each	2 Nos
Cortical Locking Screws 2.5mm x 6mm To 30mm - 4 each (2mm diff.)	2 Nos
Cortical Screws 2.7mm x 10mm To 30mm - 4 each (2mm diff.)	2 Nos

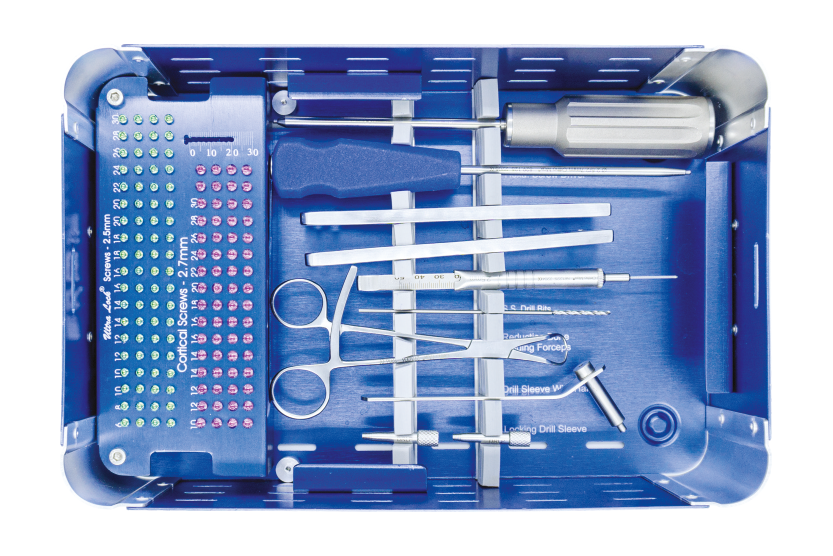

Instruments Contents	Quantity
Hexagonal Screw Drivers 2.5mm / 2.7mm	1 No
Locking Drill Sleeve 2mm	2 Nos
Drill Sleeve With Handle 2mm	1 No
S. S. Drill Bits 2mm x 5"	2 Nos
Depth Gauge 2.5mm	1 No
Reduction Bone Holding Forceps Pointed 6"	1 No
Plate Bender in Pair Small	1 No
Torque Limit Screw Driver 2.5mm / 2.7mm	1 No
Container for Distal Radius Plating Set - Premium	1 No

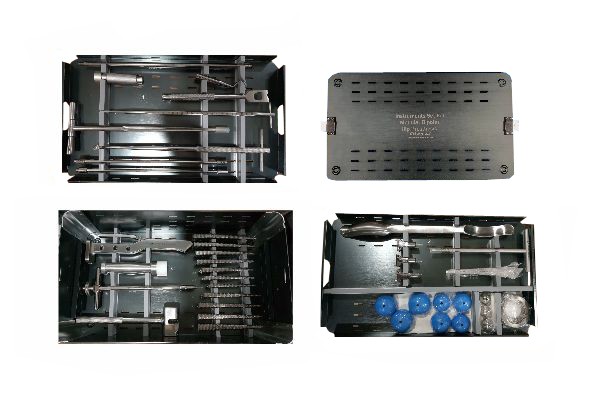

All in one Modular Set (Cemented & Uncemented)

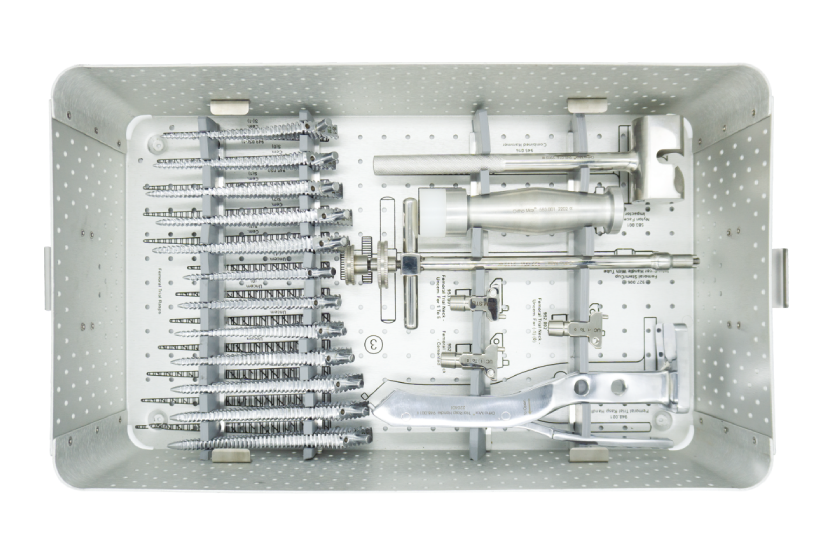

All in one "Finix^®" Modular Set (Ring Fit) System

x

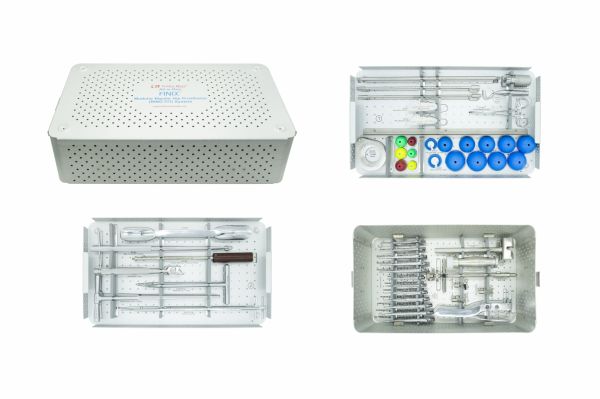

All in one "Finix®" Modular Set (Ring Fit) System

Implants Contents	Quantity
Femoral Head-12/14 Taper (SS) Small 22.2mm (-2.5)	1 No
Femoral Head-12/14 Taper (SS) Medium 22.2mm (+0)	1 No
Femoral Head-12/14 Taper (SS) Large 22.2mm (+2.5)	1 No
Femoral Head-12/14 Taper (SS) Small 28mm (-4)	1 No
Femoral Head-12/14 Taper (SS) Medium 28mm (+0)	1 No
Femoral Head-12/14 Taper (SS) Large 28mm (+4)	1 No
Modular Bipolar Head Ring Fit
37/22.2, 39/22.2, 41/22.2, 43/22.2 mm - 1 each	4 Nos
45/28, 47/28, 49/28, 51/28, 53/28 mm - 1 each	5 Nos
Modular Bipolar Head Ring Only 22.2mm	1 No
Modular Bipolar Head Ring Only 28mm	1 No
Cement Restrictor - Small, Big - 1 each	2 Nos
Centralizer - 9, 10mm - 1 each	2 Nos
Femoral Stem Uncemented
UC (-1) (minus 1), UC (0), UC (1), UC (2), UC (3), UC (4), UC (5) - 1 each	7 Nos
Femoral Stem Cemented
S(-1) (minus 1), S (0), S (1), S (2), S (3)	5 Nos

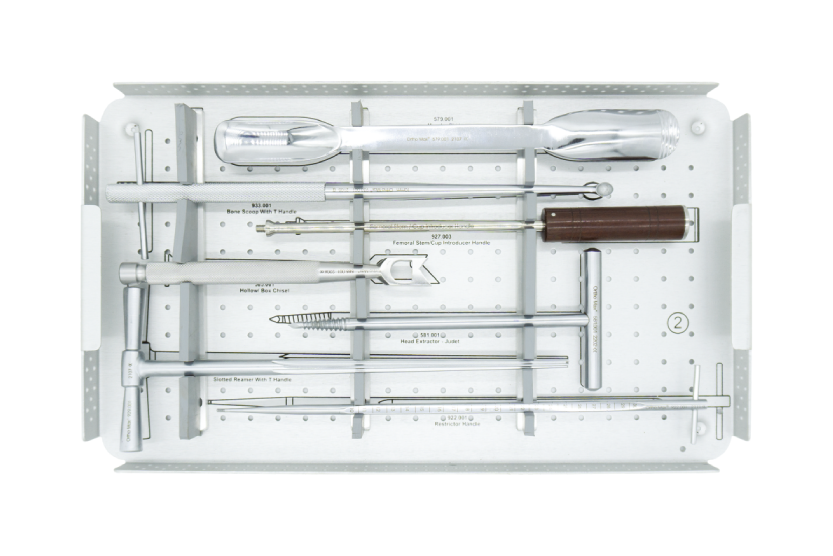

Instruments Contents	Quantity
Head Extractor - Judet	1 No
Murphy Skid	1 No
Hollow/ Box Chisel	1 No
Slotted Reamer With T Handle	1 No
Bone Scoop With T Handle - 10mm	1 No
Canal Measuring Device 9mm X 11mm	1 No
Canal Measuring Device 10mm X 12mm	1 No
Femoral Trial Rasp Handle	1 No
Femoral Trial Neck For Stem Uncem. (-1) & (0)	1 No
Femoral Trial Neck For Stem Uncem. 1 To 5	1 No
Femoral Trial Neck For Stem Cemented S(-1) To S(3)	1 No
Femoral Trial Rasp For Stem Cem.
S(-1), S(0), S(1), S(2), S(3)	5 Nos
Femoral Trial Rasp For Stem Uncem.
(-1), (0), (1), (2), (3), (4), (5)	7 Nos
Femoral Trial Head - TEFLON 22.2mm Small (-2.5) - Yellow	1 No
Femoral Trial Head - TEFLON 22.2mm Medium (+0) - Green	1 No
Femoral Trial Head - TEFLON 22.2mm Large (+2.5) - Marron	1 No
Femoral Trial Head - TEFLON 28mm Small (-4) - Yellow	1 No
Femoral Trial Head - TEFLON 28mm Medium (+0) - Green	1 No
Femoral Trial Head - TEFLON 28mm Large (+4) - Marron	1 No
Trial Size Modular Cup Ring Fit
37/22.2, 39/22.2, 41/22.2, 43/22.2 mm - 1 each	4 Nos
45/28, 47/28, 49/28, 51/28, 53/28 mm - 1 each	5 Nos
Trial Cup Ring - Teflon 22.2mm & 28mm - 1 each	2 Nos
Ring Holding forceps	1 No
Femoral Head Gauge - Set Of 9	1 No
Nylon Faced Aluminium Impactor	1 No
Combined Hammer	1 No
Neck Resection Guide ( Cem. ) & ( Uncem. ) - 1 each	2 Nos
Femoral Stem & Cup Introducer Handle With Tube	1 No
Femoral Stem/Cup Introducer Handle	1 No
Femoral Stem Positioner Handle ( Optional* )	1 No
Restrictor Handle	1 No
Trial Extractor Hook for Modular	1 No
Extractor Set - Head	1 No
Extractor Set - Rod	1 No
Container for Modular Bipolar System - Premium	1 No
