Upper Face Plating System - 1.5mm

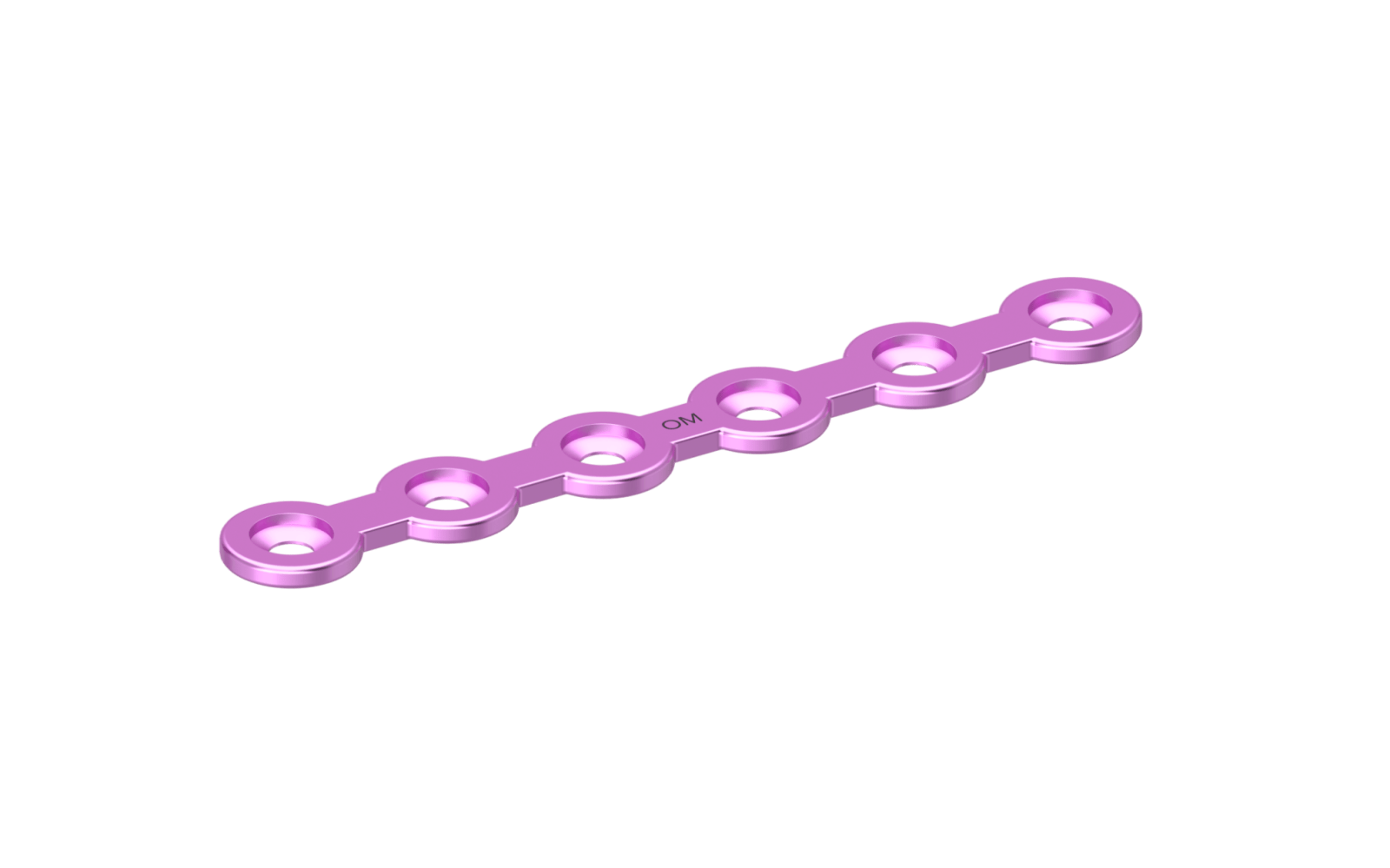

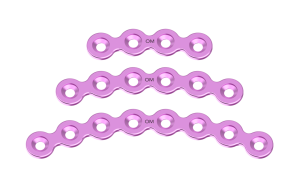

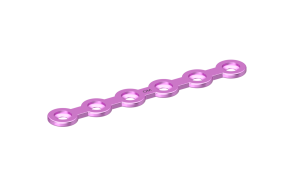

Titanium Plates - without Bar
Profile Thickness: 0.8 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
051.152
|
2 Holes
|
|
051.153
|
3 Holes
|
|
051.154
|
4 Holes
|
|
051.155
|
5 Holes
|
|
051.156
|
6 Holes
|
|
051.158
|
8 Holes
|
|
051.1510
|
10 Holes
|
|
051.1512
|
12 Holes
|
|
051.1516
|
16 Holes
|
|
051.1520
|
20 Holes
|
|
051.1530
|
30 Holes
|
|
051.1550
|
50 Holes
|

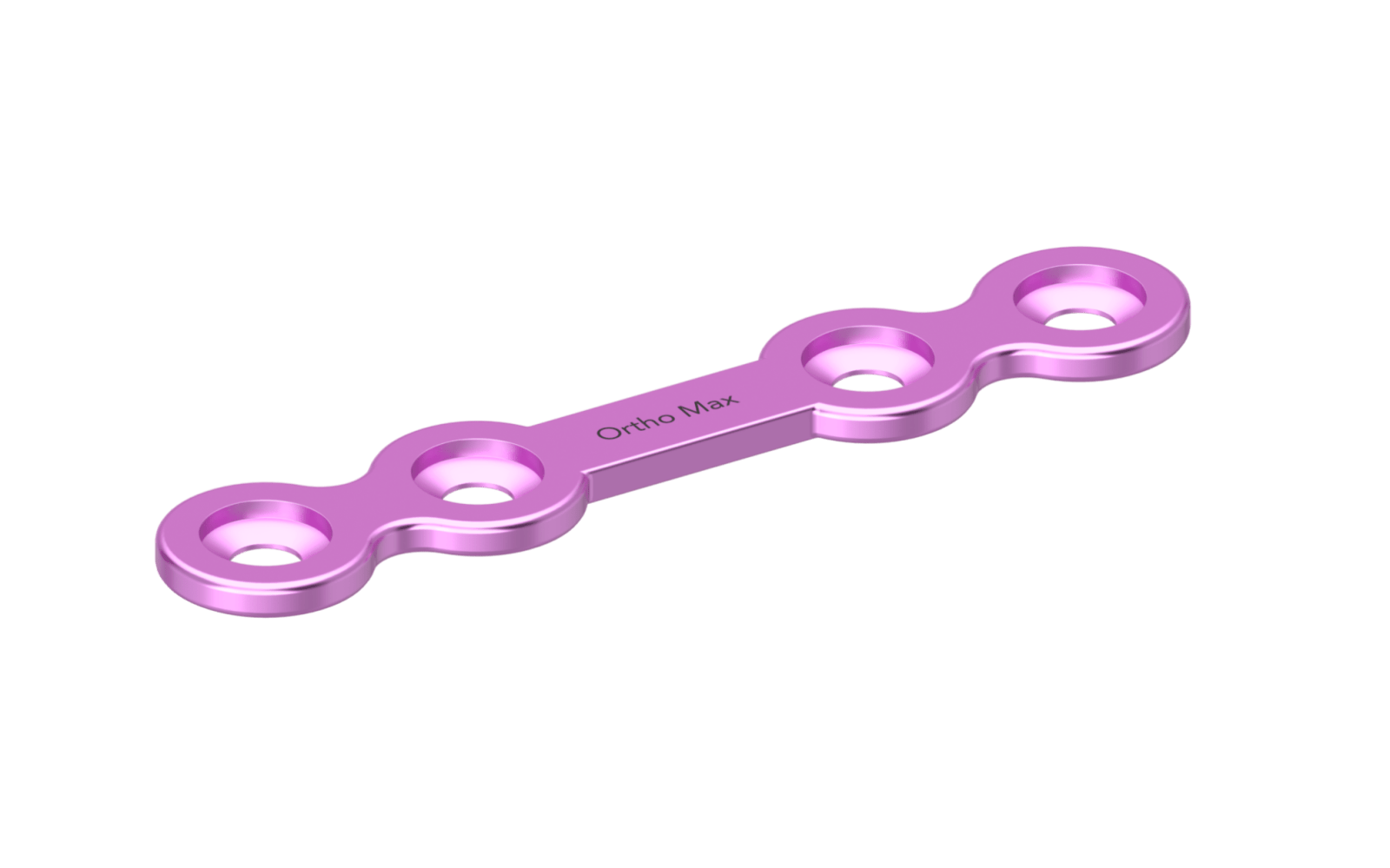

Titanium Plates - with Bar
Profile Thickness: 0.8 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
052.152
|
2 Holes
|
|
052.153
|
3 Holes
|
|
052.154
|
4 Holes
|
|
052.155
|
5 Holes
|
|
052.156
|
6 Holes
|
|
052.158
|
8 Holes
|

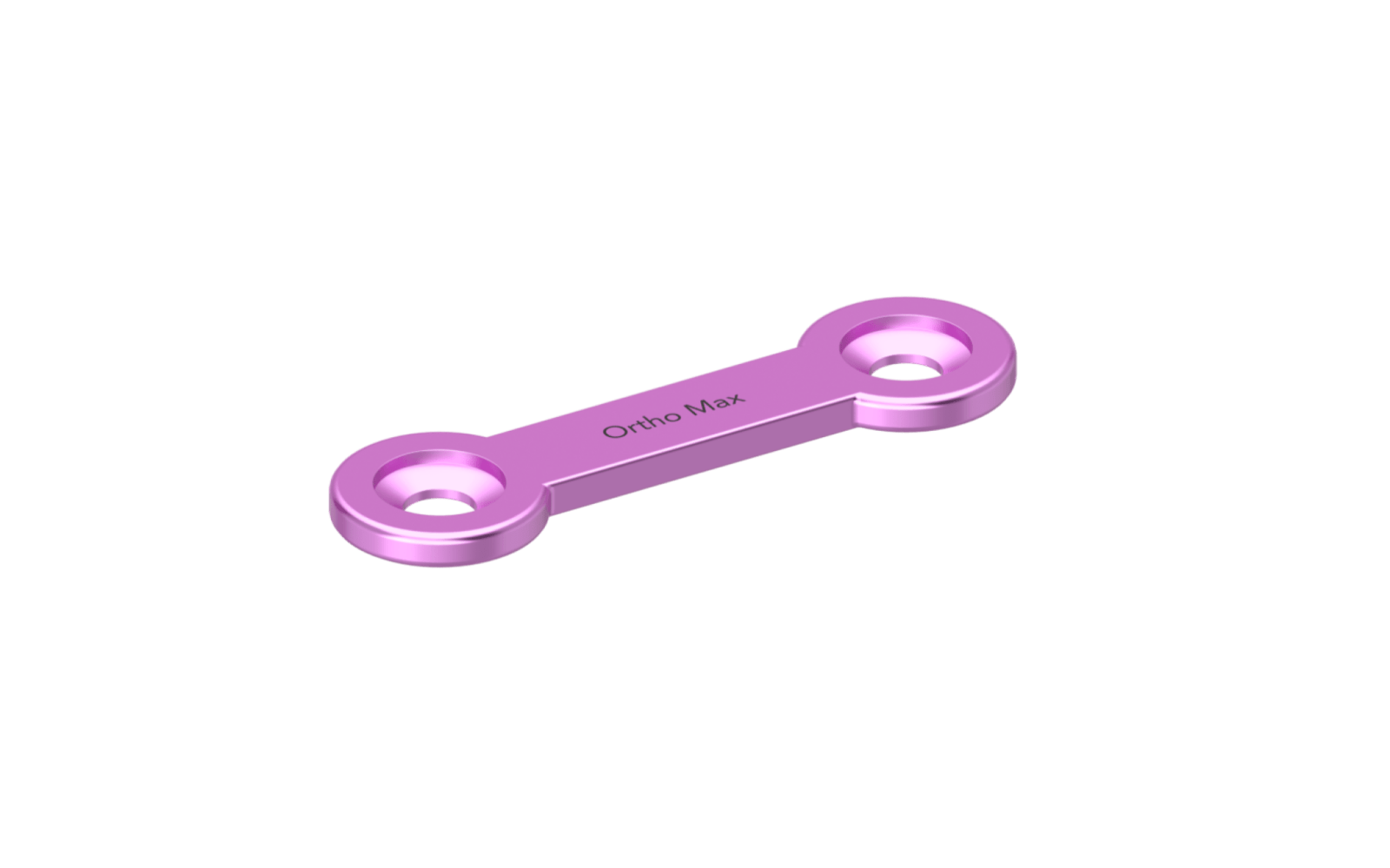

Titanium Plates - with long Bar
Profile Thickness: 0.8 mm
Material: Titanium Grade II
|
Reference
|
Size
|
|---|---|
|
052.152L
|
2 Holes
|
|
052.154L
|
4 Holes
|

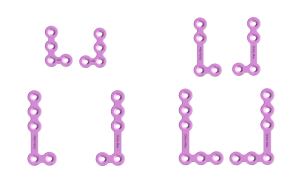

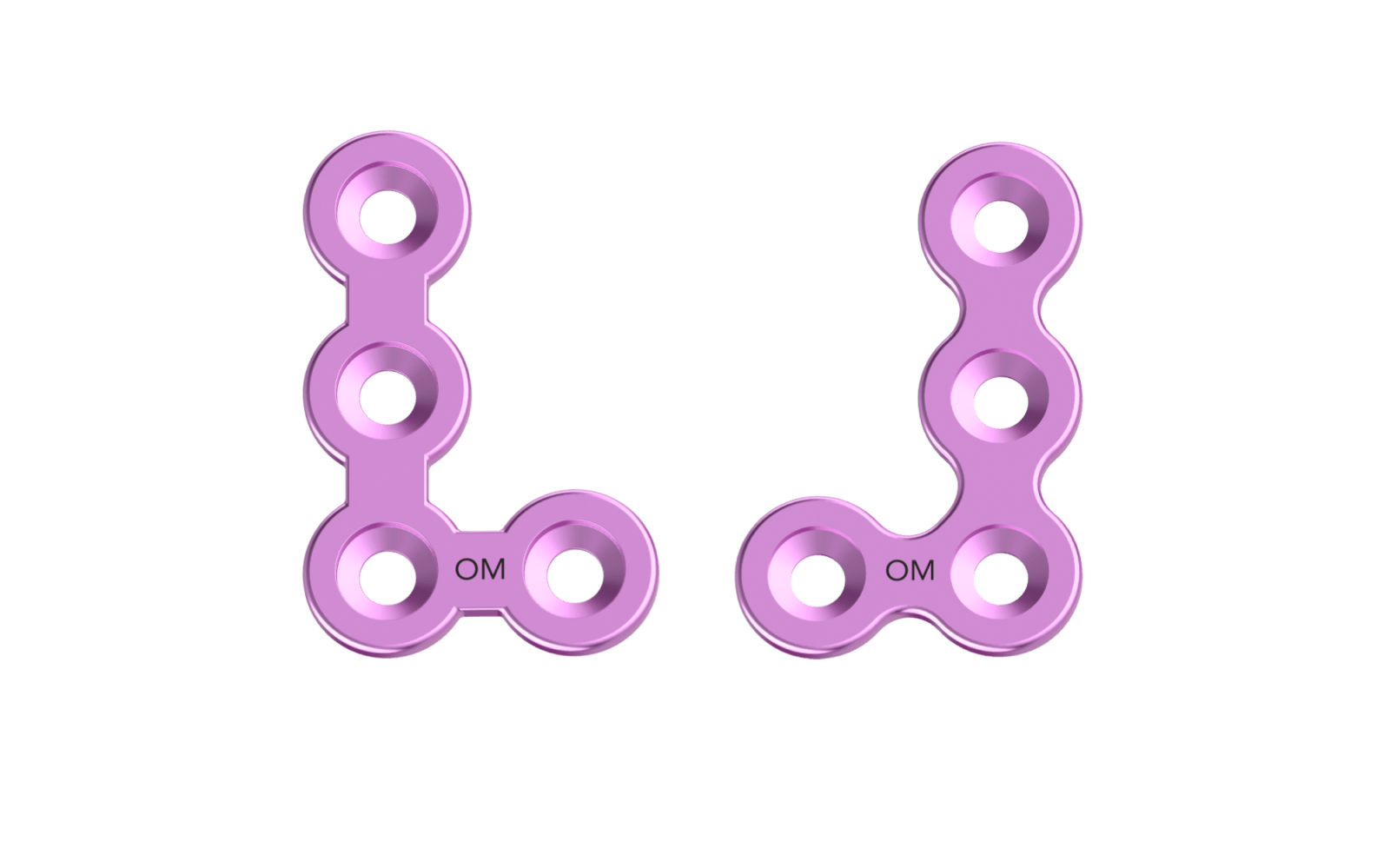

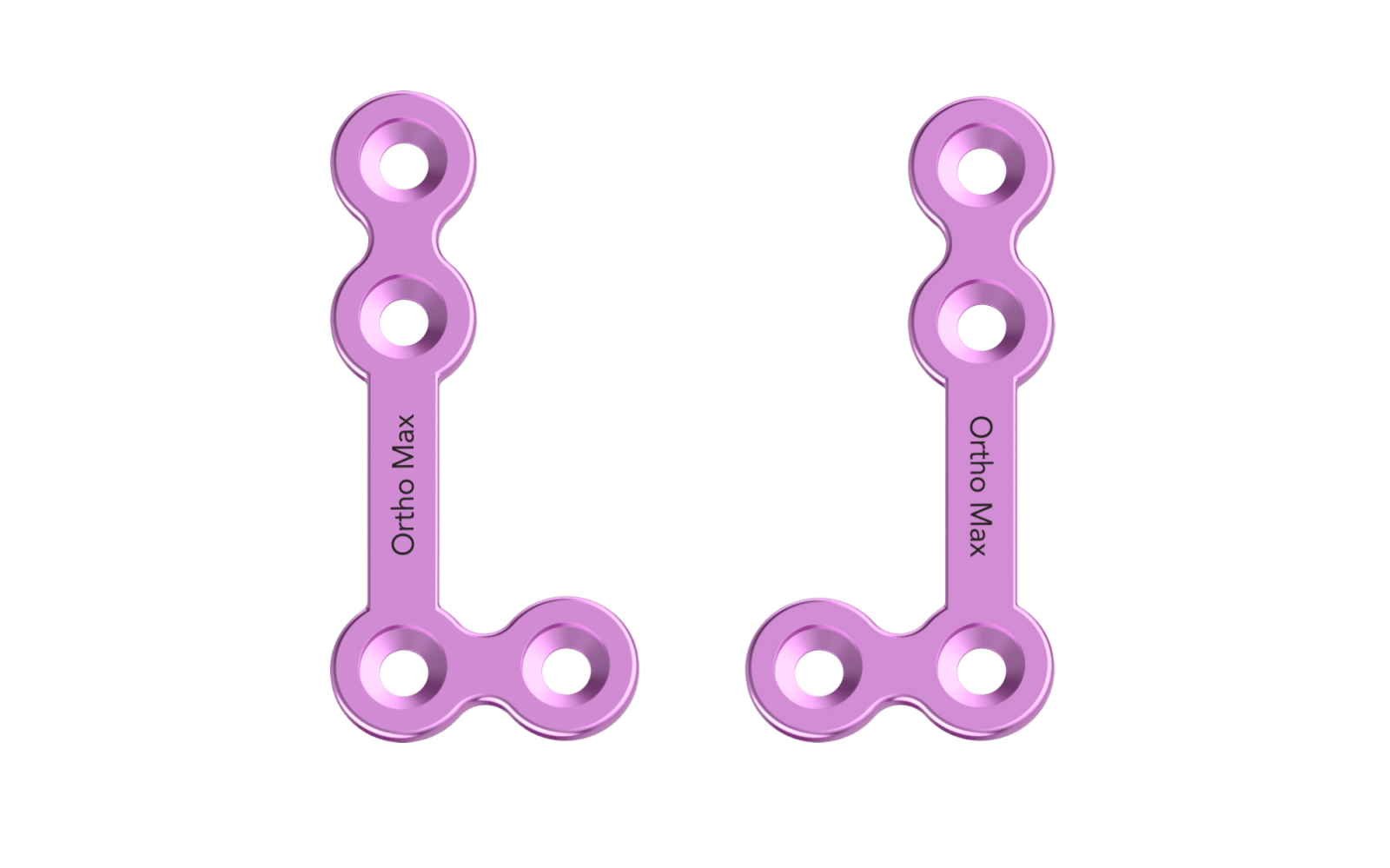

Titanium "L" Shape plate 90ᵒ
Profile Thickness: 0.8 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
053.15SR
|
Small Right
|
|
053.15SL
|
Small Left
|
Profile Thickness: 0.8 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
053.15BR
|
Big Right
|
|
053.15BL
|
Big Left
|

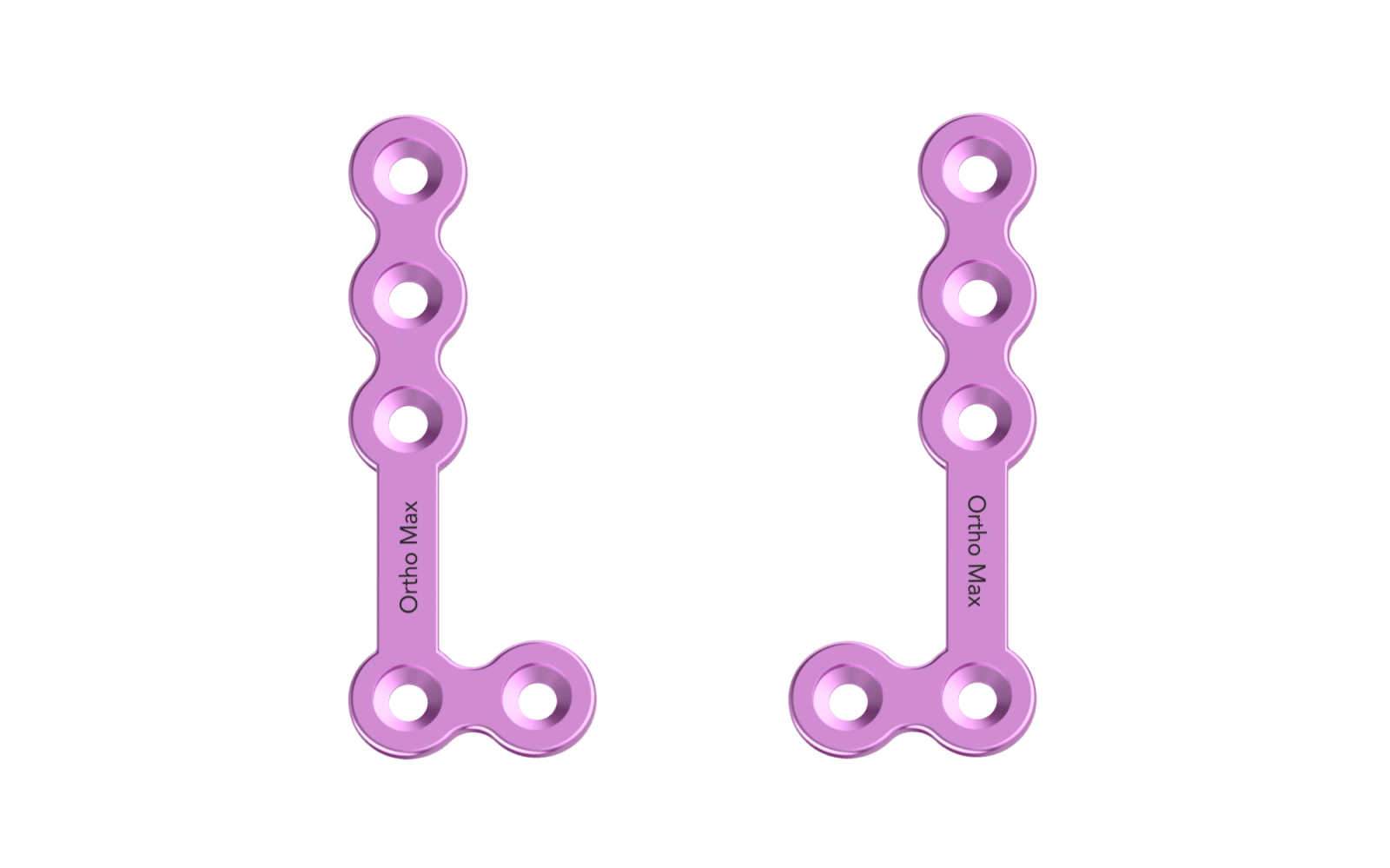

Profile Thickness: 0.8 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
053.15ER
|
XB 3+2H Right
|
|
053.15EL
|
XB 3+2H Left
|

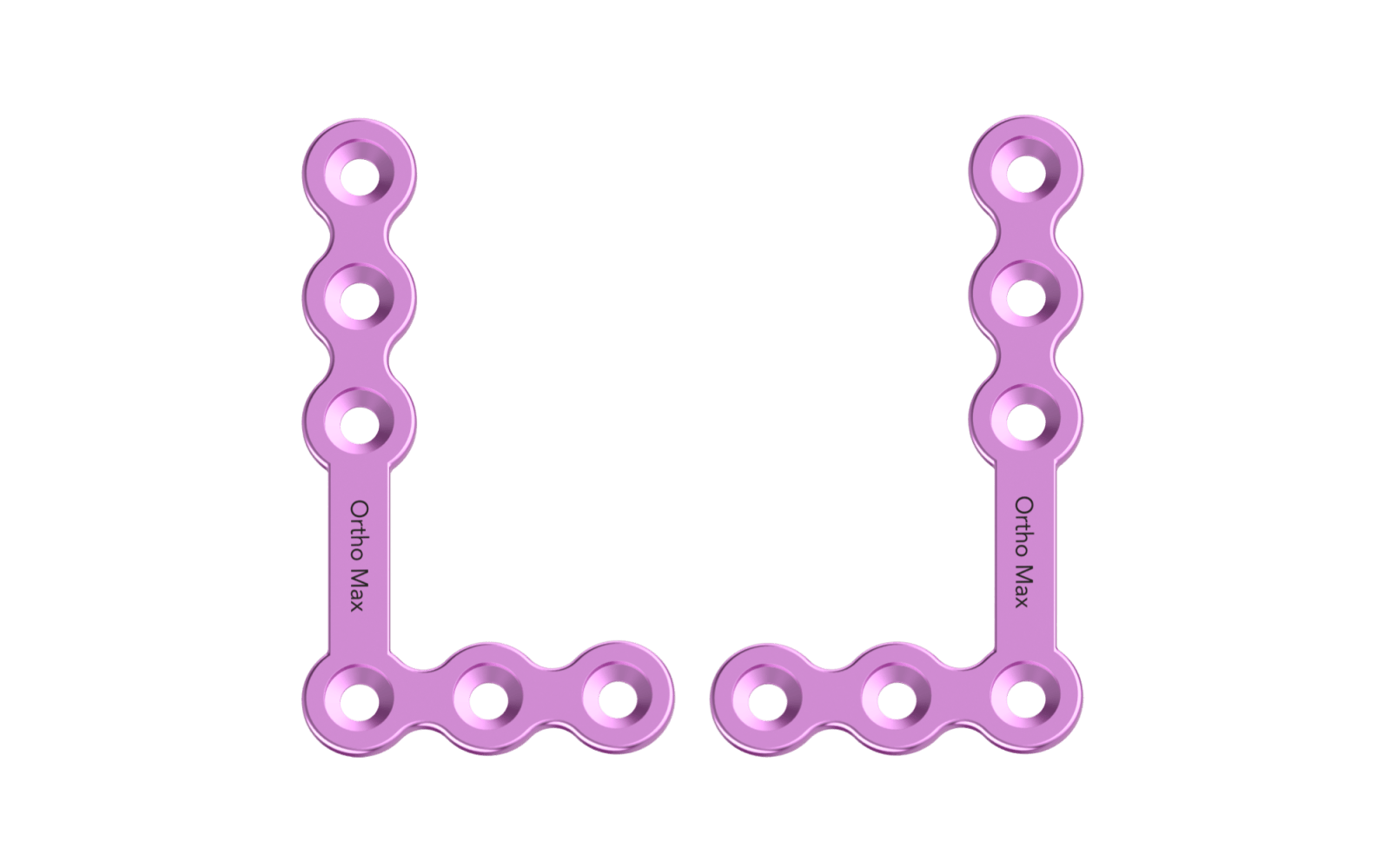

Profile Thickness: 0.8 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
053.15XR
|
XB 3+3H Right
|
|
053.15XL
|
XB 3+3H Left
|

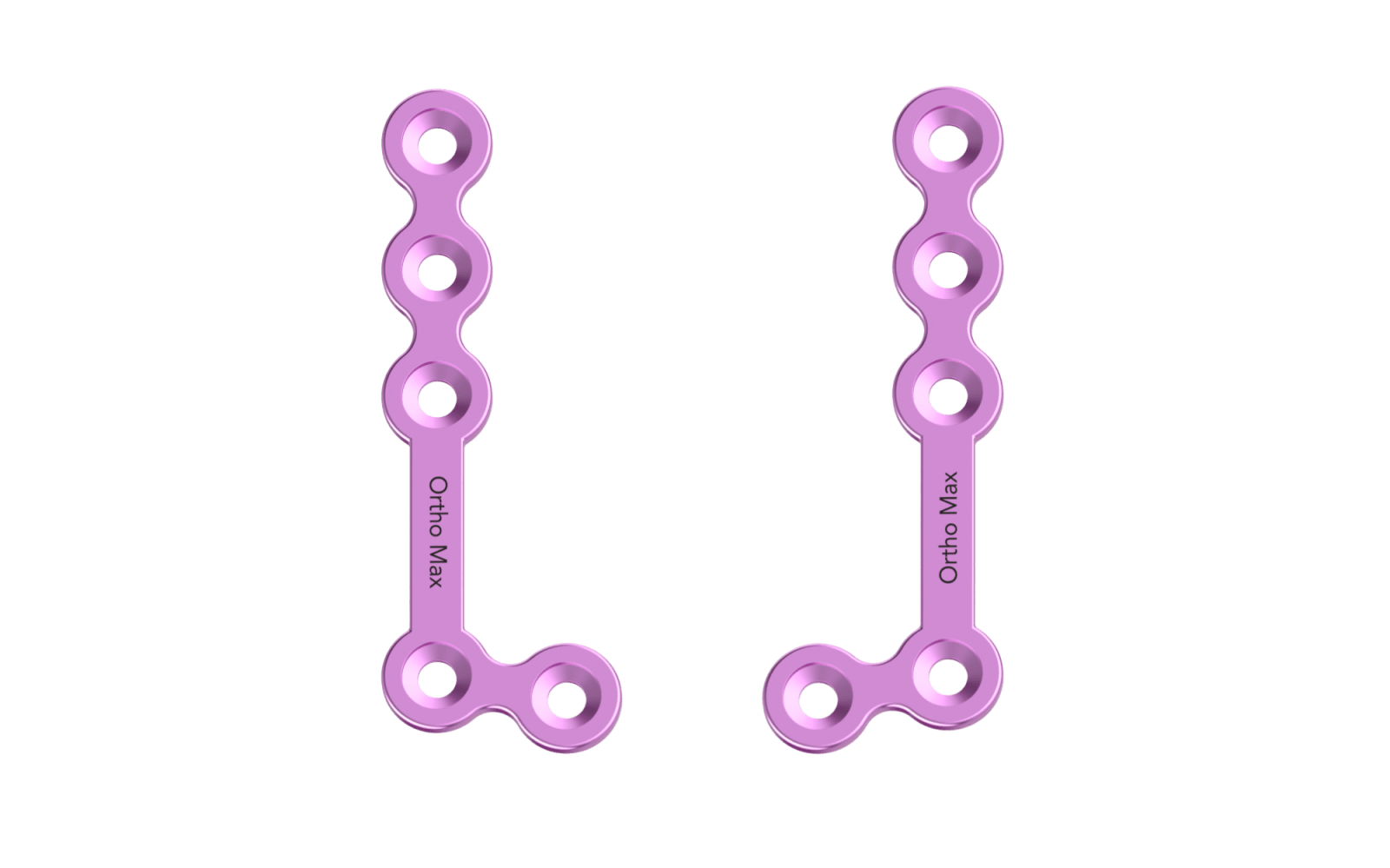

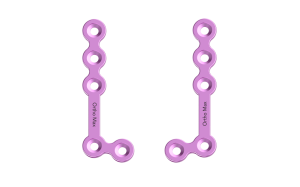

Titanium L Shape plate 100ᵒ
Profile Thickness: 0.8 mm
Material: Titanium Grade II
|
Reference
|
Size
|
|---|---|
|
047.15ER
|
XB 3+2H - Right
|
|
047.15EL
|
XB 3+2H - Left
|

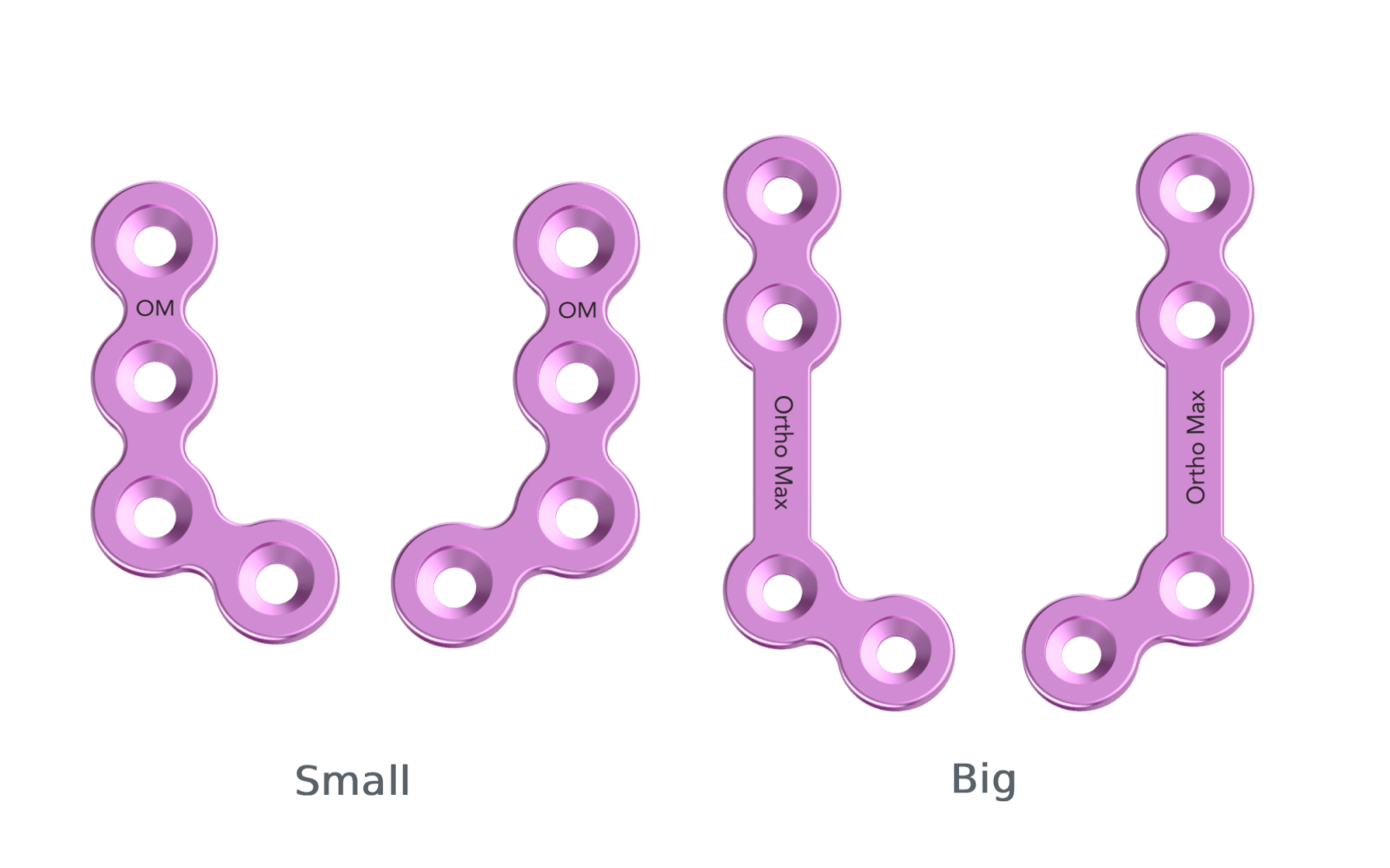

Titanium L Shape plate 120ᵒ
Profile Thickness: 0.8 mm
Material: Titanium Grade II & S.S. 316L
Small
|
Reference
|
Size
|
|---|---|
|
054.15SR
|
Small - Right
|
|
054.15SL
|
Small - Left
|
Big
|
Reference
|
Size
|
|---|---|
|
054.15BR
|
Big - Right
|
|
054.15BL
|
Big - Left
|

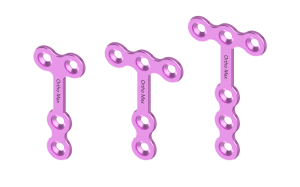

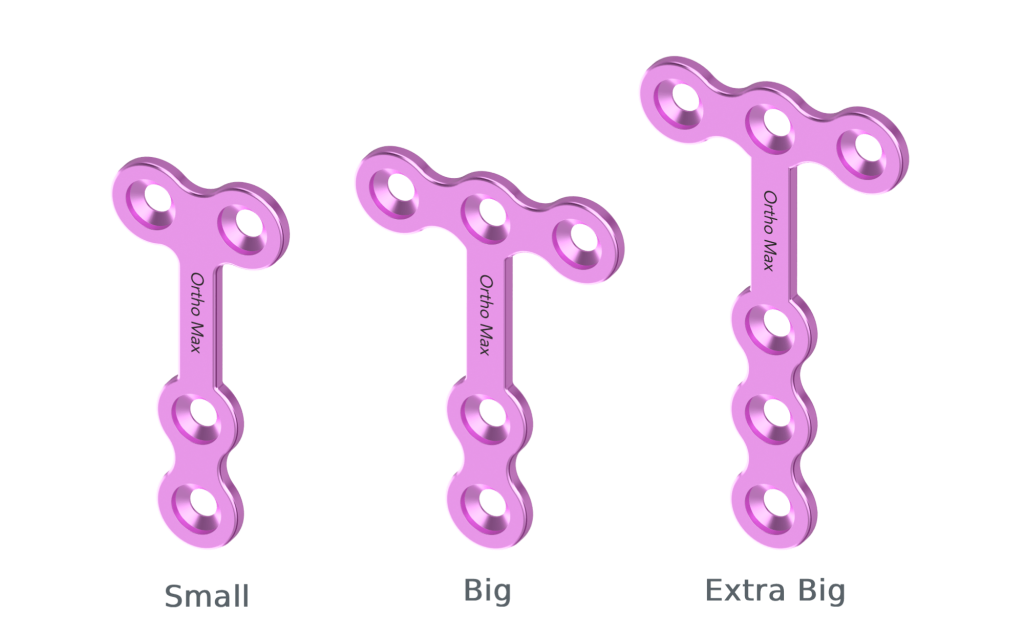

Titanium T shape Plates
Profile Thickness: 0.8 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
055.15S
|
Small
|
|
054.15B
|
Big
|
|
054.15X
|
Extra Big
|

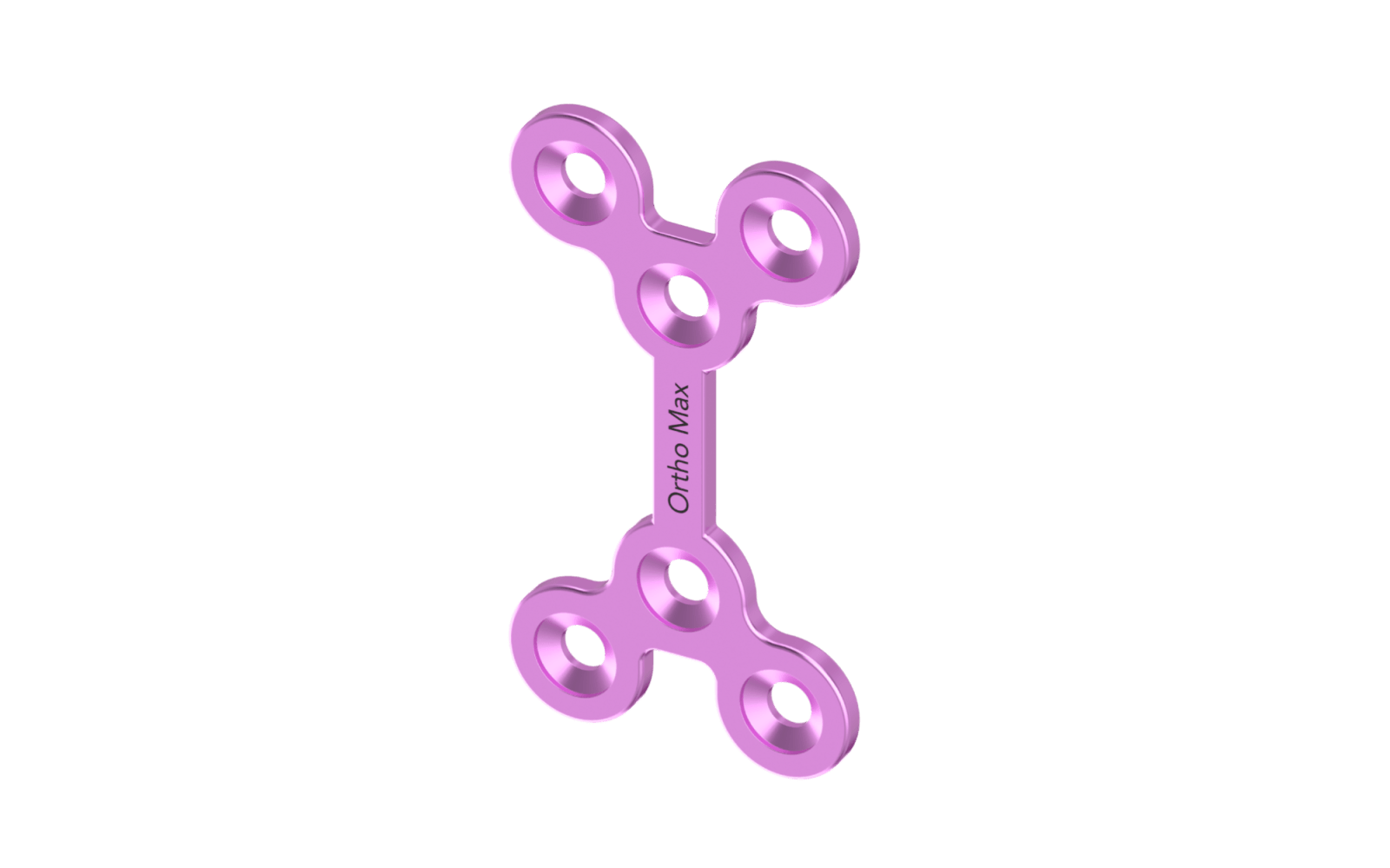

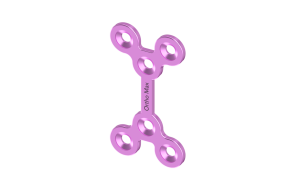

Titanium Double Y shape Plates
Profile Thickness: 0.8 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
058.150
|
6 Holes
|

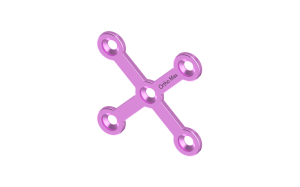

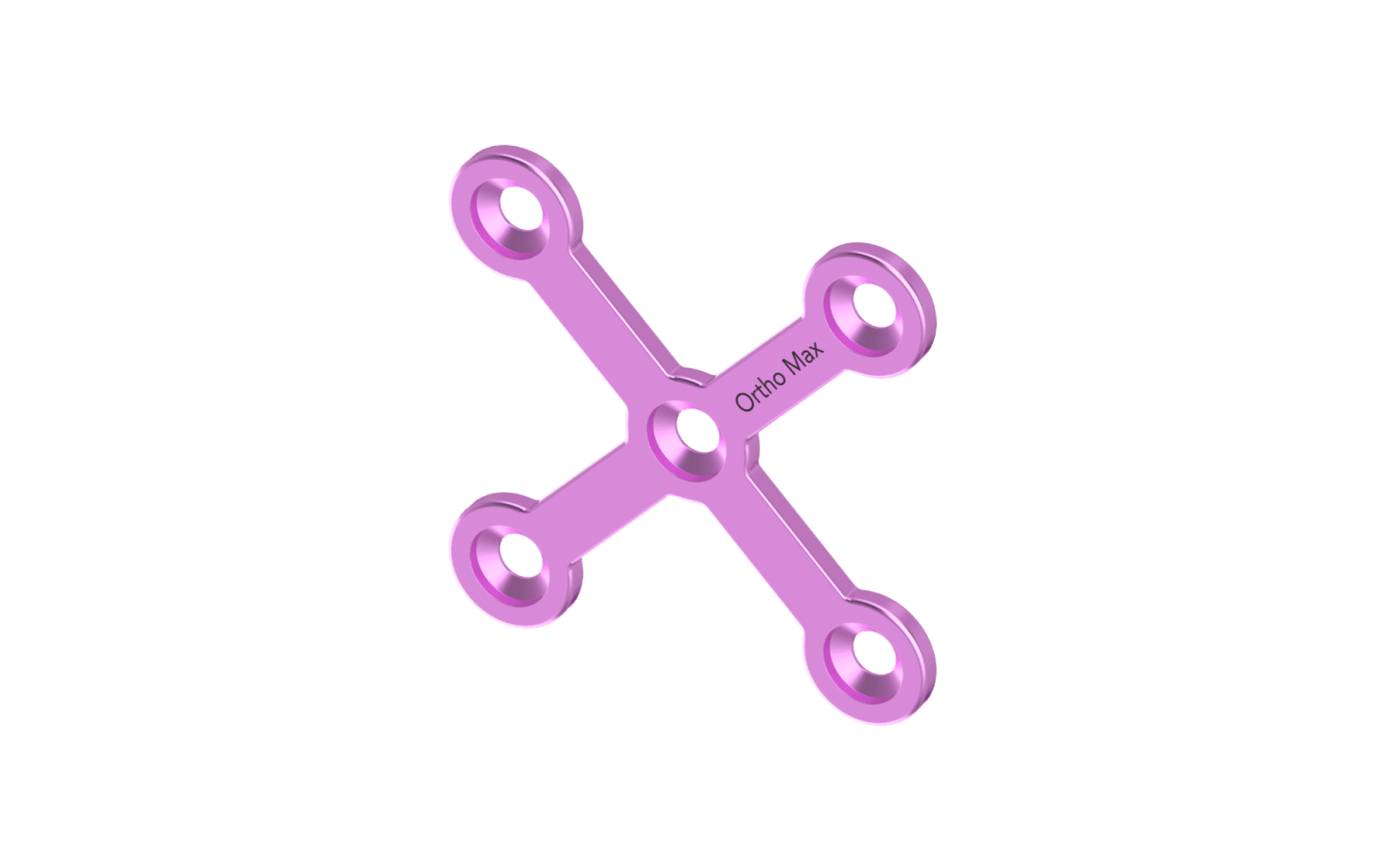

Titanium X shape Plates
Profile Thickness: 0.8 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
|---|
|
062.150
|

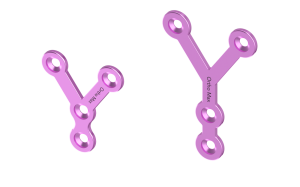

Titanium Y shape Plates
Profile Thickness: 0.8 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
057.15S
|
Small
|
|
057.15B
|
Big
|

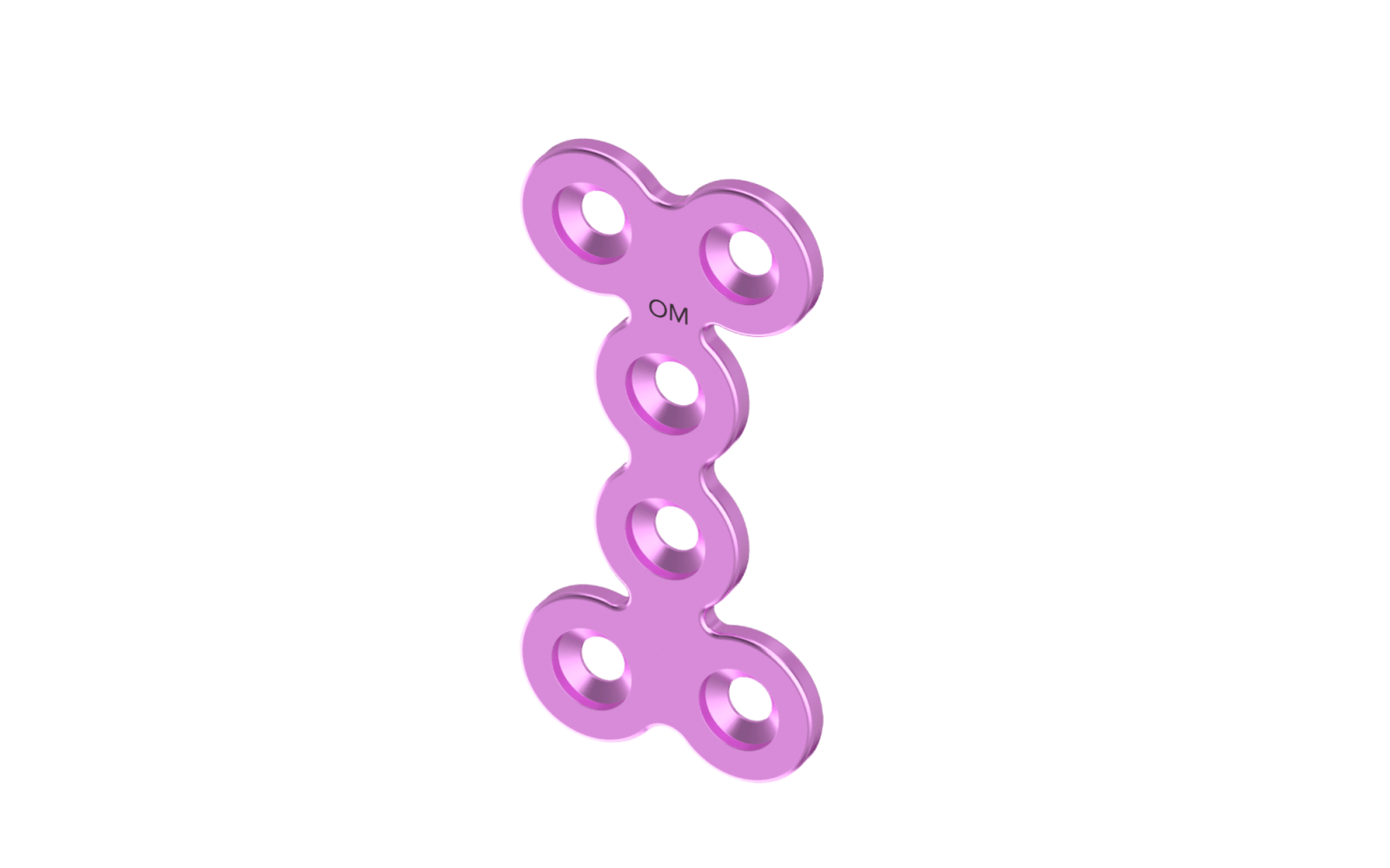

Titanium I shape Plates
Profile Thickness: 0.8 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
|---|
|
056.150
|

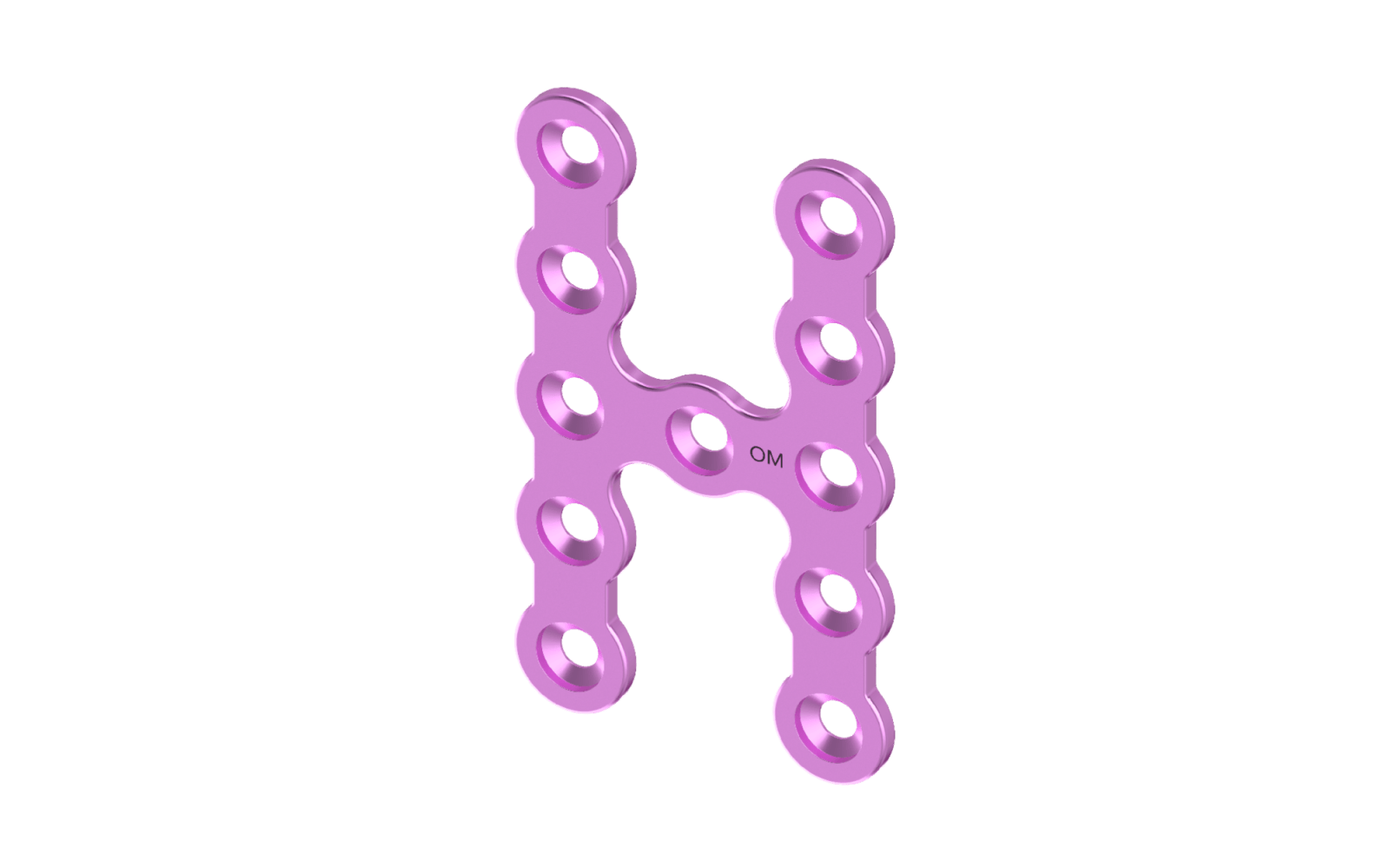

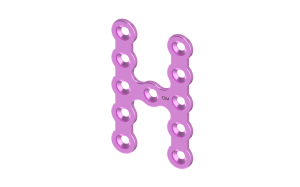

Titanium H shape Plates
Profile Thickness: 0.8 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
|---|
|
059.150
|

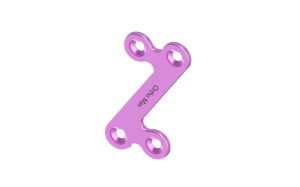

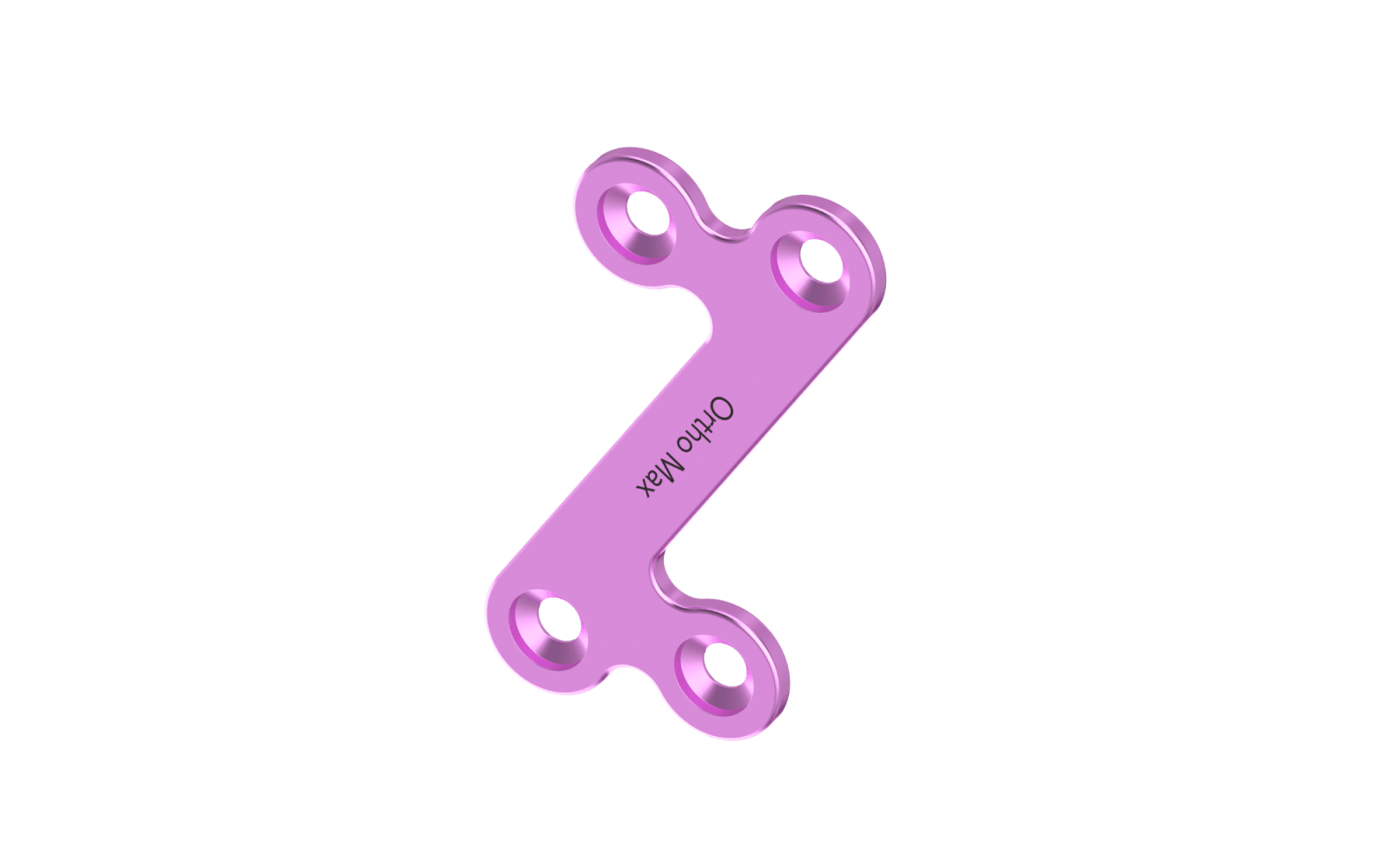

Titanium Z shape Plates
Profile Thickness: 0.8 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
|---|
|
063.150
|

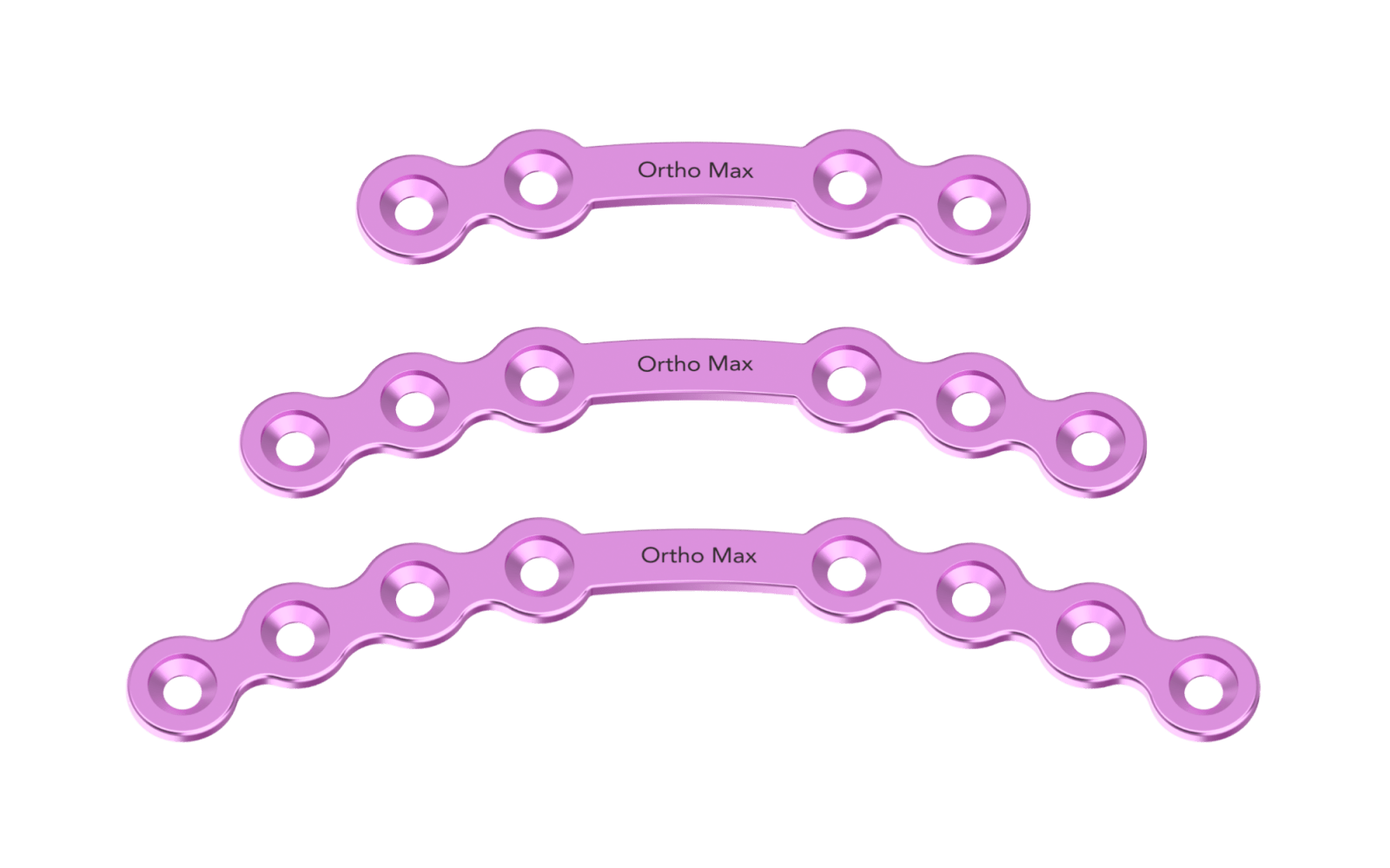

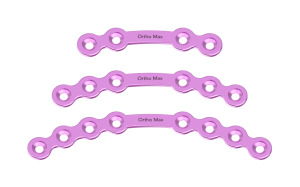

Titanium Orbita Plates with bar
Profile Thickness: 0.8 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
064.154
|
4 Holes
|
|
064.156
|
6 Holes
|
|
064.158
|
8 Holes
|

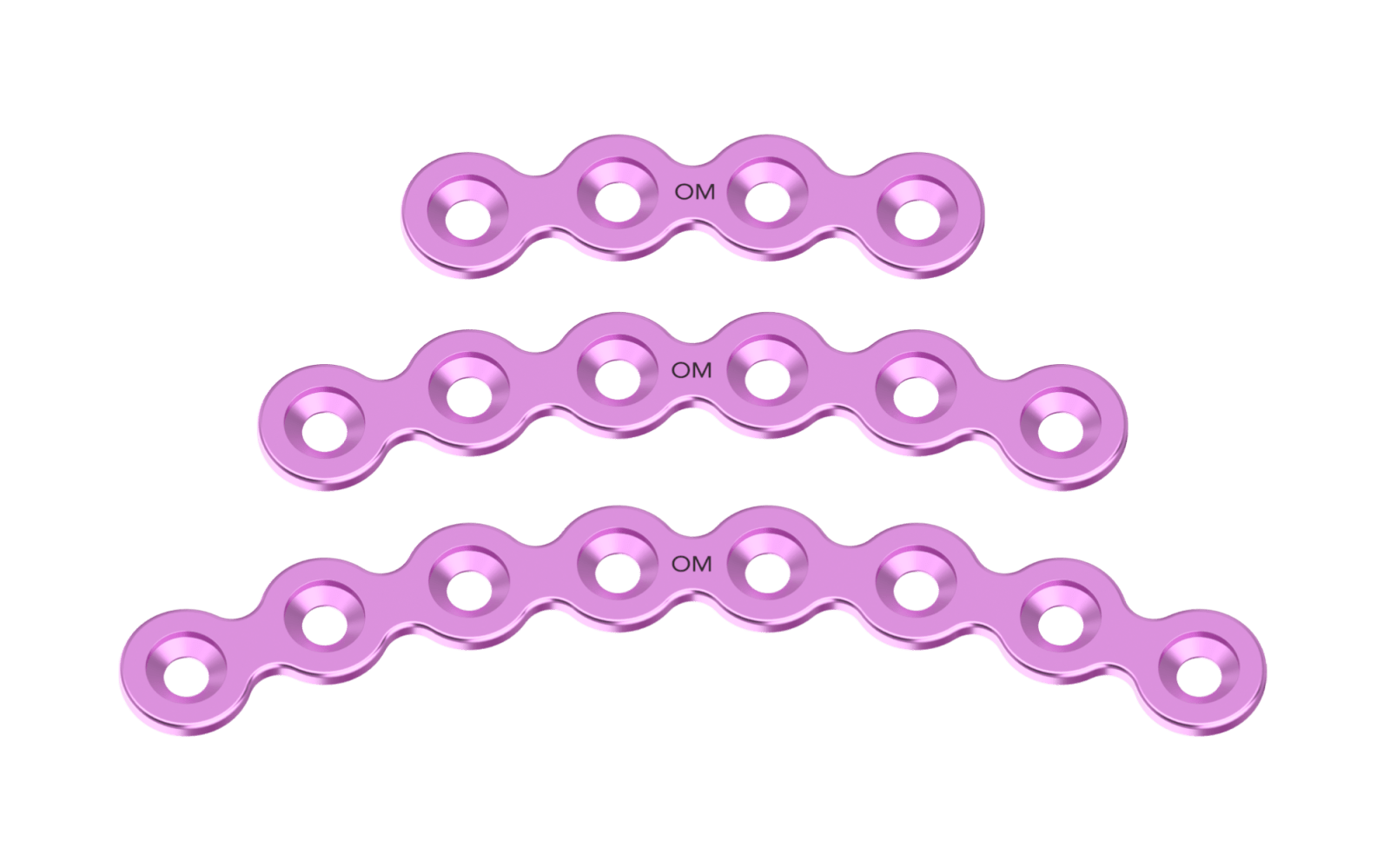

Titanium Orbita Plates without bar
Profile Thickness: 0.8 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
065.154
|
4 Holes
|
|
065.156
|
6 Holes
|
|
065.158
|
8 Holes
|

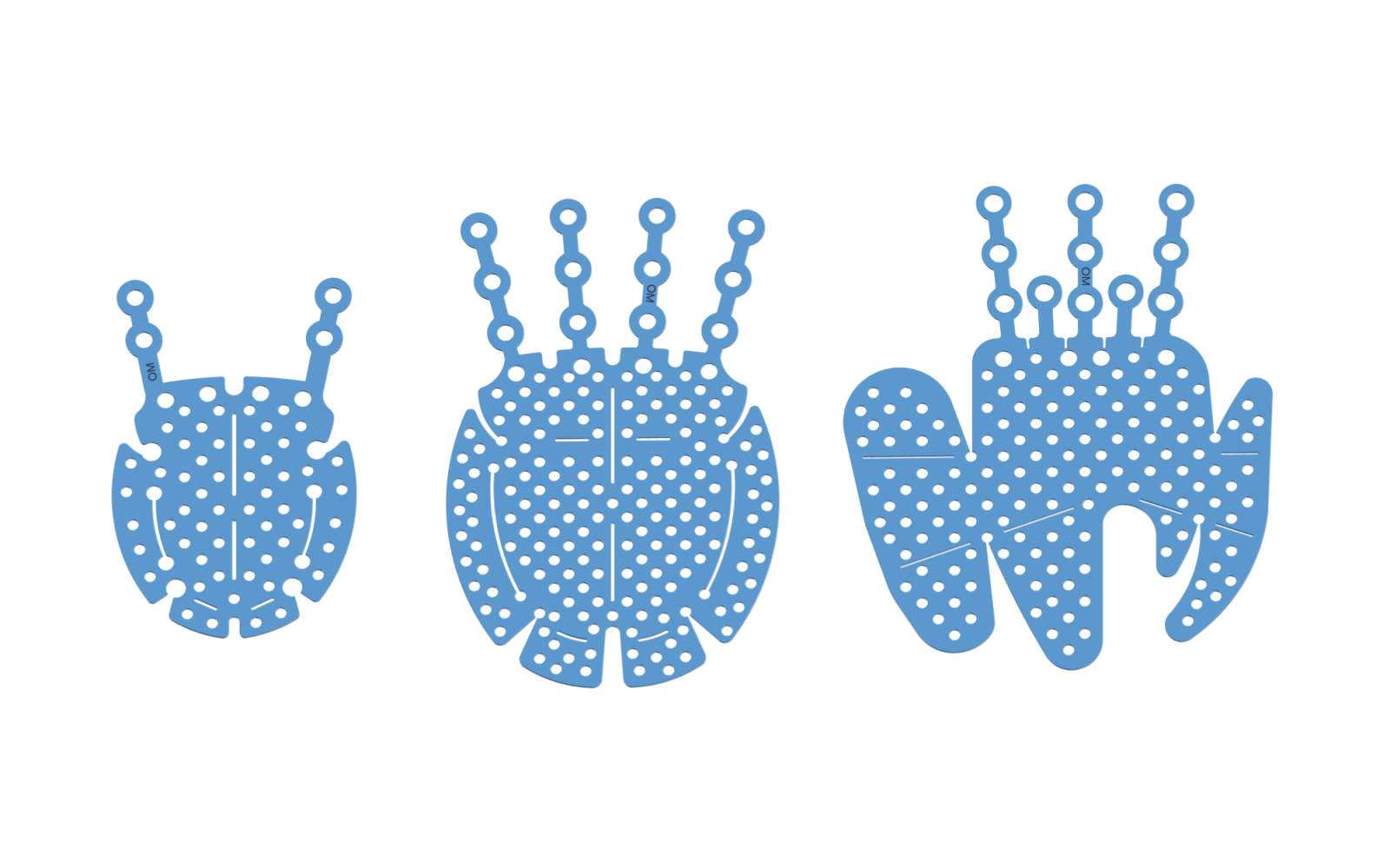

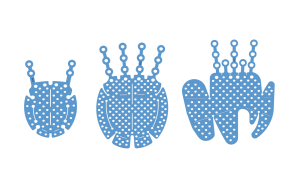

Titanium Orbital Floor Plates
Profile Thickness: 0.4 mm
Material: Titanium Grade II & S.S. 316L
|
Reference
|
Size
|
|---|---|
|
1507.001
|
Small
|
|
1507.002
|
Medium
|
|
1507.003
|
Big
|

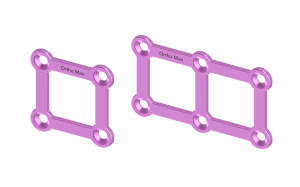

Titanium Square Plates
Profile Thickness: 0.8 mm
Material: Titanium Grade II
|
Reference
|
Size
|
|---|---|
|
046.1522
|
2 X 2 Holes
|
|
046.1523
|
2 X 3 Holes
|
|
046.1524
|
2 X 4 Holes
|

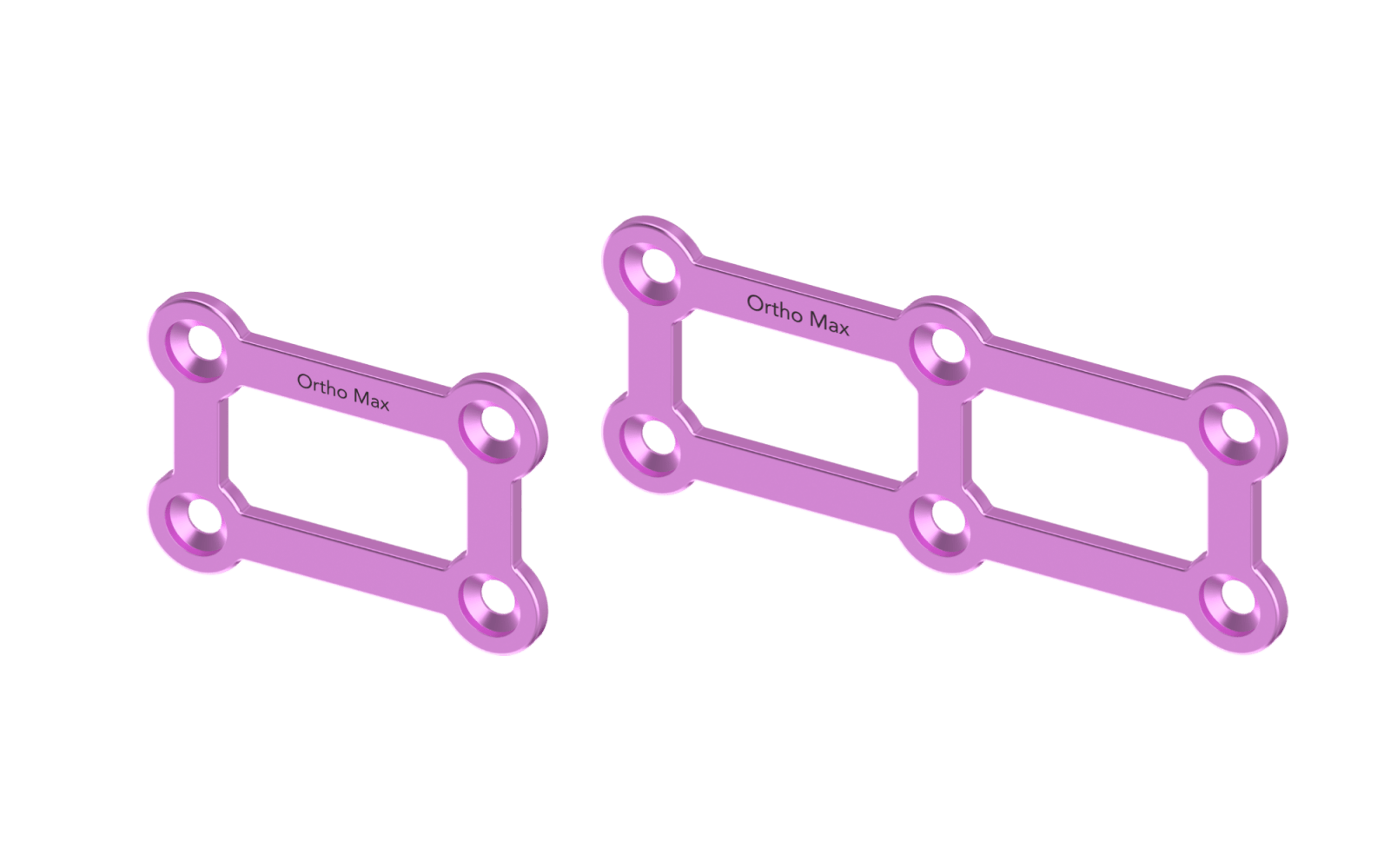

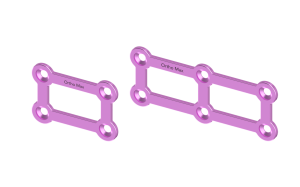

Titanium 3D Plates
Profile Thickness: 0.8 mm
Material: Titanium Grade II
|
Reference
|
Size
|
|---|---|
|
066.1522
|
2 X 2 Holes
|
|
066.1523
|
2 X 3 Holes
|
|
066.1524
|
2 X 4 Holes
|

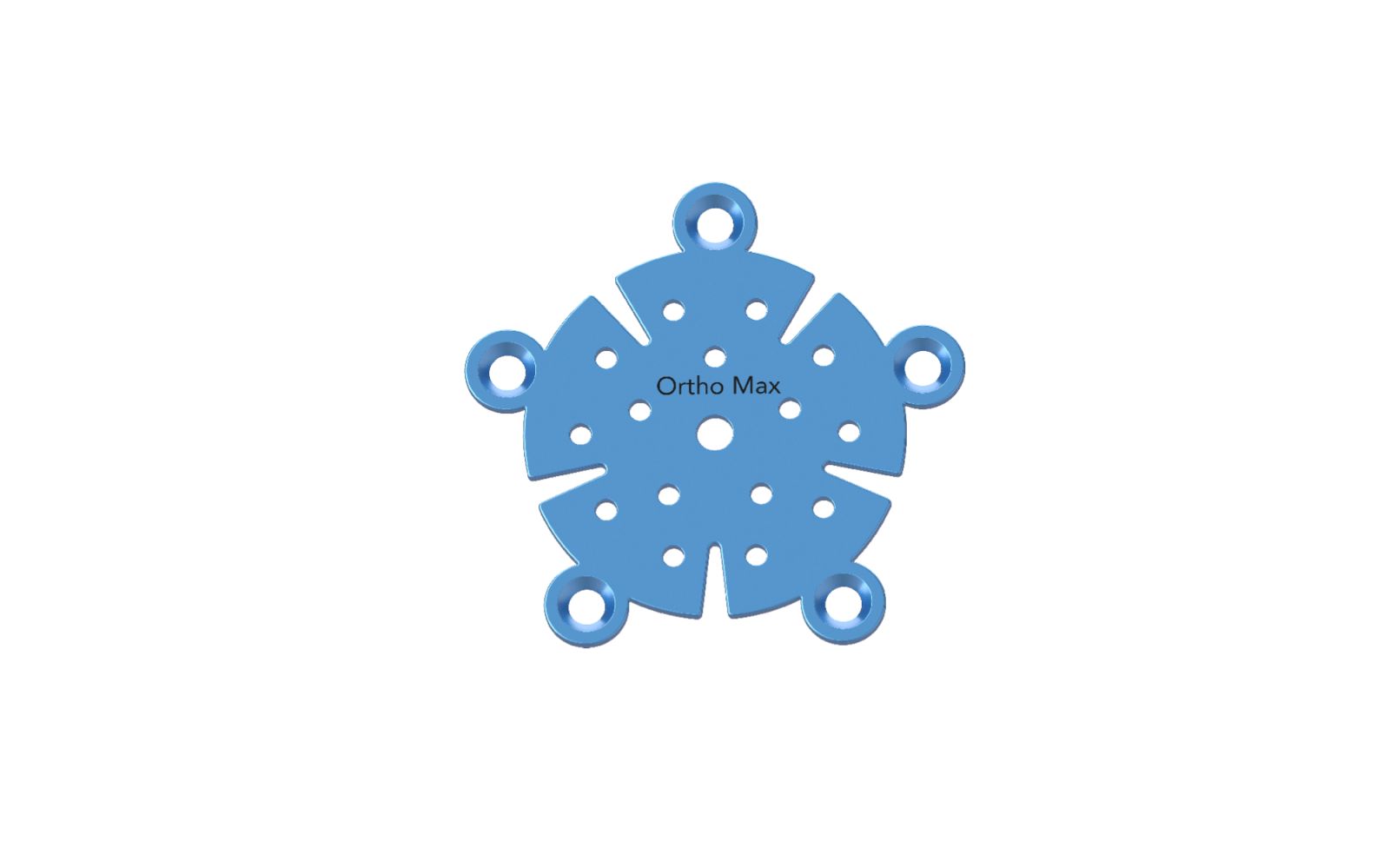

Titanium Micro Burr Holes Cover plates
Profile Thickness: 0.6 mm
Material: Titanium Grade II
|
Reference
|
Size
|
|---|---|
|
1526.120
|
12mm
|

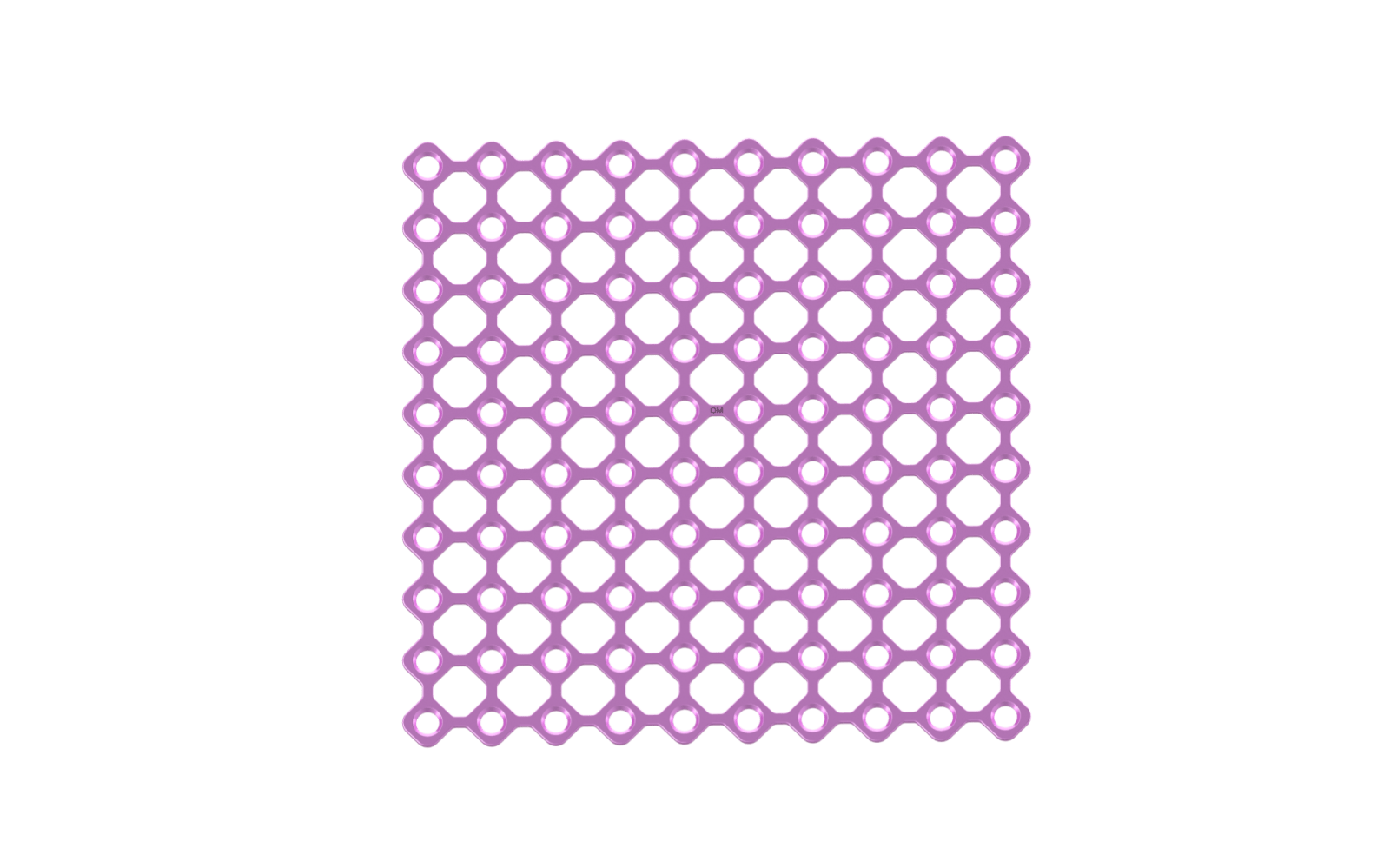

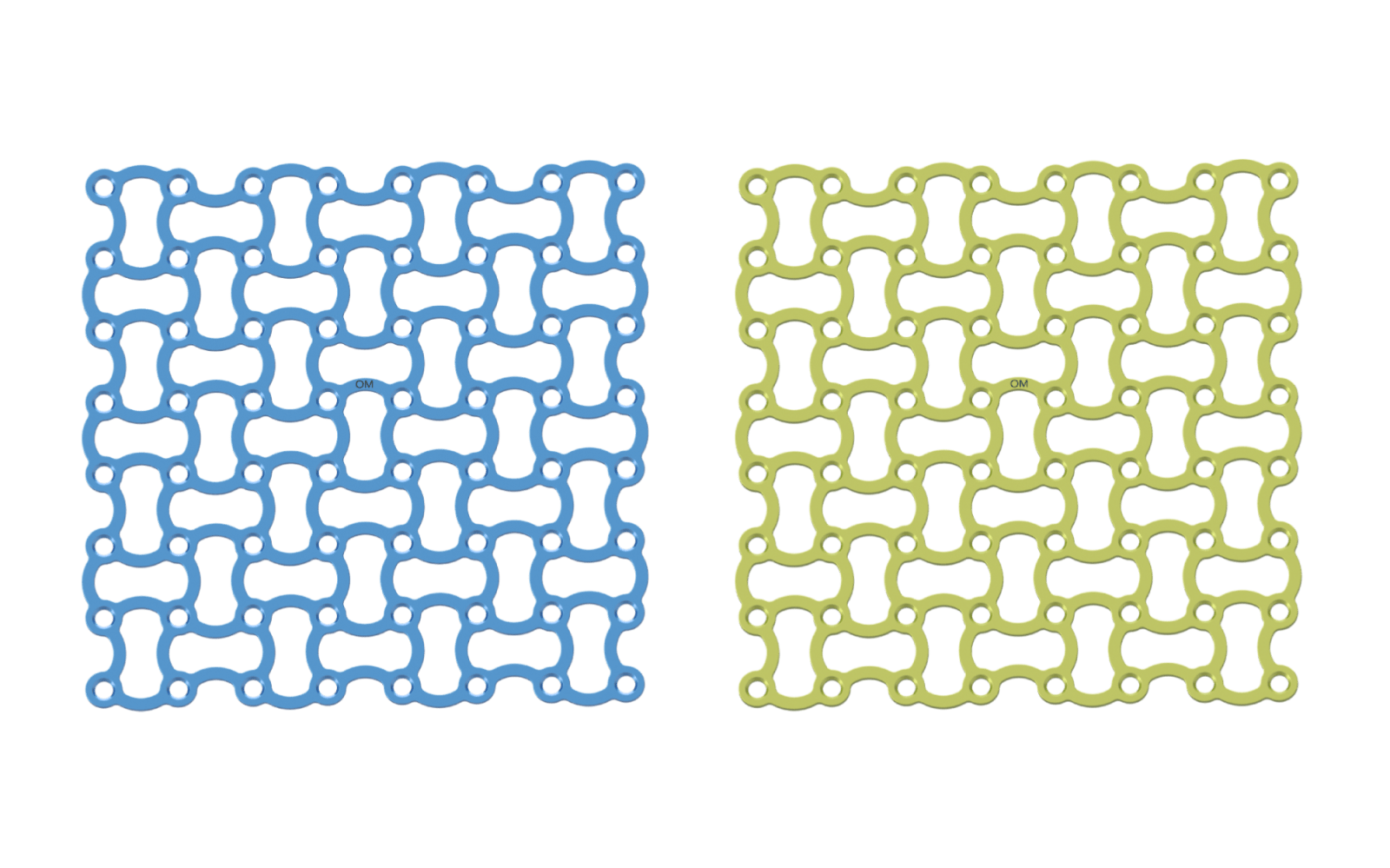

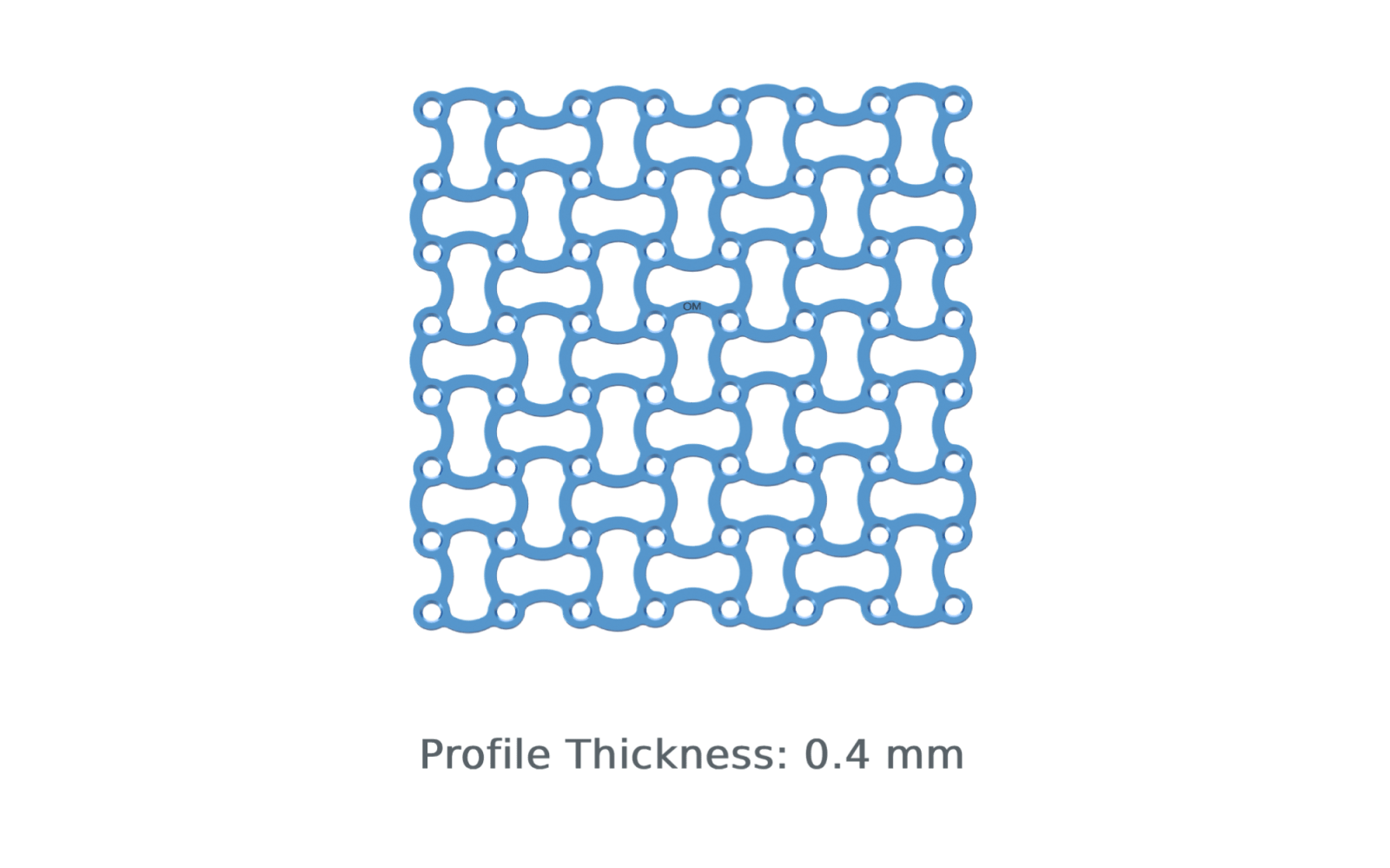

Titanium mesh Plates
Profile Thickness: 0.4 mm
Material: Titanium Grade II & S.S. 316 L
|
Reference
|
Size
|
|---|---|
|
078.1511
|
25 x 25 mm
|
|
078.1522
|
50 x 50 mm
|
|
078.1524
|
50 x 100 mm
|
|
078.1526
|
50 x 150 mm
|
|
078.1528
|
50 x 200 mm
|
|
078.1544
|
100 x 100 mm
|
|
078.1546
|
100 x 150 mm
|

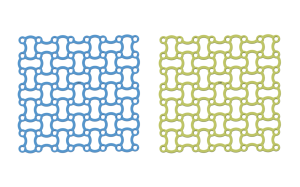

Titanium Ezy mesh Plates
Profile Thickness: 0.4 mm / 0.6 mm
Material: Titanium Grade II
Profile Thickness: 0.4 mm
|
Reference
|
Size
|
|---|---|
|
44.411
|
25 x 25 mm
|
|
44.422
|
50 x 50 mm
|
|
44.424
|
50 x 100 mm
|
|
44.426
|
50 x 150 mm
|
|
44.444
|
100 x 100 mm
|
|
44.446
|
100 x 150 mm
|
|
44.466
|
150 x 150 mm
|
Profile Thickness: 0.6 mm
|
Reference
|
Size
|
|---|---|
|
44.611
|
25 x 25 mm
|
|
44.622
|
50 x 50 mm
|
|
44.624
|
50 x 100 mm
|
|
44.626
|
50 x 150 mm
|
|
44.644
|
100 x 100 mm
|
|
44.646
|
100 x 150 mm
|
|
44.666
|
150 x 150 mm
|

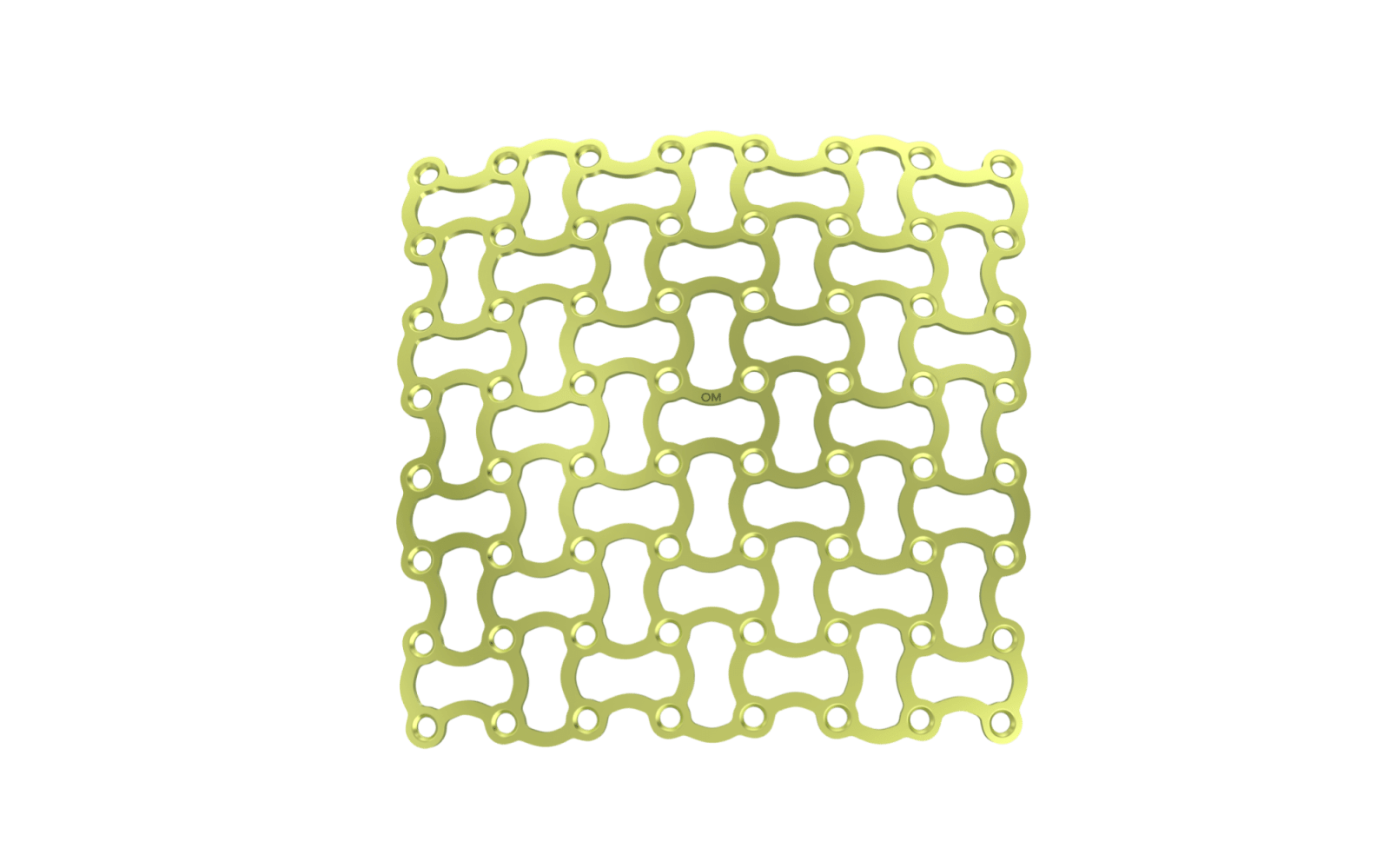

Titanium Ezy mesh Plates - pre contoured
Profile Thickness: 0.6 mm
Material: Titanium Grade II
|
Reference
|
Size
|
|---|---|
|
45.622
|
50 x 50 mm
|
|
45.644
|
100 x 100 mm
|
|
45.666
|
150 x 150 mm
|

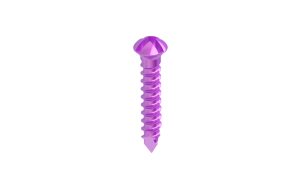

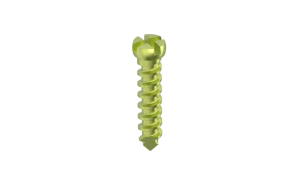

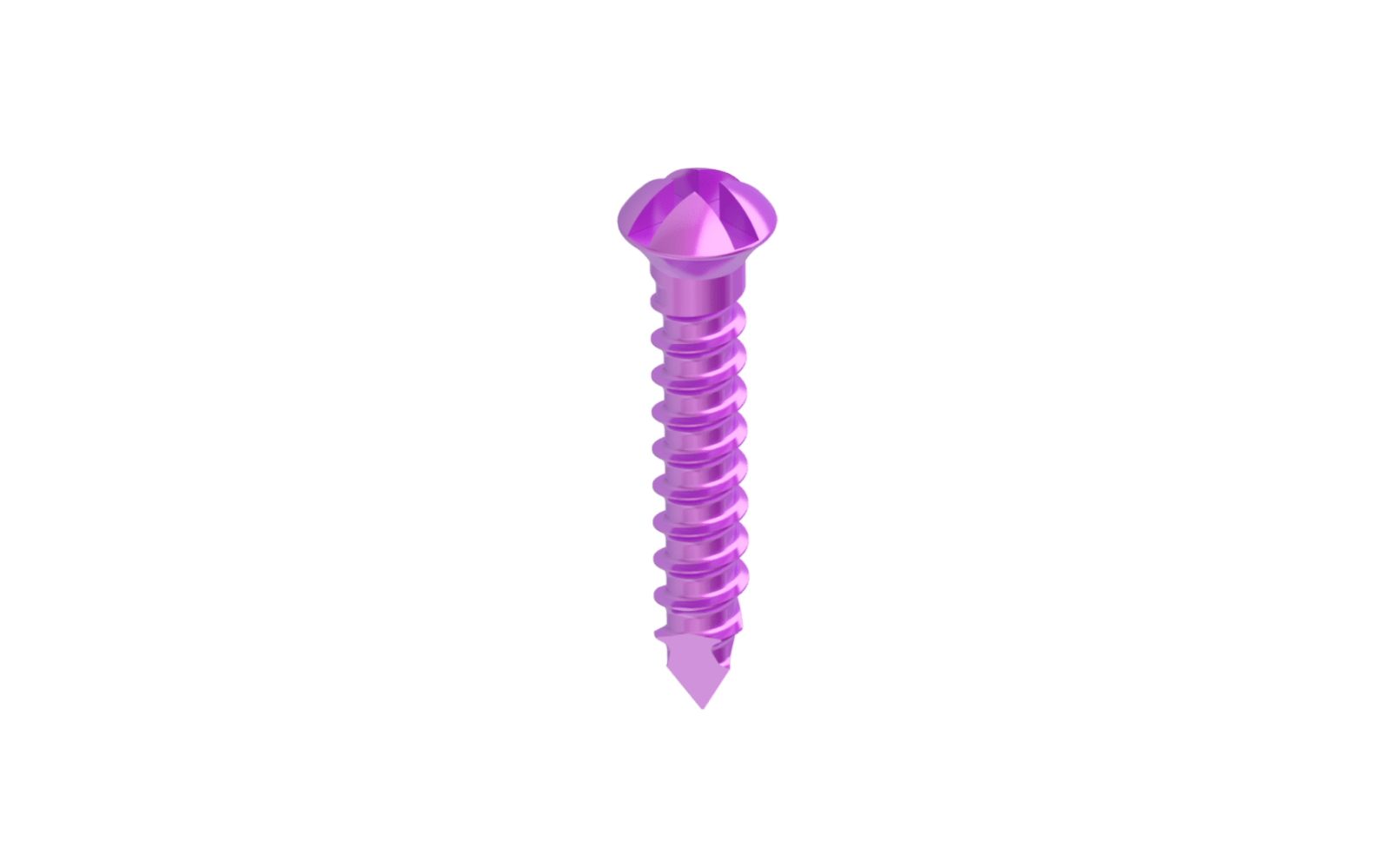

Titanium Screws Cross Drive
Thd. Dia : 1.5 mm
Drill Size : 1.0 mm
Material: Titanium Grade V
|
Reference
|
Size
|
|---|---|
|
088.154
|
4 mm
|
|
088.155
|
5 mm
|
|
088.156
|
6 mm
|
|
088.157
|
7 mm
|
|
088.158
|
8 mm
|
|
088.159
|
9 mm
|
|
088.1510
|
10 mm
|

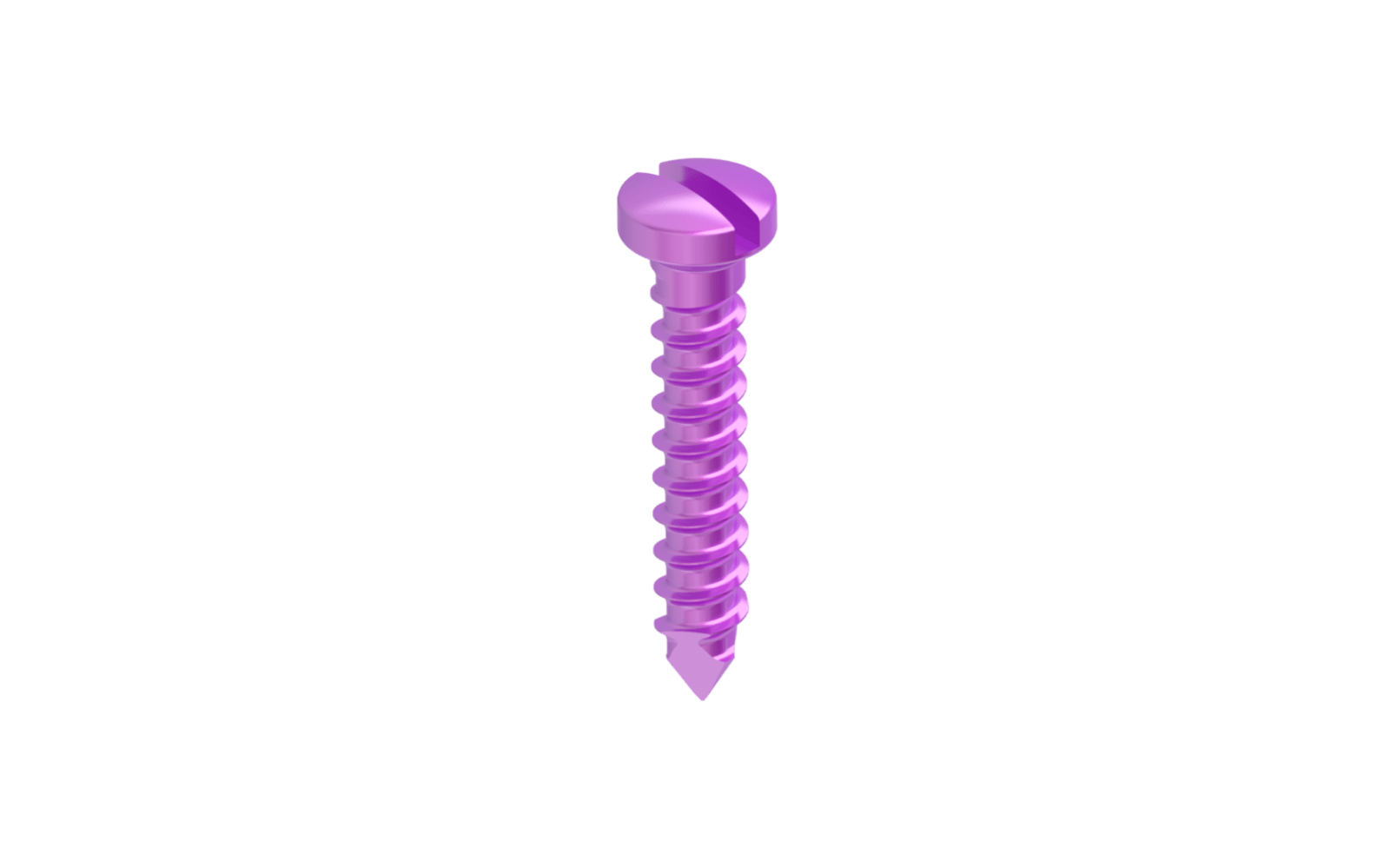

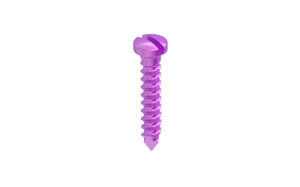

Titanium Screws Single Slotted
Thd. Dia : 1.5 mm
Drill Size : 1.0 mm
Material: Titanium Grade V & S.S. 316 L
|
Reference
|
Size
|
|---|---|
|
079.154
|
4 mm
|
|
079.155
|
5 mm
|
|
079.156
|
6 mm
|
|
079.157
|
7 mm
|
|
079.158
|
8 mm
|
|
079.159
|
9 mm
|
|
079.1510
|
10 mm
|
Titanium Screws Emergency Cross Drive
Thd. Dia : 1.8 mm
Drill Size : 1.3 mm
Material: Titanium Grade V
|
Reference
|
Size
|
|---|---|
|
089.186
|
6 mm
|
|
089.187
|
7 mm
|
|
089.188
|
8 mm
|
|
089.189
|
9 mm
|
|
089.1810
|
10 mm
|

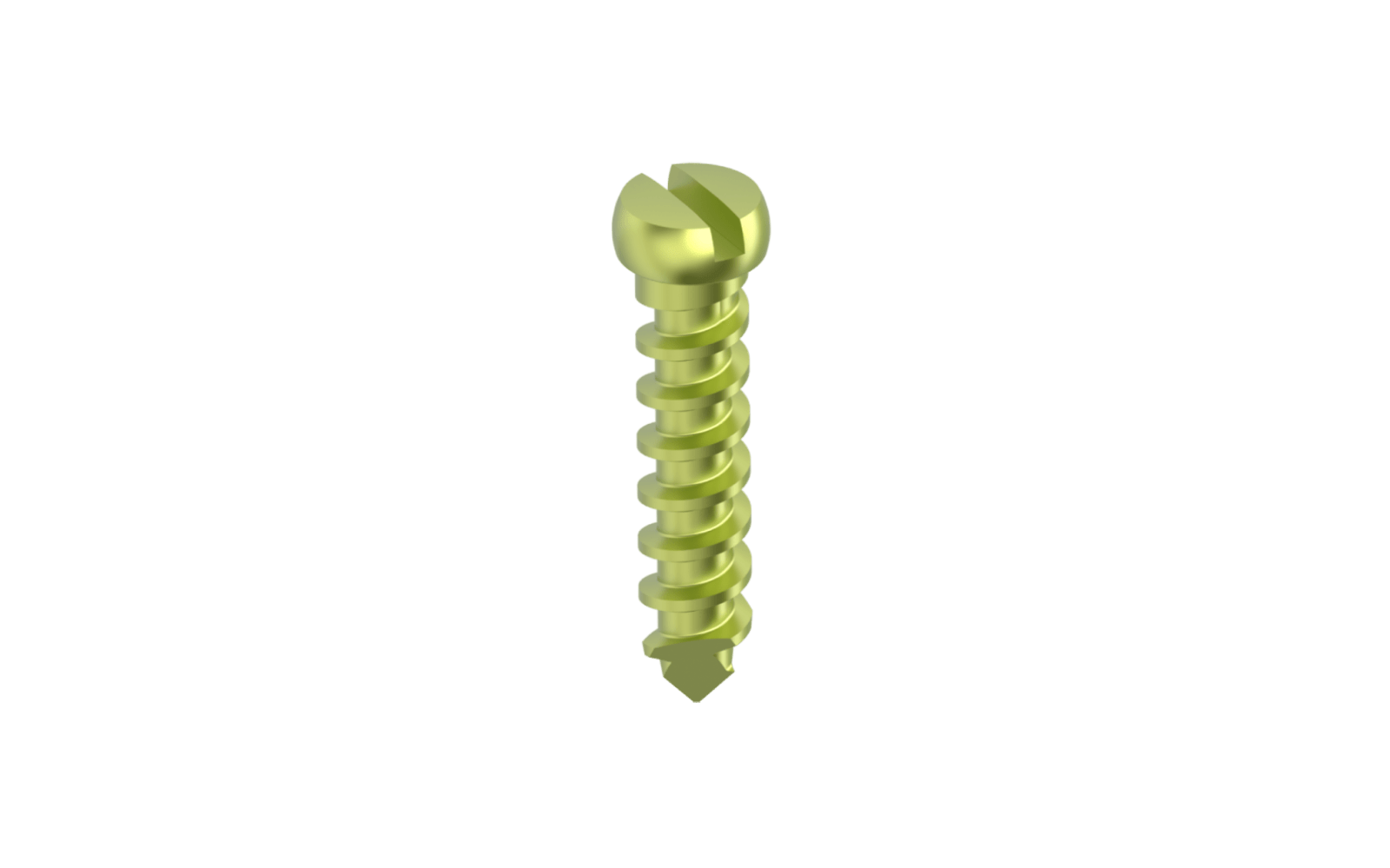

Titanium Screws Emergency Single Slotted
Thd. Dia : 1.8 mm
Drill Size : 1.3 mm
Material: Titanium Grade V & S.S. 316 L
|
Reference
|
Size
|
|---|---|
|
082.186
|
6 mm
|
|
082.187
|
7 mm
|
|
082.188
|
8 mm
|
|
082.189
|
9 mm
|
|
082.1810
|
10 mm
|

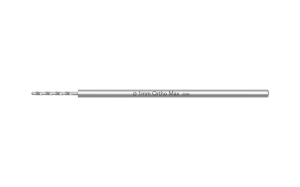

S.S. Drill bits for Micromotors
Material: S.S. 316 L
|
Reference
|
Size
|
|---|---|
|
411.100
|
1.0mm x 12mm x 65mm
|
|
411.104L
|
1.0mm x 12mm x 100mm
|
S.S. Drill bits for Micromotors - Short Flute
Material: S.S. 316 L
|
Reference
|
Size
|
|---|---|
|
411.104
|
1.0mm x 4mm x 65mm
|
|
411.106
|
1.0mm x 6mm x 65mm
|
|
411.108
|
1.0mm x 8mm x 65mm
|
|
411.110
|
1.0mm x 10mm x 65mm
|
